RLT 140H331KV (80238) - Snapper 33" Lawn Tractor, 14hp (1991) Hood, Bumper, Headlights Parts Diagram

33" Lawn Tractor, 14hp

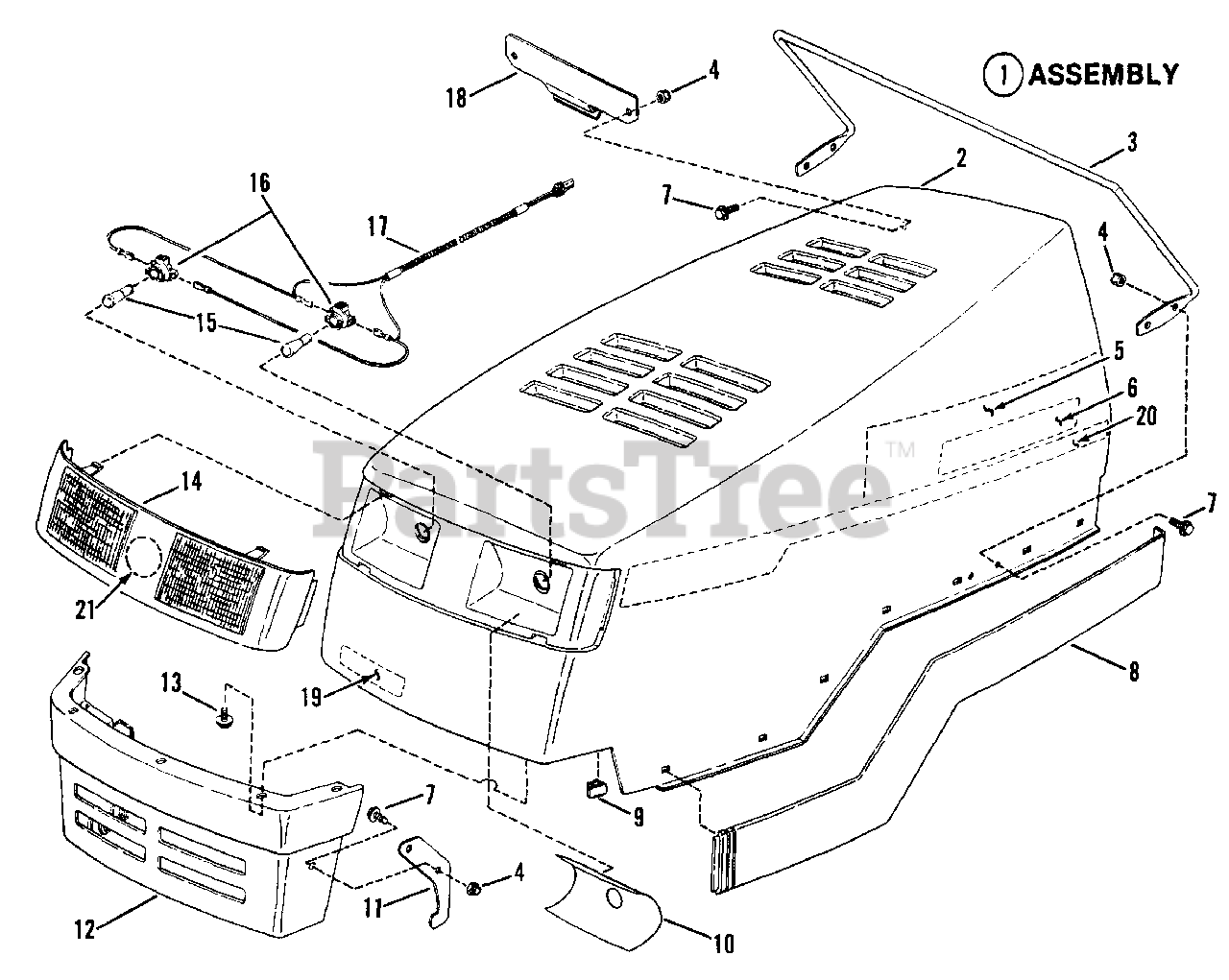

Hood, Bumper, Headlights Parts Diagram

  • Title

1

Snapper 7063298

KIT, Hood Assembly, Sloped Mozart
(Superseded to 7063298YP)

Note: Was 61082 or 61383 (Includes 2 thru 18)

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7019411

HOOD (No longer available, use kit 7063298)

Note: Was 19411

$

$

Currently unavailable

3

Snapper 7016766

ROD, Hood Latch
(Superseded to 7016766YP)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 7076978

NUT, 1/4-20 Hex Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7017787

HEAT SHIELD, Hood 3" x 5" (No longer available)

Note: Was 17787

$

$

Currently unavailable

6

Snapper 7016974

DECAL-SNAPPER, Molded Logo (No longer available)

Note: Was 16974 or 36438 or 24980

$

$

Currently unavailable

7

Snapper 7090999

SCREW, 1/4-20 x 5/8" Torx, Truss Head
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7019412

BUMPER (R.H.) (No longer available)

Note: Was 19412

$

$

Currently unavailable

8

Snapper 7019413

BUMPER (L.H. Shown) (No longer available)

Note: Was 19413

$

$

Currently unavailable

9

Snapper 7012691

CLIP, Wiring Harness .31"
(Superseded to 7012691YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7017174

DECAL, Reflect (R.H.)
(Superseded to 7017174YP)

$7.99

$

Usually ships in 2-12 days

0

10

Snapper 7017175

DECAL, Reflect (L.H. Shown)
(Superseded to 7017175YP)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7033265

BRACKET, Latch Hook
(Superseded to 7033265YP)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7019414

BUMPER, Front (No longer available)

Note: Was 19414

$

$

Not available

13

Snapper 7091106

SCREW, #12 x 1/2"
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7024893

LENS, Clear Bezel
(Superseded to 7024893YP)

Note: Was 19415

$45.99

$

Usually ships in 2-12 days

0

15

Snapper 7016756

BULB, Headlights, 1156

$

$

Not available

16

Snapper 7016757

SOCKET, Headlight Bulb

$

$

Not available

17

Snapper 7016765

HARNESS, Headlight Wiring

$

$

Not available

18

Snapper 7017359

CLIP, Hood Latch
(Superseded to 7017359YP)

$33.99

$

Usually ships in 2-12 days

0

19

Snapper 7022968

DECAL-SNAPPER, Molded Logo 4" - Blue (No longer available)

Note: Was 22968 (LT140H33 & LT140H41)

$

$

Not available

19

Snapper 7022969

DECAL-SNAPPER, Molded Logo 4" - Green

Note: (RLT140H33)

$

$

Not available

20

Snapper 7022986

DECAL, 1550LX - Blue (R.H.)(No longer available)

Note: Was 22986 (LT140H33 & LT140H41)

$

$

Currently unavailable

20

Snapper 7022987

DECAL, 1550LX - Blue (L.H. Shown)(No longer available)

Note: Was 22987 (LT140H33 & LT140H41)

$

$

Currently unavailable

20

Snapper 7022988

DECAL, 1550RX - Green (R.H.)

Note: (RLT140H33)

$

$

Currently unavailable

20

Snapper 7022989

DECAL, 1550RX - Green (L.H. Shown)

Note: (RLT140H33)

$

$

Currently unavailable

21

Snapper 7022975

DECAL, Convertible - Blue

Note: (LT140H33)

$

$

Not available

21

Snapper 7022977

DECAL, Twin-Turbo - Blue
(Superseded to 7022977YP)

Note: (LT140H41)

$8.49

$

Usually ships in 2-12 days

0

21

Snapper 7022972

DECAL, Recycling - Green (No longer available)

Note: Was 22972 (RLT140H33)

$

$

Currently unavailable
