RLT 140H331KV (80238) - Snapper 33" Lawn Tractor, 14hp (1991) Engine, Engine Base & Drive Parts Parts Diagram

33" Lawn Tractor, 14hp

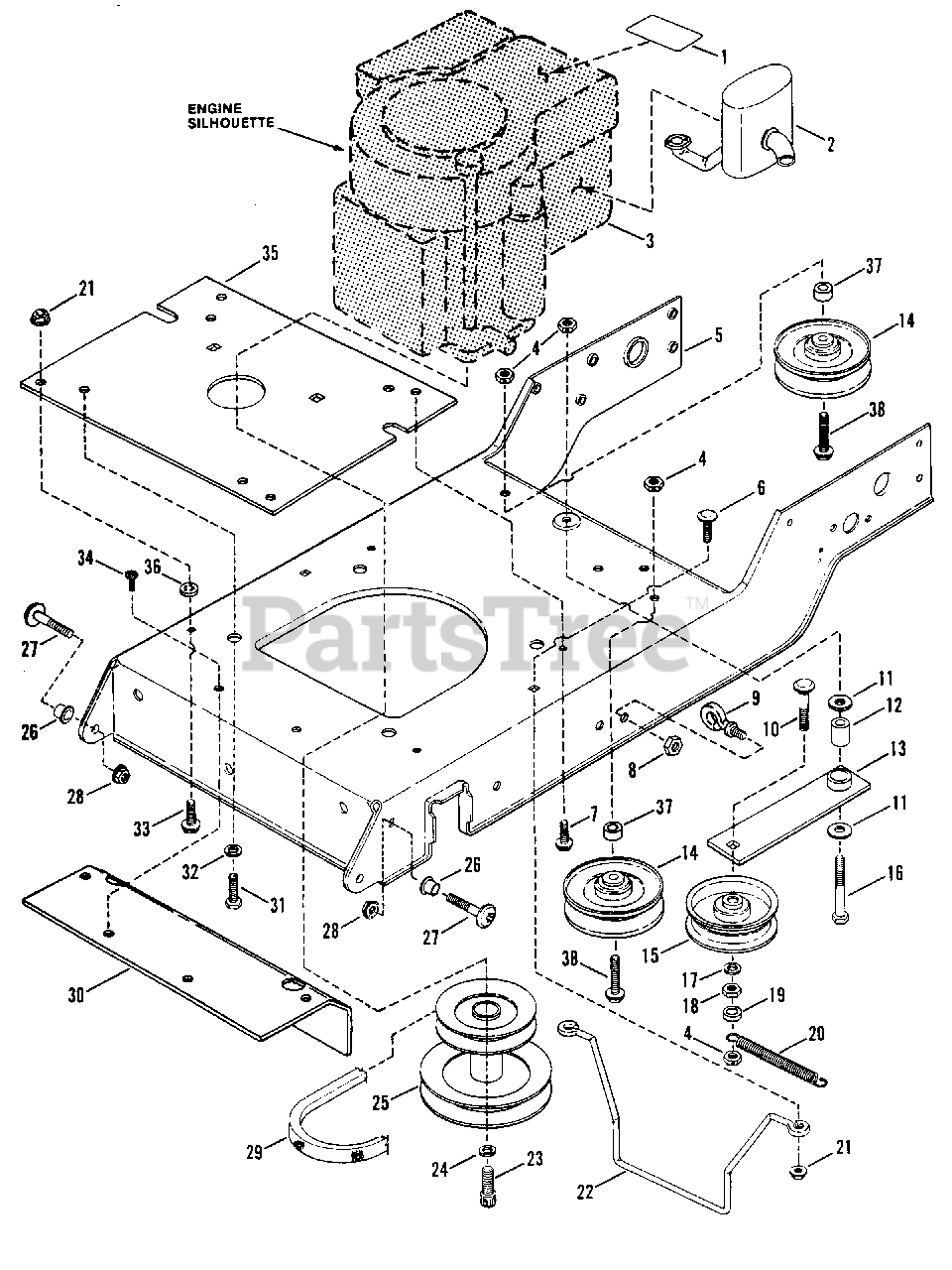

Engine, Engine Base & Drive Parts Parts Diagram

  • Title

1

Snapper 7017358

DECAL, Engine 14 HP OHV

$

$

Not available

2

Snapper 7017313

MUFFLER, Exhaust

$

$

Currently unavailable

3

* ENGINE, Kohler Model CV14S, Spec. PS1431

$

$

Not available

4

Snapper 7091585

NUT, 3/8-16 Hex, Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

5

Snapper 7033145

BASE, Engine Kohler

$

$

Not available

6

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 16

0

7

Snapper 7090595

BOLT, 5/16-18 x 3/4" Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

8

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

9

Snapper 7014438

EYE-BOLT
(Superseded to 7014438YP)

$8.49

$

Usually ships in 2-12 days

0

10

Snapper 7091008

BOLT, 3/8-16 x 2 1/2" Short Neck Carriage
(Superseded to 7091008YP)

$4.99

$

In Stock, only 1 left!

0

11

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

12

Snapper 7044752

BUSHING, Idler Arm .750 OD x .406 ID x .25 L
(Superseded to 7044752YP)

Note: Was 22062

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 7040565

ARM, Idler
(Superseded to 7040565YP)

$46.99

$

Usually ships in 2-12 days

0

14

Snapper 7011029

PULLEY, Idler, 4" O.D.
(Superseded to 7011029YP)

$23.99

$

In Stock, only 1 left!

0

15

Snapper 7023199

PULLEY, Idler, 3 3/4" O.D.
(Superseded to 7023199YP)

$

$

Not available

16

Snapper 7090629

BOLT, 3/8-16 x 2 1/4 Hex
(Superseded to 7090629YP)

$2.49

$

Usually ships in 2-12 days

0

17

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

18

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7014527

SPACER .623 OD x .38 ID x .25 L
(Superseded to 7014527YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7011807

SPRING, Idler Arm
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 18

0

21

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7019042

GUIDE, Belt

$7.49

$

Usually ships in 2-12 days

0

23

Snapper 7090836

SCREW, 7/16-20 Socket, Hex Head Cap

$

$

Not available

24

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7019036

PULLEY ASSEMBLY, Engine
(Superseded to 7019036YP)

$146.99

$

Usually ships in 2-12 days

0

26

Snapper 7012306

BUSHING
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

27

Snapper 7023198

SCREW, Shoulder, 3/8-16 x 1 5/8"

$

$

Not available

28

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7016724

V-BELT, Traction Drive, (111.6" EL) LT140H33, LT140H41, & RLT140H33
(Superseded to 7016724YP)

$57.99

$

In Stock, only 1 left!

0

30

Snapper 7033100

AXLE SUPPORT (No longer available)

Note: Was 33100

$

$

Currently unavailable

31

Snapper 7077692

BOLT, M8-1.25 x 25MM Hex Head
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7090661

BOLT, 5/16-18 x 1" Hex Flange Lock

$

$

Not available

34

Snapper 7091000

SCREW, 5/16-18 x 7/8" Truss Head Torx
(Superseded to 1960086SM)

Note: Was 91001

$4.99

$

In Stock, only 2 left!

0

35

Snapper 7033424

SPACER, Kohler Engine
(Superseded to 7033424YP)

$55.99

$

Usually ships in 2-12 days

0

36

Snapper 7011791

RETAINER 5/16"
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7016719

SPACER .750 x .39 ID x .5 L
(Superseded to 7016719YP)

$7.49

$

Usually ships in 2-12 days

0

38

Snapper 7091580

BOLT, 3/8-16 x 1 3/4" Hex Flange Lock
(Superseded to 703812)

Note: Was 90701

$4.49

$

Usually ships in 2-12 days

0
