RLT 125G38AKV (80380) - Snapper 38" Lawn Tractor, 12.5hp Seat, Support Components Parts Diagram

38" Lawn Tractor, 12.5hp

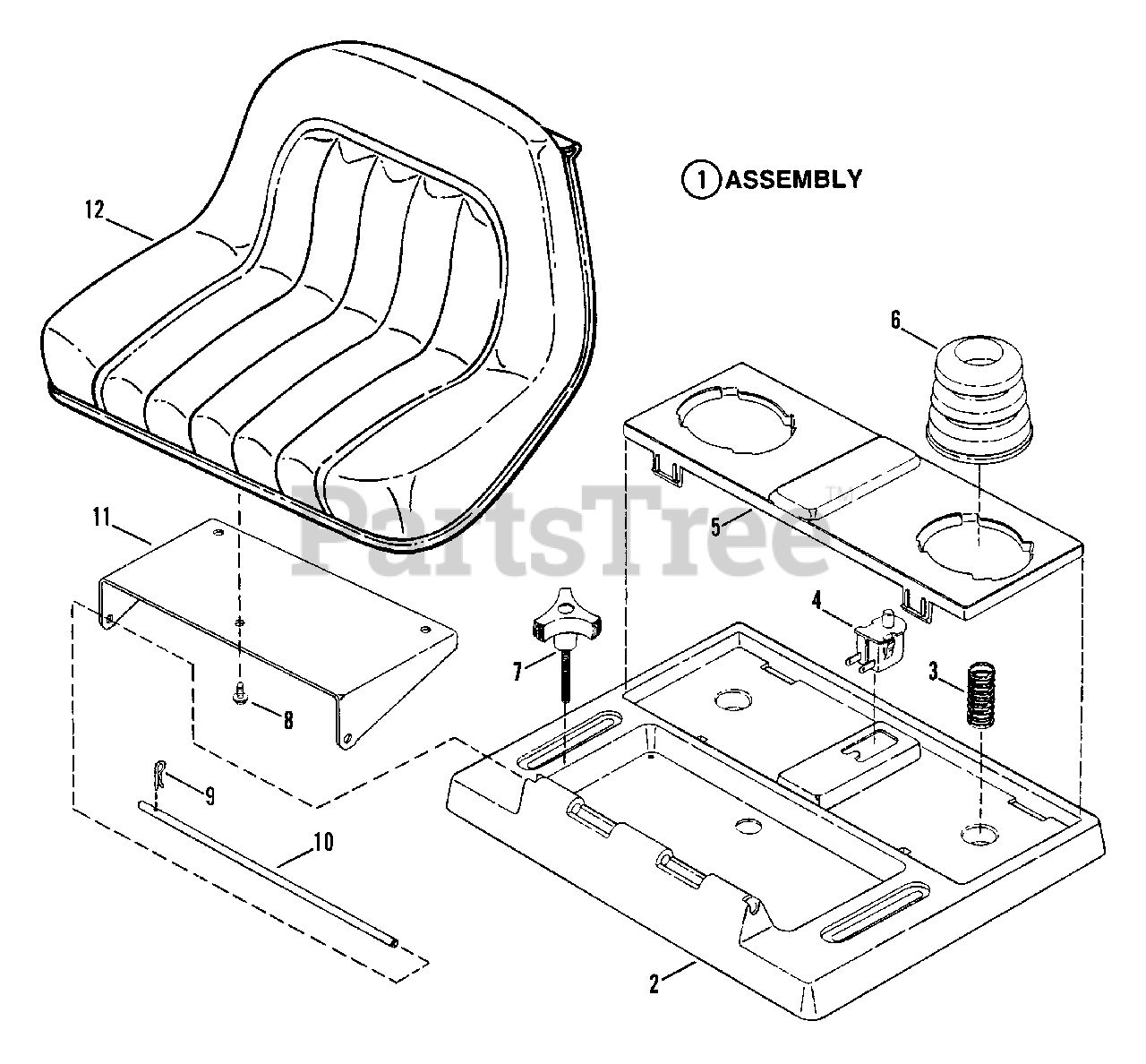

Seat, Support Components Parts Diagram

  • Title

1

Snapper 7059215

ASSEMBLY, Seat Support
(Superseded to 7059215YP)

Note: Was 52606 (Includes 2, 4, 5, & 2 item 3)

$186.99

$

In Stock, only 2 left!

0

2

Snapper 7017852

SUPPORT, Seat
(Superseded to 7059215YP)

Note: Was 17852

$186.99

$

In Stock, only 2 left!

0

3

Snapper 7073266

SPRING
(Superseded to 7073266YP)

Note: Was 22759

$5.99

$

In Stock, Qty 20+

0

4

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

5

Snapper 7028580

HOLDER, Cushion
(Superseded to 7028580YP)

Note: Was 17851

$50.99

$

In Stock, only 4 left!

0

6

Snapper 7019109

CUSHION, Seat
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

7

Snapper 7017875

KNOB, Seat Adjustment
(Superseded to 7017875YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

9

Snapper 7012431

PIN, Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

10

Snapper 7074452

ROD, Seat Hinge
(Superseded to 7074452YP)

Note: Was 33435

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 7033318

BRACKET, Seat Support

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7028621

SEAT, Operator's
(Superseded to 7075063YP)

Note: Was 24826

$301.99

$

Usually ships in 2-12 days

0
