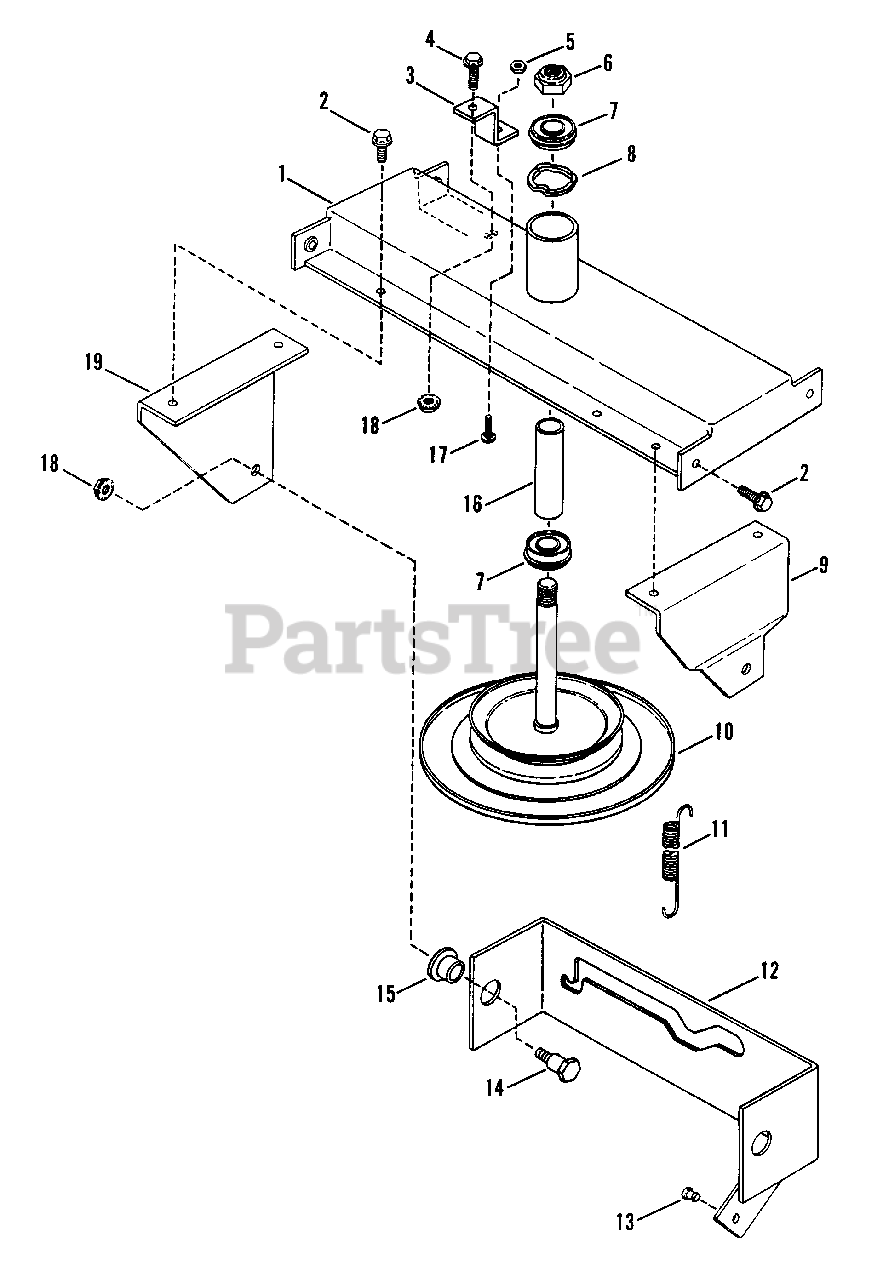

RLT 115D331B (80232) - Snapper 33" Lawn Tractor, 11.5hp Disc Drive & Clutch Yoke Parts Diagram

33" Lawn Tractor, 11.5hp

Disc Drive & Clutch Yoke Parts Diagram

  • Title

1

Snapper 7049764

SUPPORT ASSEMBLY, Disc Drive
(Superseded to 7049764YP)

$216.99

$

Usually ships in 2-12 days

0

2

Snapper 7090858

SCREW, 5/16-18 x 1/2' Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

3

Snapper 7051958

YOKE STOP ASSEMBLY
(Superseded to 7051958YP)

$52.99

$

Usually ships in 2-12 days

0

4

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

5

Snapper 7090197

JAM-NUT, 5/16-18 Hex
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7091006

NUT, 5/8-18 Hex Lock
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

8

Snapper 7016233

WASHER, Wave

$10.99

$

Usually ships in 2-12 days

0

9

Snapper 7038385

BRACKET, Yoke Pivot, L.H.

$

$

Not available

10

Snapper 7017021

DISC-DRIVE ASSEMBLY
(Superseded to 7017021YP)

$122.99

$

Usually ships in 2-12 days

0

11

Snapper 7014659

SPRING
(Superseded to 7014659YP)

$15.99

$

Usually ships in 2-12 days

0

12

Snapper 7041131

YOKE, Clutch
(Superseded to 7041131YP)

$51.99

$

Usually ships in 2-12 days

0

13

Snapper 7016353

BEARING, Nyliner
(Superseded to 7016353YP)

$3.49

$

In Stock, only 1 left!

0

14

Snapper 7014664

BOLT, 5/16-18 x 1 5/16", Shoulder
(Superseded to 7014664SM)

$1.99

$

Usually ships in 2-12 days

0

15

Snapper 7013321

BEARING, Yoke
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7022074

SPACER

$

$

Not available

17

Snapper 7090192

BOLT, 5/16-18 x 1 1/2" Carriage
(Superseded to 7090192YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7038384

BRACKET, Yoke Pivot, R.H.

$

$

Not available
