RLK5000 A (RZBC) - Honda Rear Hydraulic Lift, Made in Japan (SN: RZBC-1100001 - RZBC-9999999) HYDRAULIC KIT (1) Parts Diagram

Rear Hydraulic Lift, Made in Japan

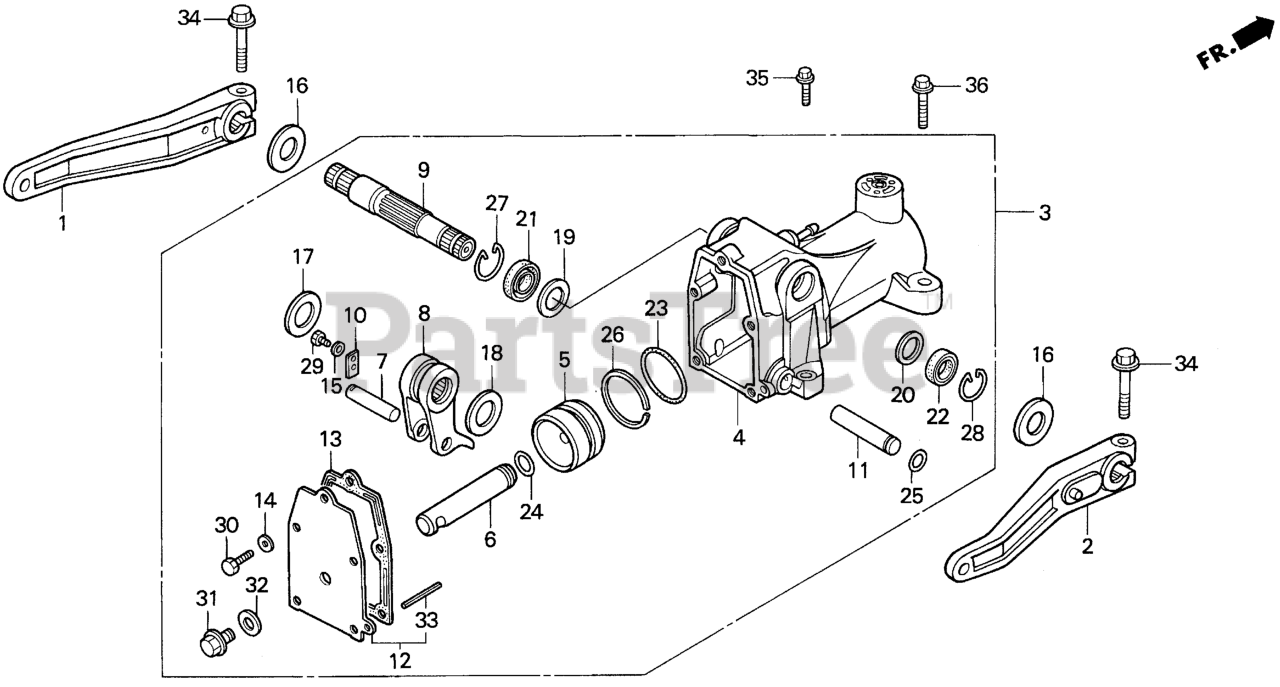

HYDRAULIC KIT (1) Parts Diagram

  • Title

1

Honda 50613-752-000

ARM, L. RR. LIFT

Note: (Optional)

$

$

Not available

2

Honda 50619-752-000

ARM, R. RR. LIFT

Note: (Optional)

$

$

Not available

3

Honda 56500-752-020

CYLINDER ASSY., HYDRAULIC Use up to Frame SN 2500167.

Note: (Optional)

$

$

Not available

4

Honda 56510-752-010

CYLINDER, HYDRAULIC

Note: (Optional)

$1032.99

$

Usually ships in 3-6 days

0

5

Honda 56521-752-000

PISTON, HYDRAULIC (60MM)

Note: (Optional)

$

$

Not available

6

Honda 56531-752-000

ROD, CONNECTING

Note: (Optional)

$

$

Not available

7

Honda 56532-752-000

PIN, CONNECTING ROD

Note: (Optional)

$

$

Not available

8

Honda 56533-752-020

ARM, HYDRAULIC CYLINDER

Note: (Optional)

$

$

Not available

9

Honda 56537-752-000

SHAFT, HYDRAULIC CYLINDER

Note: (Optional)

$

$

Not available

10

Honda 56538-752-010

PLATE, CONNECTING ROD PIN

Note: (Optional)

$

$

Not available

11

Honda 56541-752-000

SHAFT, STOPPER

Note: (Optional)

$

$

Not available

12

Honda 56546-752-000

COVER, CYLINDER

Note: (Optional)

$

$

Not available

13

Honda 56547-769-750

GASKET, HYDRAULIC CYLINDER COVER

Note: (Optional)

$

$

Not available

14

Honda 90405-463-000

WASHER (8MM)

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90411-744-000

WASHER, CONICAL SPRING (6MM) Use up to Frame SN 3500085.

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 90445-752-000

WASHER, THRUST (25.5X50X5)

Note: (Optional)

$

$

Not available

17

Honda 90505-752-000

WASHER, PLAIN (INNER) (28.5MM)

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 90506-752-000

WASHER, PLAIN (INNER) (25.5MM)

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 90507-752-000

WASHER, PLAIN (OUTER) (30.5MM)

Note: (Optional)

$9.49

$

In Stock, only 1 left!

0

20

Honda 90508-752-000

WASHER, PLAIN (OUTER) (25.5MM)

Note: (Optional)

$9.49

$

In Stock, only 1 left!

0

21

Honda 91251-752-000

OIL SEAL (30X44X8)

Note: (Optional)

$8.99

$

In Stock, only 2 left!

0

22

Honda 91252-752-000

OIL SEAL (25X38X9)

Note: (Optional)

$9.49

$

In Stock, only 2 left!

0

23

Honda 91351-752-003

O-RING, HYDRAULIC CYLINDER

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 91361-752-000

O-RING (17X3.5)

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91311-PH7-003

SEE PART DETAILS - PRI; O-RING (13.8X2.4) (NOK)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 91391-752-003

RING, BACK-UP

Note: (Optional)

$

$

Not available

27

Honda 91410-752-000

RING, STOPPER (49)

Note: (Optional)

$8.99

$

In Stock, only 1 left!

0

28

Honda 91411-752-000

RING, STOPPER (43)

Note: (Optional)

$8.99

$

In Stock, only 1 left!

0

29

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12) (Honda Code 3591500).

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 92101-08022-0H

BOLT, HEX. (8X22)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 92800-14000

BOLT, DRAIN PLUG (14MM) (Honda Code 0171777).

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

32

Honda 94109-14000

WASHER, DRAIN PLUG (14MM) (Honda Code 0171876).

Note: (Optional)

$0.99

$

In Stock, Qty 20+

0

33

Honda 94305-60402

PIN, SPRING (6X40)

Note: (Optional)

$2.99

$

In Stock, only 2 left!

0

34

Honda 95701-10040-08

BOLT, FLANGE (10X40)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

35

Honda 95701-10055-08

BOLT, FLANGE (10X55)

Note: (Optional)

$3.99

$

In Stock, only 2 left!

0

36

Honda 95701-12050-08

BOLT, FLANGE (12X50)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0
