RL 1844 B - Electrolux/AYP Lawn Tractor (1991) TRANSAXLE Parts Diagram

Lawn Tractor

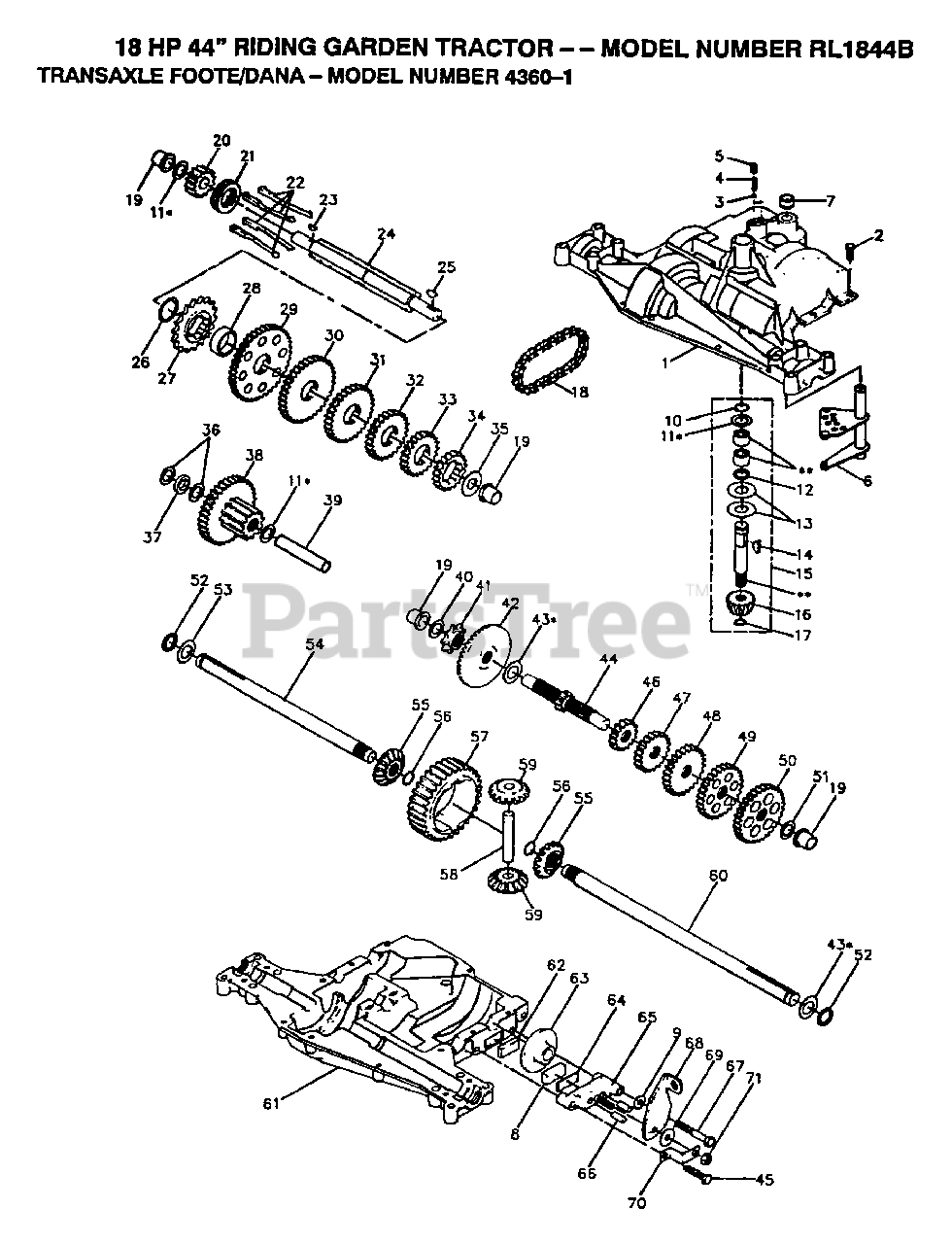

TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 124643X

HOUSING UPPER

$

$

Not available

2

Electrolux/AYP 2274J

SUB= 74760412

$

$

Not available

3

Electrolux/AYP 68003

"DETENT, BALL(68003)"
(Superseded to 532068003)

$

$

Not available

4

Electrolux/AYP 105904X

"SPRING, DETENT LT"
(Superseded to 583647001)

$

$

Not available

5

Electrolux/AYP 105905X

"SCREW, SET LT"
(Superseded to 583647101)

$

$

Not available

6

$

$

Not available

7

Electrolux/AYP 108727X

SUB= 108776X
(Superseded to 583655601)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 120951X

PUCK T
(Superseded to 532120951)

$

$

Not available

9

Electrolux/AYP 120993X

WASHER T
(Superseded to 583664001)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 2267J

RETAINING RING LT
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

11

Electrolux/AYP 3413J

WASHER
(Superseded to 582862601)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 2233J

WASHER 020
(Superseded to 583729501)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 2232J

WASHER 025
(Superseded to 532002232)

$

$

Not available

Electrolux/AYP 2231J

WASHER 031
(Superseded to 583729401)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 2230J

WASHER 035
(Superseded to 583729301)

$

$

Not available

Electrolux/AYP 2229J

WASHER 040
(Superseded to 583729201)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 2228J

WASHER 045
(Superseded to 583729101)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 2227J

WASHER 050
(Superseded to 583729001)

$

$

Not available

Electrolux/AYP 2226J

WASHER 060
(Superseded to 583728901)

$

$

Not available

Electrolux/AYP 105906X

"WASHER, PLAIN LT"
(Superseded to 583647201)

$6.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 6725J

O-RING T
(Superseded to 583772201)

$2.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 120415X

WASHER T
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 2257J

WOODRUFF KEY

$

$

Not available

15

Electrolux/AYP 106846X

SUB= 167148
(Superseded to 167148)

$

$

Not available

16

Electrolux/AYP 106095X

SUB= 95-8060-6F
(Superseded to 167148)

$

$

Not available

17

Electrolux/AYP 105909X

"RING,RETAINING LT"
(Superseded to 583647301)

$5.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 105910X

"CHAIN,24 PTCH LT"
(Superseded to 532105910)

$

$

Not available

19

Electrolux/AYP 105911X

BEARING.FLNG.5510
(Superseded to 532105911)

$

$

Not available

20

Electrolux/AYP 105912X

"GEAR, SPUR LT"

$

$

Not available

21

$

$

Not available

22

Electrolux/AYP 120468X

KEY T
(Superseded to 532120468)

$

$

Not available

$

$

Not available

24

Electrolux/AYP 124638X

SHAFT INTERMEDIAT

$

$

Not available

25

Electrolux/AYP 2244J

WOODRUFF KEY

$

$

Not available

26

Electrolux/AYP 105916X

"RING,RETAINING LT"
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 120470X

SPROCKET 18T T
(Superseded to 532120470)

$

$

Not available

28

Electrolux/AYP 110070X

SPACER YT
(Superseded to 583658801)

$7.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 109253X

GEAR SPUR 40T

$

$

Not available

30

$

$

Not available

31

Electrolux/AYP 124644X

GEAR SPUR 30T
(Superseded to 583670301)

$66.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 108980X

GEAR 25T LT
(Superseded to 583656801)

$46.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 120406X

GEAR SPUR 22 TT
(Superseded to 583662001)

$26.99

$

Usually ships in 3-10 days

0

34

$

$

Not available

35

Electrolux/AYP 105925X

"WASHER, PLAIN LT"
(Superseded to 583647501)

$

$

Not available

36

Electrolux/AYP 2232J

WASHER 025
(Superseded to 532002232)

$

$

Not available

37

Electrolux/AYP 108978X

SPACER
(Superseded to 532108978)

$

$

Not available

38

Electrolux/AYP 108981X

GEAR COMB LT

$

$

Not available

39

Electrolux/AYP 124369X

SUB= 124639X

$

$

Not available

40

Electrolux/AYP 3422J

WASHER
(Superseded to 532003422)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 105928X

SPROCKET 9T LT
(Superseded to 532105928)

$

$

Not available

42

Electrolux/AYP 106605X

SUB= 167148
(Superseded to 167148)

$

$

Not available

43

Electrolux/AYP 108983X

WASHER LT
(Superseded to 583656901)

$

$

Not available

Electrolux/AYP 105930X

"WASHER, PLAIN LT"
(Superseded to 583647601)

$

$

Not available

Electrolux/AYP 105931X

"WASHER, PLAIN LT"

$

$

Not available

Electrolux/AYP 105932X

"WASHER, PLAIN LT"
(Superseded to 583647701)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 3417J

WASHER
(Superseded to 584465201)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 106097X

"WASHER, PLAIN LT"
(Superseded to 583648301)

$2.99

$

In Stock, only 1 left!

0

Electrolux/AYP 2264J

WASHER 031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 106098X

"WASHER, PLAIN LT"
(Superseded to 583648401)

$

$

Not available

$

$

Not available

Electrolux/AYP 106586X

WASHER PLAIN
(Superseded to 583651501)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 106587X

"WASHER, PLAIN LT"
(Superseded to 583651601)

$2.99

$

Usually ships in 3-10 days

0

44

$

$

Not available

45

Electrolux/AYP 106596X

"SCREW, TAPPING LT"

$

$

Not available

46

$

$

Not available

47

Electrolux/AYP 124641X

GEAR SPUR 20T
(Superseded to 583670201)

$21.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 106589X

"GEAR, SPUR 25T LT"
(Superseded to 583651701)

$33.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 120408X

GEAR 28T T
(Superseded to 583662101)

$47.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 105937X

"GEAR, SPUR 31T LT"

$38.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 2226J

WASHER 060
(Superseded to 583728901)

$

$

Not available

52

Electrolux/AYP 2272J

SUB= 134401

$

$

Not available

53

Electrolux/AYP 2263J

WASHER 062
(Superseded to 583729601)

$6.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 120474X

SUB= 154658
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 120409X

GEAR LT
(Superseded to 532169651)

$

$

Not available

56

Electrolux/AYP 105941X

"RING,RETAINING LT"
(Superseded to 583647801)

$

$

Not available

57

Electrolux/AYP 110071X

SUB= 120478X

$

$

Not available

58

Electrolux/AYP 120952X

SHAFT T
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 106592X

"GEAR,MITER 15T YT"

$

$

Not available

60

Electrolux/AYP 120475X

SUB= 154659
(Superseded to 582982401)

$265.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 124642X

"HOUSING, LOWER"

$161.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 120961X

PUCK T
(Superseded to 532120961)

$

$

Not available

63

Electrolux/AYP 7294J

BRAKE DISC. T
(Superseded to 532007294)

$

$

Not available

64

Electrolux/AYP 108989X

SPACER LT
(Superseded to 532108989)

$

$

Not available

65

Electrolux/AYP 120953X

SUB= 918120953X
(Superseded to 532164670)

$

$

Not available

66

Electrolux/AYP 120954X

PIN T
(Superseded to 532120954)

$

$

Not available

67

Electrolux/AYP 120955X

SCREW T
(Superseded to 532160953)

$8.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 108992X

LEVER ACTUATOR
(Superseded to 532108992)

$

$

Not available

69

Electrolux/AYP 108996X

WASHER LT
(Superseded to 583657101)

$6.99

$

In Stock, Qty 9

0

$2.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 120416X

SUB= 126976X

$

$

Not available
