RL 1444 AR - Electrolux/AYP Lawn Tractor ENGINE/B&S Parts Diagram

Lawn Tractor

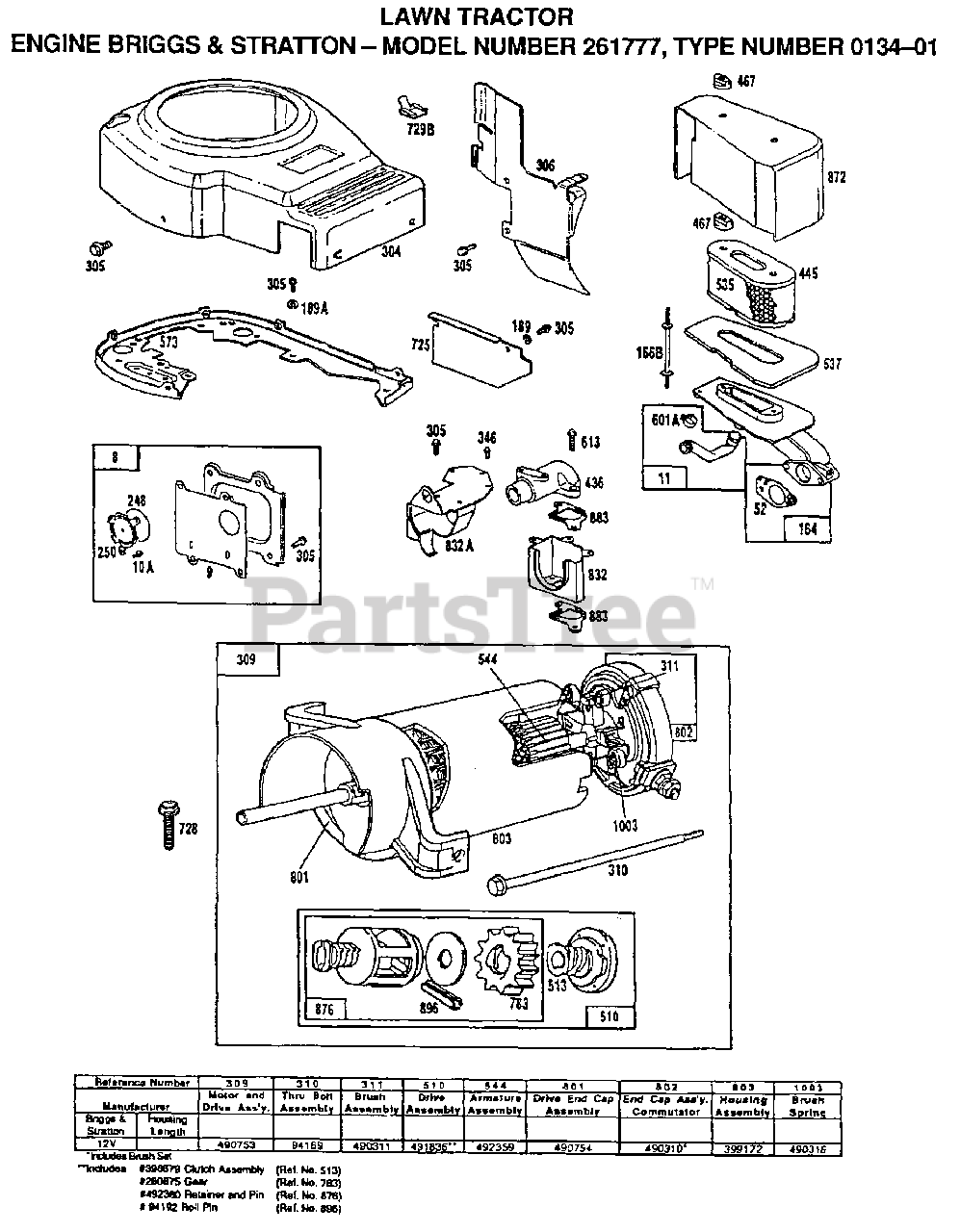

ENGINE/B&S Parts Diagram

  • Title

1

Electrolux/AYP 492034

CYLINDER ASSY

$

$

Not available

2

Electrolux/AYP 492036

BEARING

$

$

Not available

3

Electrolux/AYP 492029

SEAL

$

$

Not available

5

Electrolux/AYP 492154

HEAD-CYLINDER

$

$

Not available

6

Electrolux/AYP 94340

WASHER

$

$

Not available

6A

Electrolux/AYP 492063

WASHER & SEAL

$

$

Not available

7

Electrolux/AYP 272126

GASKET

$

$

Not available

8

Electrolux/AYP 492180

BREATHER ASSY

$

$

Not available

9

Electrolux/AYP 272120

GASKET

$

$

Not available

10

Electrolux/AYP 810050

SCREW

$

$

Not available

10A

Electrolux/AYP 810057

SCREW

$

$

Not available

11

Electrolux/AYP 492422

TUBE

$

$

Not available

12

Electrolux/AYP 272124

GASKET

$

$

Not available

13

Electrolux/AYP 94335

SCREW

$

$

Not available

15

Electrolux/AYP 94239

PLUG, OIL DRAIN

$

$

Not available

15A

Electrolux/AYP 260022

PLUG

$

$

Not available

16

Electrolux/AYP 262486

CRANKSHAFT

$

$

Not available

18

Electrolux/AYP 492203

BASE ASSY

$

$

Not available

22

Electrolux/AYP 810081

SCREW

$

$

Not available

23

Electrolux/AYP 491156

FLYWHEEL & RING GEAR ASSY

$

$

Not available

24

Electrolux/AYP 222698

KEY, FLYWHEEL

$

$

Not available

25

Electrolux/AYP 492110

PISTON ASSY

$

$

Not available

Electrolux/AYP 492933

PISTON ASSY

$

$

Not available

Electrolux/AYP 492934

PISTON ASSY

$

$

Not available

Electrolux/AYP 492935

PISTON ASSY

$

$

Not available

26

Electrolux/AYP 492111

RING SET

$

$

Not available

Electrolux/AYP 492936

RING SET

$

$

Not available

Electrolux/AYP 492937

RING SET

$

$

Not available

Electrolux/AYP 492938

RING SET

$

$

Not available

27

Electrolux/AYP 262457

LOCK

$

$

Not available

29

Electrolux/AYP 4922113

ROD ASSY

$

$

Not available

31

Electrolux/AYP 94465

WASHER

$

$

Not available

32

Electrolux/AYP 94327

SCREW

$

$

Not available

33

Electrolux/AYP 492117

VALVE

$

$

Not available

34

Electrolux/AYP 492116

VALVE

$

$

Not available

35

Electrolux/AYP 262501

SPRING

$

$

Not available

40

Electrolux/AYP 262381

RETAINER

$

$

Not available

42

Electrolux/AYP 492231

RETAINER

$

$

Not available

45

Electrolux/AYP 262373

TAPPET

$

$

Not available

46

Electrolux/AYP 491619

GEAR

$

$

Not available

51

Electrolux/AYP 272121

GASKET

$

$

Not available

51A

Electrolux/AYP 272028

GASKET

$

$

Not available

52

Electrolux/AYP 272029

GASKET

$

$

Not available

75

Electrolux/AYP 224079

WASHER

$

$

Not available

78

Electrolux/AYP 94417

SCREW

$

$

Not available

84

Electrolux/AYP 492199

PLUG

$

$

Not available

84A

Electrolux/AYP 94379

PLUG

$

$

Not available

84B

Electrolux/AYP 94497

PLUG, PIPE

$

$

Not available

93

Electrolux/AYP 280926

BUSHING - THROTTLE SHAFT

$

$

Not available

93A

Electrolux/AYP 280931

BUSHING - THROTTLE SHAFT

$

$

Not available

95

Electrolux/AYP 94457

SCREW, VALVE MOUNTING

$

$

Not available

95A

Electrolux/AYP 94466

SCREW, VALVE MOUNTING

$

$

Not available

98

Electrolux/AYP 492276

SCREW

$

$

Not available

104

Electrolux/AYP 231652

PIN, FLOAT HINGE

$

$

Not available

105

Electrolux/AYP 492188

VALVE

$

$

Not available

108

Electrolux/AYP 224223

VALVE

$

$

Not available

113

Electrolux/AYP 231696

NOZZLE

$

$

Not available

113A

Electrolux/AYP 231697

NOZZLE

$

$

Not available

116

REFER TO IMAGE

$

$

Not available

116A

Electrolux/AYP 280801

SEAL O-RING

$

$

Not available

117

REFER TO IMAGE

$

$

Not available

Electrolux/AYP 231669

JET MAIN

$

$

Not available

118

Electrolux/AYP 492277

VALVE ASSY

$

$

Not available

121

Electrolux/AYP 492282

CARBURETOR OVERHAUL KIT

$

$

Not available

122

Electrolux/AYP 491784

ADAPTER & GASKET ASSY

$

$

Not available

125

Electrolux/AYP 492915

CARBURETOR ASSY

$

$

Not available

130

Electrolux/AYP 224224

VALVE

$

$

Not available

131

Electrolux/AYP 492278

SHAFT ASSY

$

$

Not available

133

Electrolux/AYP 492283

FLOAT, BOWL

$

$

Not available

137

REFER TO IMAGE

$

$

Not available

141

Electrolux/AYP 492279

SHAFT ASSY

$

$

Not available

147

Electrolux/AYP 231719

NOZZLE

$

$

Not available

147A

Electrolux/AYP 231659

NOZZLE

$

$

Not available

164

Electrolux/AYP 491876

MANIFOLD

$

$

Not available

166

Electrolux/AYP 94342

STUD

$

$

Not available

166A

Electrolux/AYP 94333

STUD

$

$

Not available

166B

Electrolux/AYP 262471

STUD

$

$

Not available

171

Electrolux/AYP 810056

NUT

$

$

Not available

186

Electrolux/AYP 230318

CONNECTOR, IMPULSE PUMP

$

$

Not available

187

Electrolux/AYP 393815

HOSE (CUT TO SUIT)

$

$

Not available

188

Electrolux/AYP 93659

SCREW

$

$

Not available

189

Electrolux/AYP 810093

WASHER

$

$

Not available

189A

Electrolux/AYP 810091

WASHER

$

$

Not available

192

Electrolux/AYP 491511

NUT

$

$

Not available

201

Electrolux/AYP 262495

LINK

$

$

Not available

204

Electrolux/AYP 222962

BUSHING, GOVERNOR LEVER, FLAT

$

$

Not available

206

Electrolux/AYP 280847

ADJUSTER

$

$

Not available

208

Electrolux/AYP 94393

ROD

$

$

Not available

209

Electrolux/AYP 262607

SPRING

$

$

Not available

209A

Electrolux/AYP 262504

SPRING

$

$

Not available

215

Electrolux/AYP 262506

SPRING

$

$

Not available

216

Electrolux/AYP 262494

LINK

$

$

Not available

219

Electrolux/AYP 492195

GEAR

$

$

Not available

223

Electrolux/AYP 223940

LEVER

$

$

Not available

224

Electrolux/AYP 93491

RIVET, GOVERNOR CONTROL LEVER MOUNTING

$

$

Not available

227

Electrolux/AYP 491057

LEVER ASSY

$

$

Not available

230

Electrolux/AYP 94423

WASHER

$

$

Not available

232

Electrolux/AYP 262500

SPRING

$

$

Not available

238

Electrolux/AYP 262499

CAP

$

$

Not available

240

Electrolux/AYP 394358

FILTER, FUEL

$

$

Not available

243

Electrolux/AYP 491722

OIL PUMP SCREEN

$

$

Not available

248

Electrolux/AYP 66504

DISC

$

$

Not available

249

Electrolux/AYP 491388

VALVE

$

$

Not available

249A

Electrolux/AYP 492198

VALVE

$

$

Not available

250

Electrolux/AYP 223966

RETAINER

$

$

Not available

254

Electrolux/AYP 492274

DRAIN, CARBURETOR BOWL

$

$

Not available

255

Electrolux/AYP 280916

RETAINER

$

$

Not available

255A

Electrolux/AYP 280910

RETAINER

$

$

Not available

265

Electrolux/AYP 221535

CLAMP

$

$

Not available

277

Electrolux/AYP 810017

WASHER

$

$

Not available

277A

Electrolux/AYP 94398

WASHER

$

$

Not available

284

Electrolux/AYP 94505

SCREW

$

$

Not available

294

Electrolux/AYP 810045

SCREW

$

$

Not available

304

Electrolux/AYP 224239

HOUSING BLOWER

$

$

Not available

305

Electrolux/AYP 810037

SCREW

$

$

Not available

306

Electrolux/AYP 223944

SHIELD

$

$

Not available

309

REFER TO IMAGE

$

$

Not available

309

Electrolux/AYP 490753

MOTOR & DRIVE ASSY

$

$

Not available

310

Electrolux/AYP 94169

BOLT

$

$

Not available

311

Electrolux/AYP 490311

SCREEN ROTATING

$

$

Not available

332

Electrolux/AYP 810055

NUT

$

$

Not available

333

Electrolux/AYP 492341

ARMATURE, MAGNETO

$

$

Not available

334

Electrolux/AYP 810035

SCREW

$

$

Not available

337

Electrolux/AYP 491055

PLUG, SPARK

$

$

Not available

346

Electrolux/AYP 810047

SCREW

$

$

Not available

353

Electrolux/AYP 92791

WASHERLOCK

$

$

Not available

354

Electrolux/AYP 90576

NUT, HEX

$

$

Not available

358

Electrolux/AYP 492271

GASKET SET

$

$

Not available

363

Electrolux/AYP 19203

PULLER, FLYWHEEL

$

$

Not available

367

Electrolux/AYP 810036

SCREW

$

$

Not available

387

Electrolux/AYP 491922

PUMP, FUEL

$

$

Not available

436

Electrolux/AYP 213669

ELBOW

$

$

Not available

445

Electrolux/AYP 491021

CARTRIDGE

$

$

Not available

467

Electrolux/AYP 491875

KNOB, AIR CLEANER

$

$

Not available

468

Electrolux/AYP 491793

SCREEN

$

$

Not available

474

Electrolux/AYP 392595

STATOR, ALTERNATOR

$

$

Not available

482

Electrolux/AYP 810071

SCREW

$

$

Not available

501

Electrolux/AYP 491546

REGULATOR

$

$

Not available

510

Electrolux/AYP 491836

DRIVE ASSY

$

$

Not available

513

Electrolux/AYP 398879

CLUTCH ASSY

$

$

Not available

520

Electrolux/AYP 93722

TERMINAL, SPADE

$

$

Not available

523

Electrolux/AYP 491794

DIPSTICK

$

$

Not available

524

Electrolux/AYP 280860

SEAL, FILLER TUBE

$

$

Not available

525

Electrolux/AYP 492398

TUBE

$

$

Not available

526

Electrolux/AYP 810084

SCREW

$

$

Not available

527

Electrolux/AYP 221428

CLAMP

$

$

Not available

535

Electrolux/AYP 492947

ELEMENT

$

$

Not available

544

Electrolux/AYP 492359

ARMATURE ASSY

$

$

Not available

552

Electrolux/AYP 231592

BUSHING

$

$

Not available

562

Electrolux/AYP 810072

BOLT

$

$

Not available

573

Electrolux/AYP 491926

PLATE

$

$

Not available

592

Electrolux/AYP 810011

NUT

$

$

Not available

601

Electrolux/AYP 93807

CLAMP HOSE

$

$

Not available

601A

Electrolux/AYP 94487

CLAMP

$

$

Not available

613

Electrolux/AYP 810041

SCREW

$

$

Not available

614

Electrolux/AYP 94424

PIN

$

$

Not available

615

Electrolux/AYP 94400

RING

$

$

Not available

615A

Electrolux/AYP 94392

RING

$

$

Not available

615B

Electrolux/AYP 94399

RING

$

$

Not available

616

Electrolux/AYP 491874

CRANK

$

$

Not available

618

Electrolux/AYP 262563

SPRING

$

$

Not available

621

Electrolux/AYP 280979

SWITCH

$

$

Not available

634

REFER TO IMAGE

$

$

Not available

634B

Electrolux/AYP 491880

SEAL

$

$

Not available

635

Electrolux/AYP 280897

ELBOW

$

$

Not available

657

Electrolux/AYP 94443

SCREW

$

$

Not available

718

Electrolux/AYP 231589

PIN

$

$

Not available

718A

Electrolux/AYP 230192

PIN, DOWEL

$

$

Not available

725

Electrolux/AYP 223943

SHIELD

$

$

Not available

725A

Electrolux/AYP 491983

SHIELD

$

$

Not available

726

Electrolux/AYP 492230

GEAR

$

$

Not available

728

Electrolux/AYP 810040

SCREW

$

$

Not available

729

Electrolux/AYP 262617

CLIP

$

$

Not available

729A

Electrolux/AYP 262616

CLIP

$

$

Not available

729B

Electrolux/AYP 224356

CLIP, DEBRIS

$

$

Not available

741

Electrolux/AYP 262370

GEAR

$

$

Not available

758

Electrolux/AYP 492187

COUNTERWEIGHT ASSY

$

$

Not available

759

Electrolux/AYP 231608

PIN

$

$

Not available

783

Electrolux/AYP 280875

GEAR

$

$

Not available

788

Electrolux/AYP 224148

BRACKET

$

$

Not available

789

Electrolux/AYP 491780

HARNESS

$

$

Not available

801

Electrolux/AYP 490754

DRIVE END CAP ASSY

$

$

Not available

802

Electrolux/AYP 490310

CAP ASSEMBLY, COMMUTATOR END

$

$

Not available

803

Electrolux/AYP 399172

HOUSING ASSEMBLY

$

$

Not available

819

Electrolux/AYP 94337

SCREW

$

$

Not available

832

Electrolux/AYP 224068

GUARD

$

$

Not available

832A

Electrolux/AYP 491980

COVER ASSY

$

$

Not available

842

Electrolux/AYP 270920

SEAL, OIL FILLER CAP

$

$

Not available

847

Electrolux/AYP 493232

DIPSTICK TUBE ASSY

$

$

Not available

851

Electrolux/AYP 221798

TERMINAL, IGNITION CABLE

$

$

Not available

868

Electrolux/AYP 491020

SEAL

$

$

Not available

869

Electrolux/AYP 262406

SEAT

$

$

Not available

870

Electrolux/AYP 262405

SEAT

$

$

Not available

871

Electrolux/AYP 262378

BUSHING

$

$

Not available

872

Electrolux/AYP 280975

COVER

$

$

Not available

876

Electrolux/AYP 492360

RETAINER & PIN

$

$

Not available

877

Electrolux/AYP 393537

CONNECTOR ASSEMBLY, TRI-CIRCUIT

$

$

Not available

883

Electrolux/AYP 272123

GASKET

$

$

Not available

896

Electrolux/AYP 94192

ROLL PIN

$

$

Not available

916

Electrolux/AYP 280321

RACK, GEAR CONTROL

$

$

Not available

955

Electrolux/AYP 94460

SCREW

$

$

Not available

975

Electrolux/AYP 492272

BOWL ASSY

$

$

Not available

977

Electrolux/AYP 492281

GASKET SET

$

$

Not available

978

Electrolux/AYP 272122

GASKET

$

$

Not available

979

Electrolux/AYP 492197

COVER

$

$

Not available

982

Electrolux/AYP 810040

SCREW

$

$

Not available

985

Electrolux/AYP 398525

INSULATOR ASSEMBLY

$

$

Not available

987

Electrolux/AYP 492172

SEAL

$

$

Not available

1003

Electrolux/AYP 490316

BRUSH SPRING SET

$

$

Not available

1005

Electrolux/AYP 491792

FAN

$

$

Not available

1006

Electrolux/AYP 223726

RETAINER FAN

$

$

Not available

1011

Electrolux/AYP 281001

HOSE

$

$

Not available

1012

Electrolux/AYP 280869

RETAINER

$

$

Not available

1022

Electrolux/AYP 272010

GASKET

$

$

Not available

1023

Electrolux/AYP 213303

COVER

$

$

Not available

1024

Electrolux/AYP 492196

OIL PUMP ASSY

$

$

Not available

1026

Electrolux/AYP 491695

ROD

$

$

Not available

1027

Electrolux/AYP 491056

FILTER, OIL

$9.99

$

In Stock, only 2 left!

0

1028

Electrolux/AYP 492251

ADAPTER

$

$

Not available

1029

Electrolux/AYP 223928

ARM

$

$

Not available
