RL 12536 TB - Electrolux/AYP Lawn Tractor SECTOR GEAR/AXLE SUPPORT Parts Diagram

Lawn Tractor

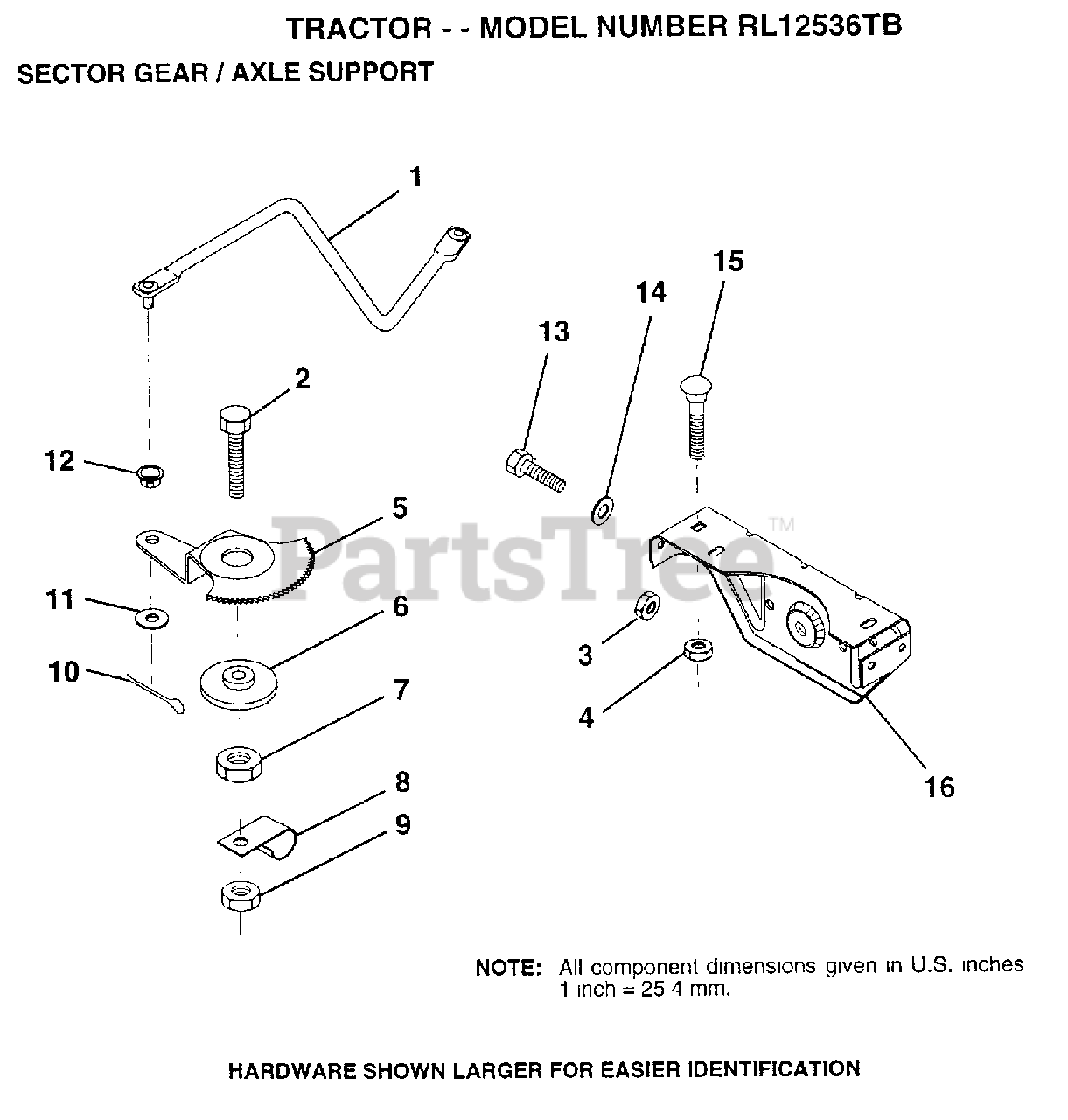

SECTOR GEAR/AXLE SUPPORT Parts Diagram

  • Title

1

Electrolux/AYP 132566

DRAG LINK
(Superseded to 532132566)

$46.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 74780828

"BOLT,HEX"
(Superseded to 874780828)

$4.99

$

Usually ships in 3-10 days

0

3

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 121926X

GEAR SECTOR
(Superseded to 532121926)

$

$

Not available

6

Electrolux/AYP 121927X

BUSHING
(Superseded to 532121927)

$

$

Not available

7

Electrolux/AYP 73030800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

8

Electrolux/AYP 126472X

CLIP INSULATOR
(Superseded to 532126472)

$

$

Not available

9

Electrolux/AYP 73680800

NUT LTV
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

10

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 126847X

BUSHING.DRAGLINK
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 19111416

WASHER
(Superseded to 819111416)

$

$

Not available

15

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 137096

SUPT AXLE FRONT
(Superseded to 532137096)

$

$

Not available
