RL 1036 AR - Electrolux/AYP Lawn Tractor STEERING AND FRONT AXLE Parts Diagram

Lawn Tractor

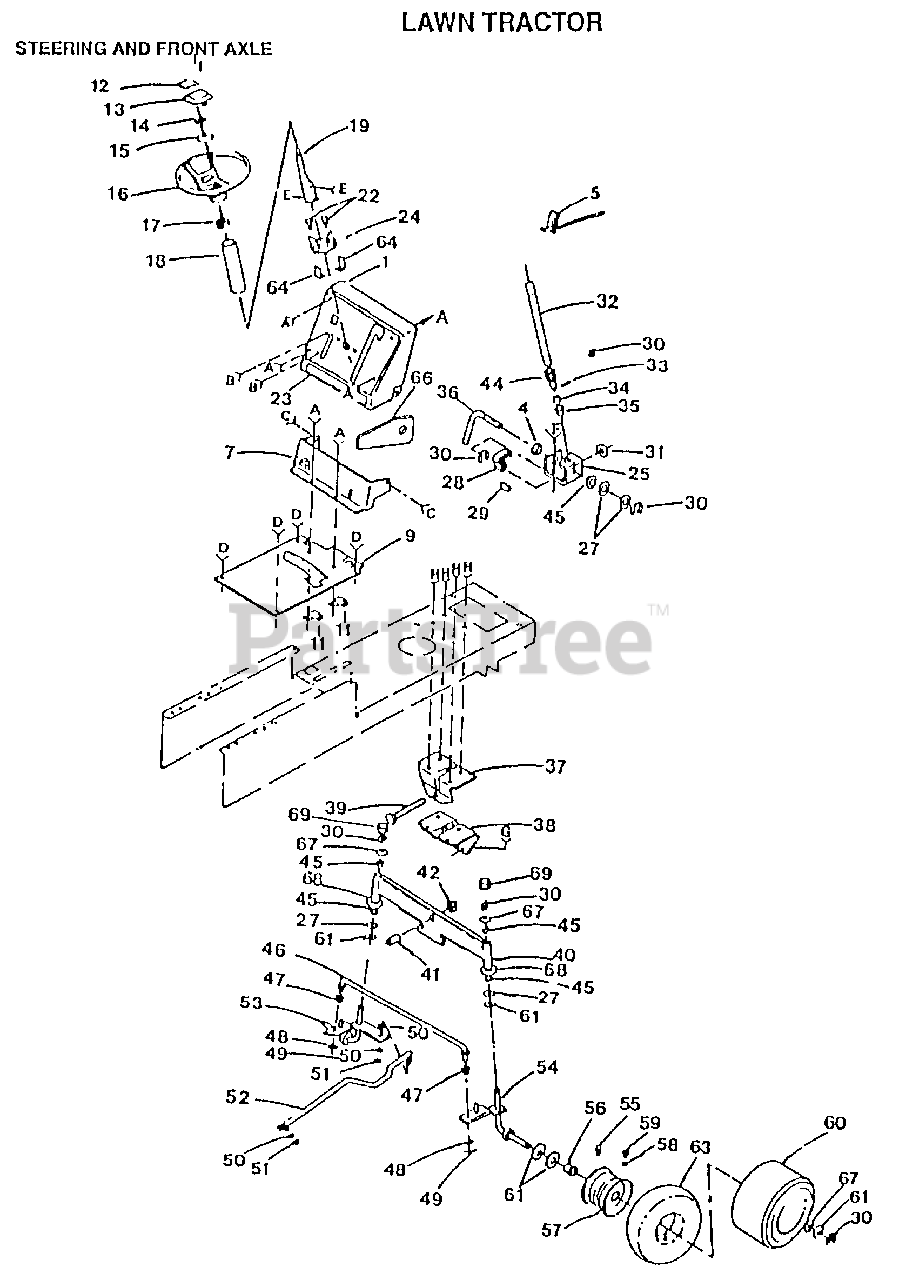

STEERING AND FRONT AXLE Parts Diagram

  • Title

1

Electrolux/AYP 109283X016

DASH

$

$

Not available

4

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

5

Electrolux/AYP 124426X

SUB= 132771

$

$

Not available

7

Electrolux/AYP 105621X

DASH-LOWER LT

$

$

Not available

9

Electrolux/AYP 124466X012

SADDLE

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

12

Electrolux/AYP 109325X

SUB= 127075

$

$

Not available

13

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

14

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

15

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

16

Electrolux/AYP 100713N

SUB= 150547

$

$

Not available

17

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

18

Electrolux/AYP 109285X

SLEEVE T

$

$

Not available

19

Electrolux/AYP 123136X

STEERING SHAFT

$

$

Not available

22

Electrolux/AYP 17031008

SUB= 98000165

$

$

Not available

23

Electrolux/AYP 109821X

SUB= 138956
(Superseded to 532109821)

$

$

Not available

24

Electrolux/AYP 109284X

BUSHING T
(Superseded to 583657501)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 109432X

SUB= 110150X

$

$

Not available

27

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

28

Electrolux/AYP 108684X

GEAR.SECTOR.HYT

$

$

Not available

29

Electrolux/AYP 106126X

KEY-WOODRUFF LT

$

$

Not available

30

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 101930X

WASHER YTV

$

$

Not available

32

Electrolux/AYP 109068X

STEERING SHAFT T

$

$

Not available

33

Electrolux/AYP 2882J

DRIVE PIN

$

$

Not available

34

Electrolux/AYP 74580

SHAFT SPACER LT

$

$

Not available

35

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108683X

ROD STEERING T

$

$

Not available

37

Electrolux/AYP 105663X

SUPPORT-SADDL T
(Superseded to 532105663)

$

$

Not available

38

Electrolux/AYP 105664X

SUPPORT.SADDLE.FT
(Superseded to 532105664)

$9.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74761060

BOLT LT
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 105669X

SUB= 108075X
(Superseded to 108075X)

$

$

Not available

41

Electrolux/AYP 110438X

BEARING
(Superseded to 532110438)

$

$

Not available

42

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 108685X

GEAR PINION T

$

$

Not available

45

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 105715X

ROD-TIE LT

$

$

Not available

47

Electrolux/AYP 120754X

SUB= 126847X

$

$

Not available

48

Electrolux/AYP 19131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

49

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 105727X

LINK-DRAG LT
(Superseded to 532105727)

$

$

Not available

53

Electrolux/AYP 105656X

SPINDLE-LH LT
(Superseded to 532105656)

$

$

Not available

54

Electrolux/AYP 105654X

SUB= 130524

$

$

Not available

55

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 106732X311

SUB= 106732X427

$

$

Not available

58

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

59

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 124157X

SUB= 122073X

$

$

Not available

61

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

64

Electrolux/AYP 110130X

RETAINER T
(Superseded to 583659101)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 110307X

SUB= 110553X

$

$

Not available

67

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

68

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

69

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0
