RL 1036 AR - Electrolux/AYP Lawn Tractor HARDWARE Parts Diagram

Lawn Tractor

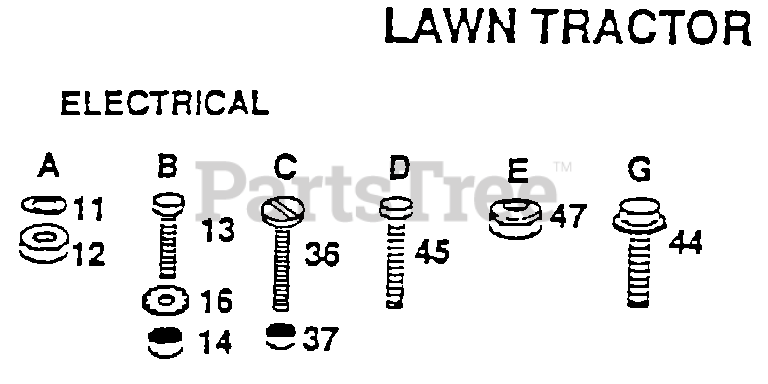

HARDWARE Parts Diagram

  • Title
11

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

12

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

13

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

14

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

16

$2.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

37

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

47

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available

Electrolux/AYP 101572X

SHEET-INSTRUCTION (FRENCH)
(Superseded to 532101572)

$

$

Not available

Electrolux/AYP 123929X

OWNERS MANUAL

$5.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 123930X

OWNER'S MANUAL

$

$

Not available
