RK RT9A - Ranch King Tiller (1999) MAINFRAME, LEFT SIDE Parts Diagram

Tiller

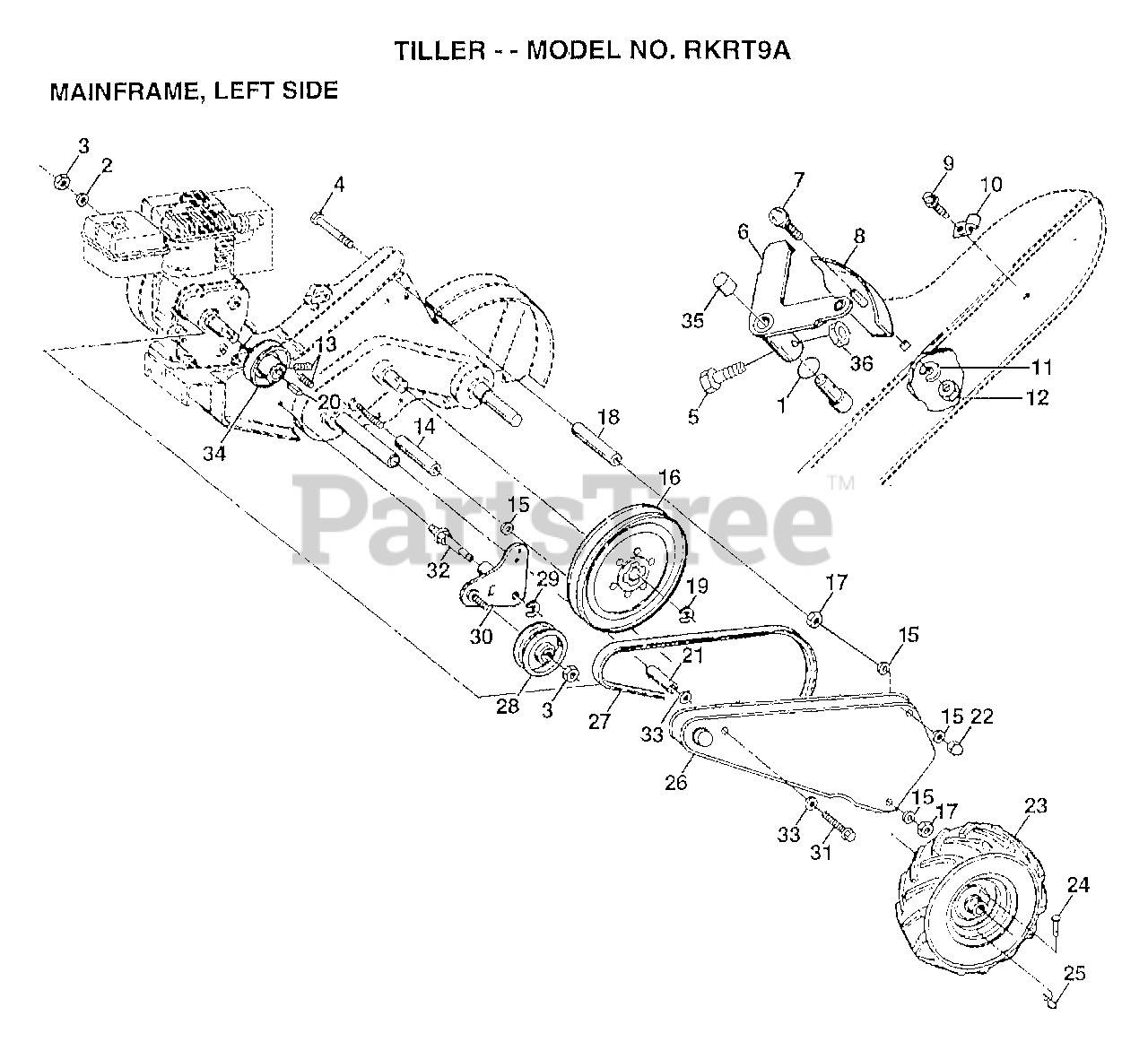

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

1

Electrolux/AYP 106160X

O-RING TI
(Superseded to 532106160)

$6.49

$

In Stock, only 1 left!

0

2

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 74930572

BOLT TI
(Superseded to 874930572)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 154734

"SCREW-LEVER,SHI"

$

$

Not available

6

Electrolux/AYP 110111X

LEVER ASM CRT
(Superseded to 532110111)

$18.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 72110404

BOLT
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 8700J

PANEL TI
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

10

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

11

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 23230506

SET SCREW
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 8382J

SPACER TI
(Superseded to 532008382)

$

$

Not available

15

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 145102

SHEAVE.TRANS.
(Superseded to 532145102)

$68.99

$

In Stock, only 3 left!

0

17

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 8381J

SPACER TI
(Superseded to 532008381)

$2.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

20

Electrolux/AYP 4914H

KEY TI
(Superseded to 532004914)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 139155

SPACER.SPLIT
(Superseded to 532139155)

$6.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 104214X

NUT TI
(Superseded to 532104214)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 5015J

TIRE TI
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 138417

RIM.16X4X8.WHT
(Superseded to 532138417)

$94.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

24

Electrolux/AYP 4929H

RIVET.PAN HD.1.75
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

26

Electrolux/AYP 102818X428

GUARD BELT

$19.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 138399

BELT.DRIVE
(Superseded to 532138399)

$60.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 104679X

PULLEY-IDLER TI
(Superseded to 532104679)

$18.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 12000032

KLIP RING
(Superseded to 812000032)

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 159229

BRACKET ASM IDLER
(Superseded to 532159229)

$

$

Not available

31

Electrolux/AYP 74770844

BOLT1/2-20UNF2.75
(Superseded to 874770844)

$

$

Not available

32

Electrolux/AYP 139401

SHAFT.IDLER
(Superseded to 532139401)

$14.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 19171616

WASHER

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 4368J

SHEAVE CRT
(Superseded to 532004368)

$14.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 140062

CAP PLUNGER BLACK
(Superseded to 532140062)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0
