RK RT5A - Ranch King Tiller (1999) HANDLE ASSEMBLY Parts Diagram

Tiller

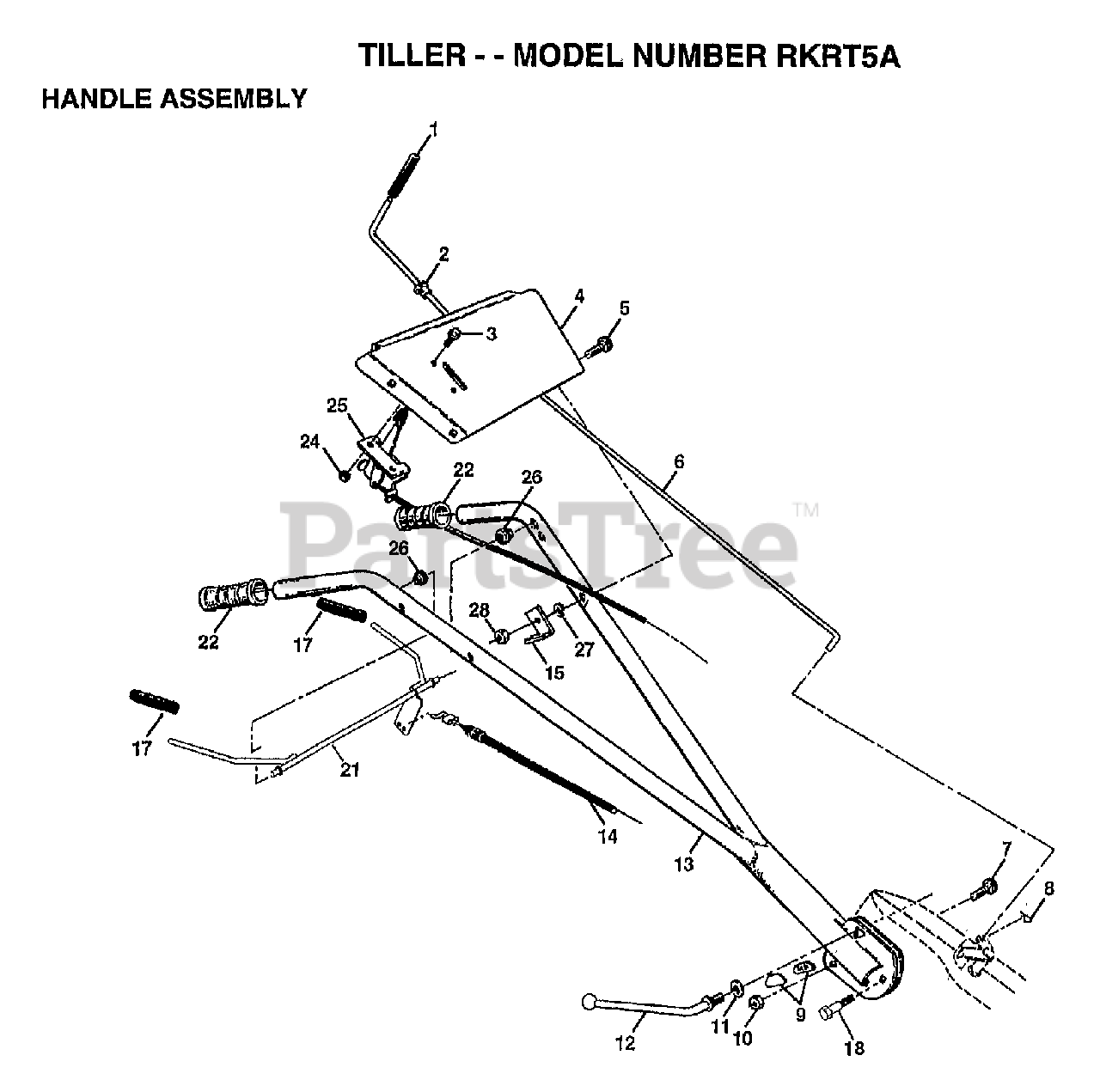

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 8389J

GRIP TI
(Superseded to 532008389)

$

$

Not available

2

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 71191008

SCREW.PNHD.10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 126949X602

BRACKET, HANDLE

$13.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 72110514

BOLT CARRIAGE CRT
(Superseded to 872110514)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 108281X

ROD SHIFT CRT
(Superseded to 532108281)

$

$

Not available

7

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

9

Electrolux/AYP 109229X

LOCK CRT
(Superseded to 532109229)

$7.49

$

In Stock, only 3 left!

0

10

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19131611

WASHER CRT
(Superseded to 596140201)

$3.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 109228X

LEVER LOCK CRT
(Superseded to 532109228)

$13.99

$

In Stock, only 1 left!

0

$

$

Not available

14

Electrolux/AYP 159232

"CABLE, CLUTCH"
(Superseded to 532159232)

$

$

Not available

15

Electrolux/AYP 145821

BRACKET.CLUTCH.CA
(Superseded to 532145821)

$

$

Not available

17

Electrolux/AYP 102604X

GRIP BAR CRT
(Superseded to 532102604)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 150696

BOLT PIVOT
(Superseded to 532150696)

$7.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 159227

BAR CONTROL
(Superseded to 532159227)

$26.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 150744

"GRIP,HANDLE"
(Superseded to 532150744)

$6.49

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 127012X

"CONT,THROTTLE"
(Superseded to 532175769)

$37.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 146480

GROMMET.HANDLE.V-
(Superseded to 532146480)

$

$

Not available

27

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
