RK GT 20H46 A - Ranch King Garden Tractor (1999) CHASSIS AND ENCLOSURES Parts Diagram

Garden Tractor

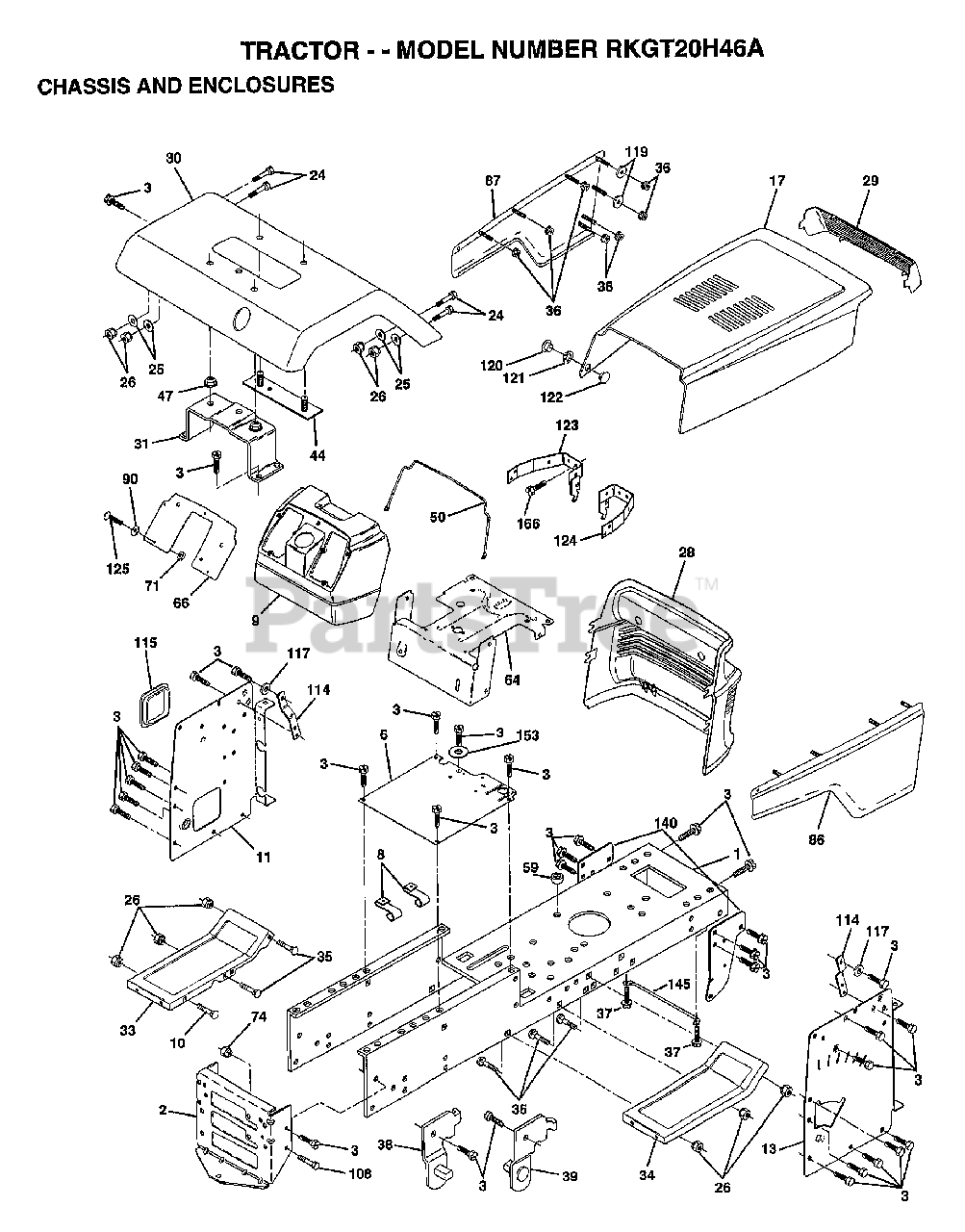

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 165480

CHASSIS.STAMPING

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 155923

SADDLE
(Superseded to 532155923)

$14.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 145203

DASH.PLASTIC.BLK

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 159954

DASHBRD.PANEL.LH

$

$

Not available

13

Electrolux/AYP 159953

DASHBRD.PANEL.RH

$21.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 136673X602

HOOD.GRILLE.ASM.PNT

$92.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

$

$

Not available

29

Electrolux/AYP 136374X599

LENS.YT.GT.SEARS
(Superseded to 532136374)

$

$

Not available

$

$

Not available

31

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

$

$

Not available

34

Electrolux/AYP 145243X602

FOOTREST.RH.PNT

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

43

Electrolux/AYP 19111012

WASHER T
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 140675

STRAP ASM FENDER
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 137304

ROD.SUPT.HOOD 1PC

$

$

Not available

59

$

$

Not available

64

Electrolux/AYP 150272

DASH.LOWER.LT
(Superseded to 583037501)

$21.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 166680X010

PLATE.SIKLSCREEN.DASH
(Superseded to 583688901)

$6.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

74

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 136670X602

ASSY.PANEL.SIDE.RH

$12.99

$

Usually ships in 3-10 days

0

$

$

Not available

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

108

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

114

Electrolux/AYP 145349

BRACKET.SUPT.DASH
(Superseded to 532145349)

$

$

Not available

115

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

117

Electrolux/AYP 144283

WASHER.SERRATED.
(Superseded to 532144283)

$2.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$6.99

$

In Stock, only 1 left!

0

120

Electrolux/AYP 137271

RIVET.RATCH.FEMAL
(Superseded to 532137271)

$2.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 137269

WASHER.NYLON
(Superseded to 532137269)

$2.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 137270

RIVET.RATCHET.MAL
(Superseded to 537137270)

$

$

Not available

123

Electrolux/AYP 157105

BRKT ASM PIVOT LH

$

$

Not available

124

Electrolux/AYP 157107

BRKT ASM PIVOT RH

$

$

Not available

125

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

140

Electrolux/AYP 158418

BRKT SUSPENSION
(Superseded to 532158418)

$

$

Not available

145

Electrolux/AYP 156524

"ROD POVOT,CHASSIS"
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

153

Electrolux/AYP 19132203

WASHER GT
(Superseded to 819132203)

$6.49

$

In Stock, only 3 left!

0

166

Electrolux/AYP 164863

"SCREW,HWHD.HI-LO#13-16X3/4"
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0
