RH6000 A (RH6000) - Honda Rear 3-Point Hitch, Made in Japan (SN: RH6000-A100001 - RH6000-9999999) CUTTER DECK LIFT ARM Parts Diagram

Rear 3-Point Hitch, Made in Japan

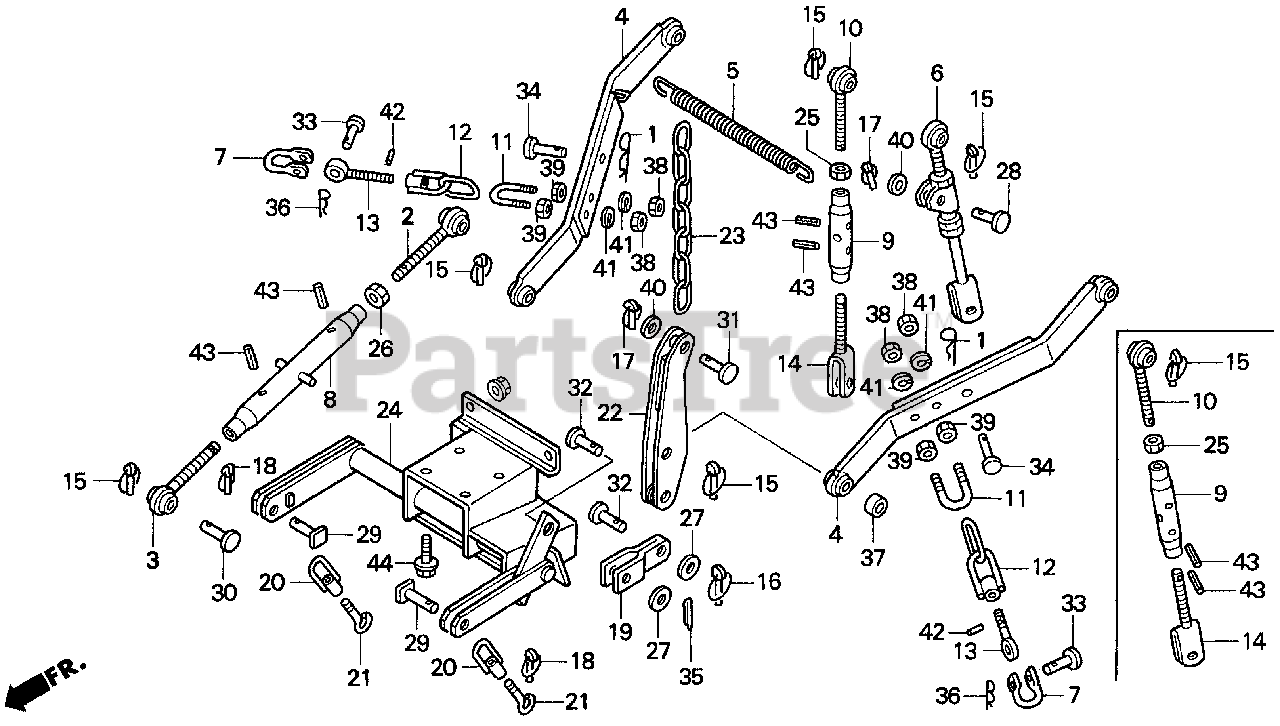

CUTTER DECK LIFT ARM Parts Diagram

  • Title

1

Honda 50641-719-000

PIN, LOCK

$4.99

$

In Stock, only 2 left!

0

2

Honda 50910-759-810

HOLDER, R. LINK (UPPER)

$

$

Not available

3

Honda 50920-759-810

HOLDER, L. LINK (UPPER)

$

$

Not available

4

Honda 50940-764-M30

LINK (LOWER)

$

$

Not available

5

Honda 50941-764-M30

SPRING, STOPPER

$

$

Not available

6

Honda 50950-764-M30

ROD, L. LIFT

$357.99

$

Usually ships in 3-6 days

0

7

Honda 50951-764-M30

JOINT, STABILIZER

$46.99

$

Usually ships in 3-6 days

0

8

Honda 50952-759-810

BUCKLE, LINK TURN (UPPER)

$

$

Not available

9

Honda 50953-764-M30

BUCKLE, LIFT ROD TURN

$

$

Not available

10

Honda 50960-764-M30

ROD, R. LIFT (UPPER)

$

$

Not available

11

Honda 50966-764-M30

BOLT, STABILIZER (12MM)

$

$

Not available

12

Honda 50967-764-M30

NUT, STABILIZER JOINT (16MM)

$

$

Not available

13

Honda 50968-764-M30

BOLT, STABILIZER JOINT (16MM)

$76.99

$

Usually ships in 3-6 days

0

14

Honda 50970-764-M30

ROD, R. LIFT (LOWER)

$

$

Not available

15

Honda 50990-759-000

LINCHPIN ASSY.

$

$

Not available

17

Honda 50990-769-M01

LINCHPIN ASSY.

$10.99

$

Usually ships in 3-6 days

0

23

Honda 76345-764-M30

CHAIN, LIFT LINK

$

$

Not available

25

Honda 90303-752-630

NUT, HEX. (20MM)

$

$

Not available

26

Honda 90342-759-810

NUT, HEX. (22MM)

$12.99

$

Usually ships in 3-6 days

0

28

Honda 90751-764-M30

PIN, RR. LINK

$23.99

$

Usually ships in 3-6 days

0

30

Honda 90754-759-M10

PIN (19X76)

$

$

Not available

31

Honda 90751-764-M30

PIN, RR. LINK

$23.99

$

Usually ships in 3-6 days

0

33

Honda 90760-752-J00

PIN, LIFT ARM (10X51.5)

$

$

Not available

34

Honda 90764-764-M30

PIN, LINK (LOWER)

$19.99

$

Usually ships in 3-6 days

0

36

Honda 90793-759-000

PIN, SNAP

$2.99

$

Usually ships in 3-6 days

0

37

Honda 91552-752-M30

COLLAR, ADJUSTING (1/2")

$14.99

$

Usually ships in 3-6 days

0

38

Honda 94001-12000-0S

NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

39

Honda 94002-12000-0S

NUT, HEX. (12MM)

$2.99

$

Usually ships in 3-6 days

0

40

Honda 94101-16800

WASHER, PLAIN (16MM)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 94111-12800

WASHER, SPRING (12MM)

$1.49

$

Usually ships in 3-6 days

0

42

Honda 94305-30182

PIN, SPRING (3X18)

$1.99

$

Usually ships in 3-6 days

0

43

Honda 94305-40222

PIN, SPRING (4X22)

$2.99

$

In Stock, only 2 left!

0
