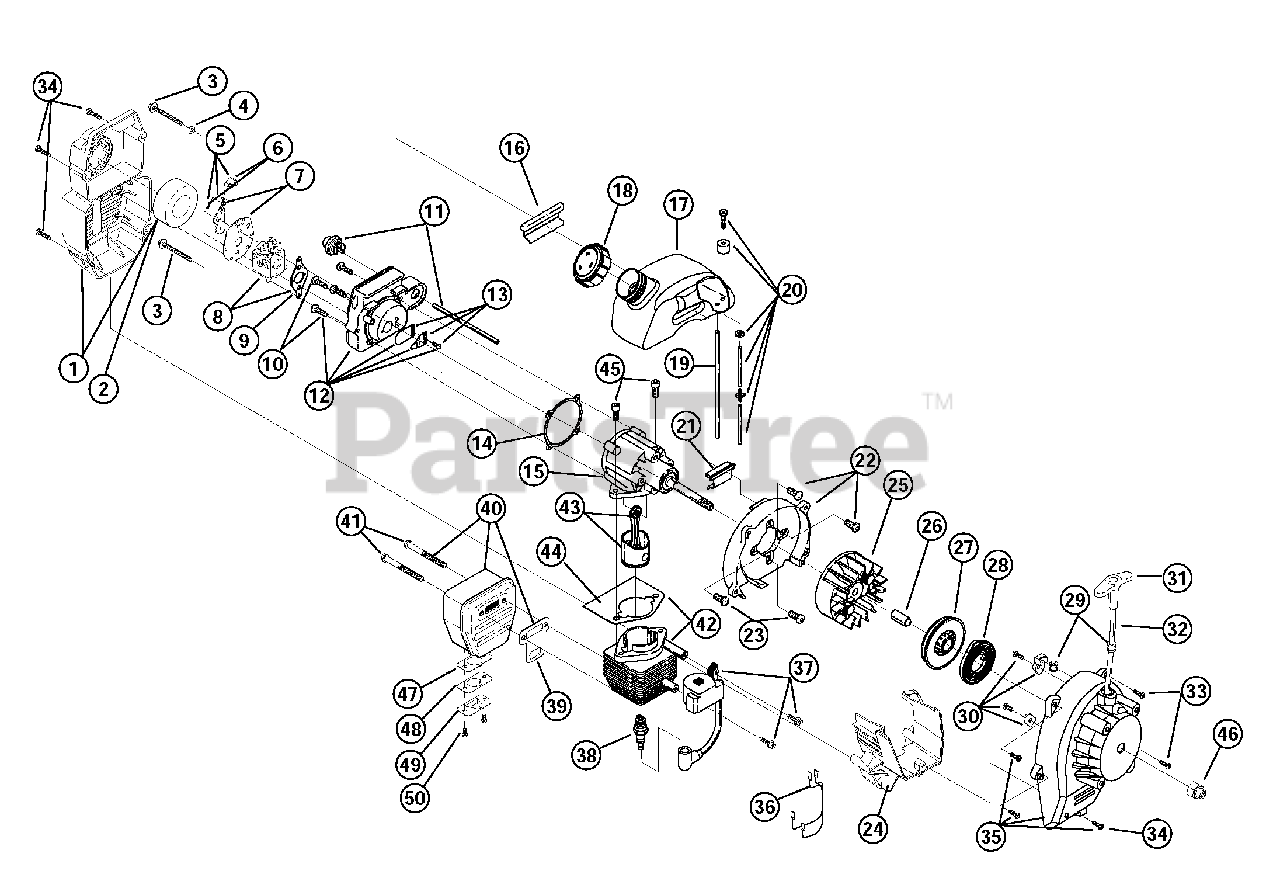

RGBV 3100 (41ASGBPG734) - Ryobi Blower Vacuum Engine Parts Parts Diagram

Blower Vacuum

Engine Parts Parts Diagram

  • Title

1

MTD 753-04105

Air Cleaner/Muffler Cover Assembly

Note: (includes 2 & 34)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182061

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$

$

Not available

6

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$

$

Not available

7

MTD 791-182060

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 5)

$

$

Not available

8

MTD 753-04255

Carburetor Assembly

Note: (includes 9 & 20)

$50.99

$

Usually ships in 3-6 days

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04328

Crank Case Service Assembly

Note: (includes 10 & 23)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04310

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182401

Shroud Extension

Note: (includes 34)

$

$

Not available

25

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

26

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

31

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

32

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

33

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

34

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

35

MTD 791-181931

Starter Housing Assembly

Note: (includes 28-34)

$

$

Not available

36

MTD 791-182402

Wire Lead Assembly

$12.99

$

Usually ships in 3-6 days

0

37

MTD 753-04109

Module Assembly

$

$

Not available

38

MTD 791-147095

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 3 left!

0

39

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

40

MTD 753-04110

Muffler Assembly

Note: (includes 39, 41 & 47-50)

$

$

Not available

41

MTD 791-147575

Muffler Mounting Bolts

$

$

Not available

42

MTD 753-04111

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 44 & 45)

$83.99

$

In Stock, only 1 left!

0

43

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

44

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

45

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

46

MTD 791-181524

Crankshaft Extension

$

$

Not available

47

MTD 753-04121

Spark Arrestor
(Superseded to 753-04110)

$

$

Not available

48

MTD 753-04122

Spark Arrestor Plate
(Superseded to 753-04110)

$

$

Not available

49

MTD 753-04123

Spark Arrestor Hood
(Superseded to 753-04110)

$

$

Not available

50

MTD 753-04124

Spark Arrestor Screws
(Superseded to 710-0748)

$

$

Not available

MTD 791-182067

Engine Gasket Kit
(Superseded to 753-04134)

Note: Not Shown

$

$

Not available

MTD 791-181069

O.E.M. Carburetor Repair Kit (Zama)

Note: Not Shown

$39.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit (Zama)

Note: Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04181

Short Block Assembly

Note: (includes 10, 15, 23, 38, 42 - 45); Not Shown

$116.99

$

In Stock, only 1 left!

0
