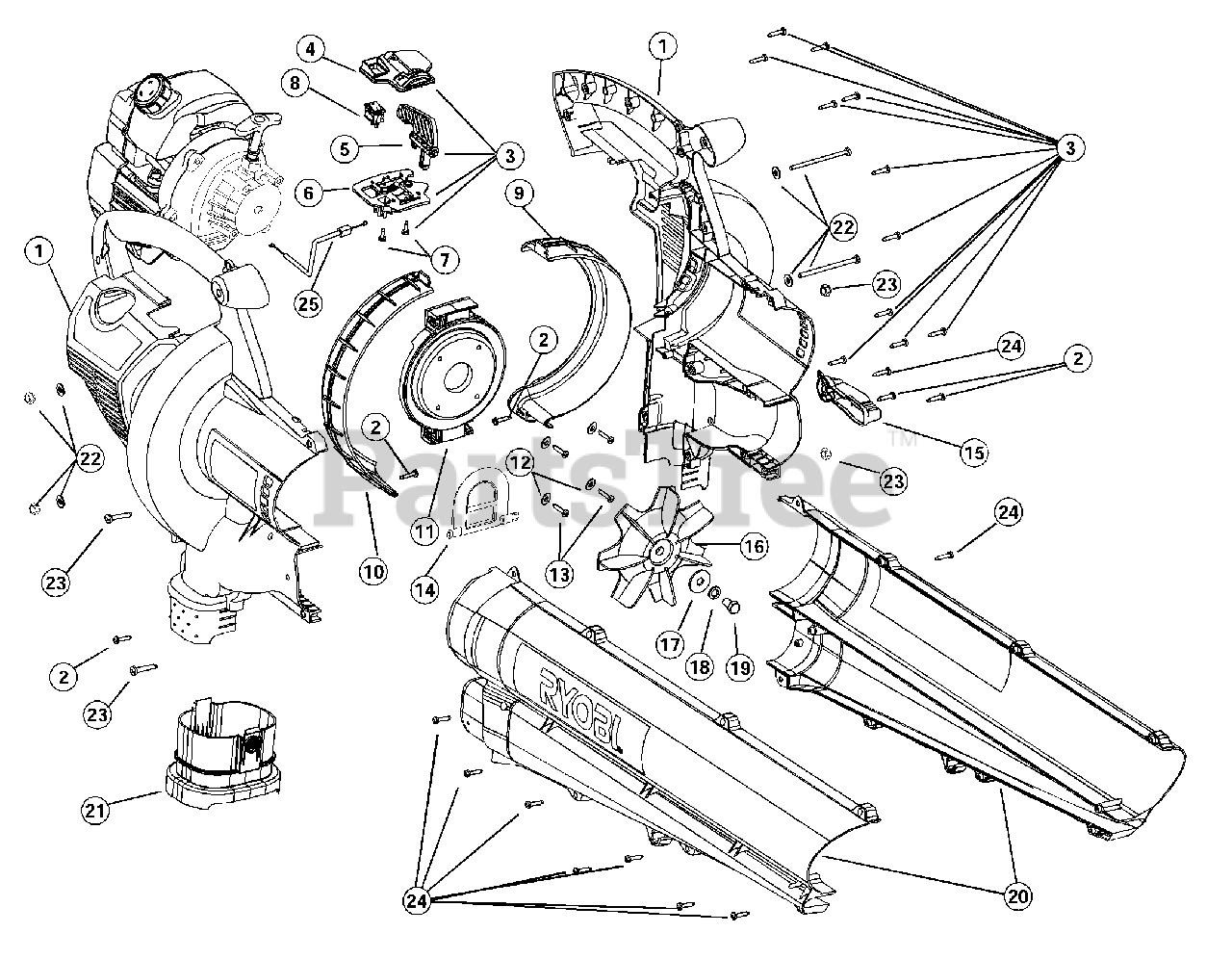

RGBV 3100 (41ASGBPG034) - Ryobi Blower Vacuum Housing Parts Parts Diagram

Blower Vacuum

Housing Parts Parts Diagram

  • Title
1

MTD 753-04138

Engine Cover Assembly

Note: (includes 2)

$

$

Not available

2

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

MTD 791-182419

Throttle Control Assembly
(Superseded to 753-05013A)

Note: (includes 4-7)

$

$

Not available

4

MTD 791-182420

Upper Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

5

MTD 791-182728

Throttle Control Lever
(Superseded to 791-00048)

$11.99

$

Usually ships in 3-6 days

0

6

MTD 791-182422

Lower Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

7

MTD 791-182423

Screw, Plastic

$

$

Not available

8

MTD 791-182405

Rocker Switch Assembly

$10.99

$

In Stock, Qty 12

0

9

MTD 753-04140

Left Side Liner

$

$

Not available

10

MTD 753-04139

Right Side Liner

$

$

Not available

11

MTD 791-182408

Engine Mounting Plate

Note: (includes 12 & 13)

$

$

Not available

12

$4.99

$

In Stock, Qty 5

0

13

$

$

Not available

14

MTD 791-182410

Mode Control Flapper

$9.99

$

Usually ships in 3-6 days

0

15

MTD 791-182411

Mode Control Lever

Note: (includes 24)

$8.99

$

Usually ships in 3-6 days

0

16

MTD 791-147353

Impeller Blade

$

$

Not available

17

MTD 791-182412

Washer
(Superseded to 936-0133)

$

$

Not available

18

MTD 791-182413

Lock Washer
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

19

$4.99

$

Usually ships in 3-6 days

0

20

MTD 791-182415

Blower/Vac Tube Assembly
(Superseded to 791-00051)

Note: (includes 24)

$61.99

$

Usually ships in 3-6 days

0

21

MTD 791-182417

Vacuum Bag Adapter

$18.99

$

Usually ships in 3-6 days

0

22

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

23

MTD 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

24

$4.49

$

Usually ships in 3-6 days

0

25

MTD 791-182068

Throttle Cable

$20.99

$

In Stock, only 2 left!

0

MTD 791-612930

Cable Tie

Note: Item not shown

$10.99

$

Usually ships in 3-6 days

0

MTD 753-04465

Vacuum Bag Assembly

Note: Not Shown; (includes 21, Vacuum Bag & Cable Tie), Inlet oval

$72.99

$

In Stock, only 1 left!

0

MTD 791-181836

Vacuum Bag Assembly

Note: Inlet round, not shown

$

$

Not available

MTD 791-682075B

Shoulder Harness

Note: Item not shown

$38.99

$

Usually ships in 3-6 days

0

MTD 753-04325

Patio Head

Note: Item not shown

$61.99

$

Usually ships in 3-6 days

0
