REX 300-CE (2691348-00) - Snapper 33"/84cm Rear-Engine Riding Mower 33" Mower Group Euro Parts Diagram

33"/84cm Rear-Engine Riding Mower

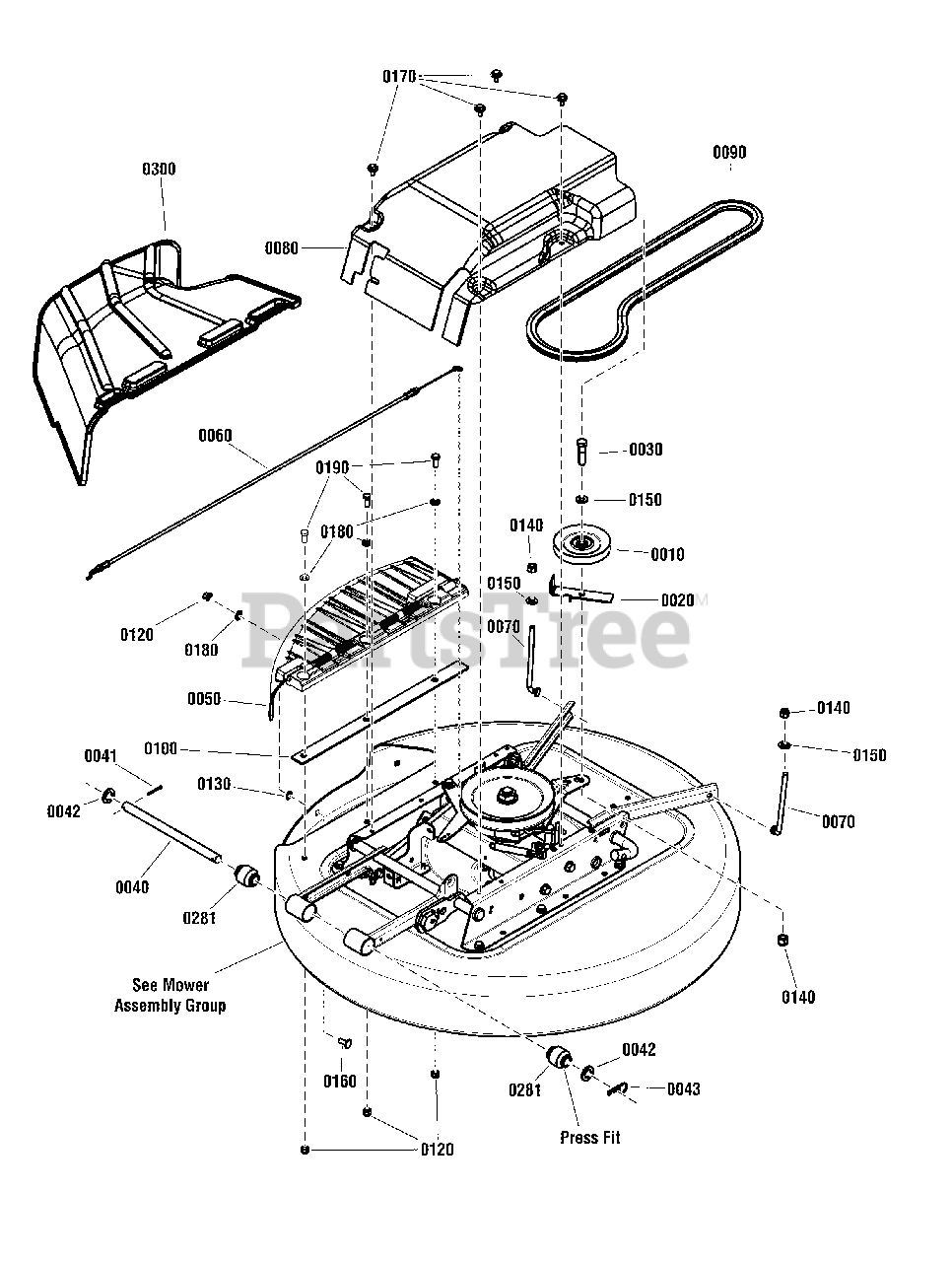

33" Mower Group Euro Parts Diagram

  • Title

0010

Snapper 7029624YP

PULLEY, Idler, .375 ID, 4 OD

$35.99

$

In Stock, Qty 7

0

0020

Snapper 7032111

BRKT, BELT GUIDE, 42
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

0030

Snapper 703406

SCREW, 3/8-16 X 1.50, Hex HD Cap, GR5, Zinc/Clear

$4.99

$

In Stock, only 1 left!

0

0040

Snapper 1759845YP

ROD, Hitch, .625 OD, 9.18" between .140 Holes

$107.99

$

Usually ships in 2-12 days

0

0041

Snapper 703795

PIN, Cotter, 1/8 X 1.0", ZC/CL

$5.99

$

In Stock, only 1 left!

0

0042

Snapper 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0043

Snapper 703796

PIN, .091 DIA X 1.875, Hair, Zinc/Clear

$5.49

$

In Stock, only 1 left!

0

0050

Snapper 7105871YP

ASSEMBLY, Mulching Cover, RER, 33"

$91.99

$

Usually ships in 2-12 days

0

0050-10

Snapper 704005

NUT, 1/4", Push, Zinc/Clear (Not Shown)

$4.49

$

In Stock, Qty 20+

0

0050-20

Snapper 7103309YP

SPRING, Torsion, Rear Door (Not Shown)

$5.49

$

In Stock, only 1 left!

0

0050-30

Snapper 7105346YP

HINGE, Chute, RER, 28/33 (Not Shown)

$39.99

$

Usually ships in 2-12 days

0

0050-40

Snapper 7105689YP

ROD, Chute .25 OD, 17.62 Long (Not Shown)

$7.49

$

Usually ships in 2-12 days

0

0050-50

Snapper 7105870YP

COVER, Mulching, RER, 33" (Not Shown)

$56.99

$

Usually ships in 2-12 days

0

0060

Snapper 7105982YP

CABLE, Brake, 37.4 OPC

$23.99

$

Usually ships in 2-12 days

0

0070

Snapper 706133

ROD, Rear Deck Lift, 5.5 Long, 3/8-16 Threads

$7.99

$

In Stock, only 1 left!

0

0080

Snapper 706172

COVER, Deck Spindle, 28"/33", RER

$86.99

$

Usually ships in 2-12 days

0

0090

Snapper 770082

BELT, 33" Deck, Hydro Drive (HAA 52.40" EL, .41" Thk)

$46.99

$

In Stock, Qty 9

0

0100

Snapper 7301363BMYP

PLATE, 33" Deck Hinge Support

$18.99

$

Usually ships in 2-12 days

0

0120

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0150

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0160

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0170

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0180

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0190

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 13

0

0281

Snapper 1759822YP

ISOLATOR, Radial

$14.99

$

Usually ships in 2-12 days

0

0300

Snapper 7105326YP

CHUTE, Side Discharge, 28"/33"

$125.99

$

In Stock, only 1 left!

0
