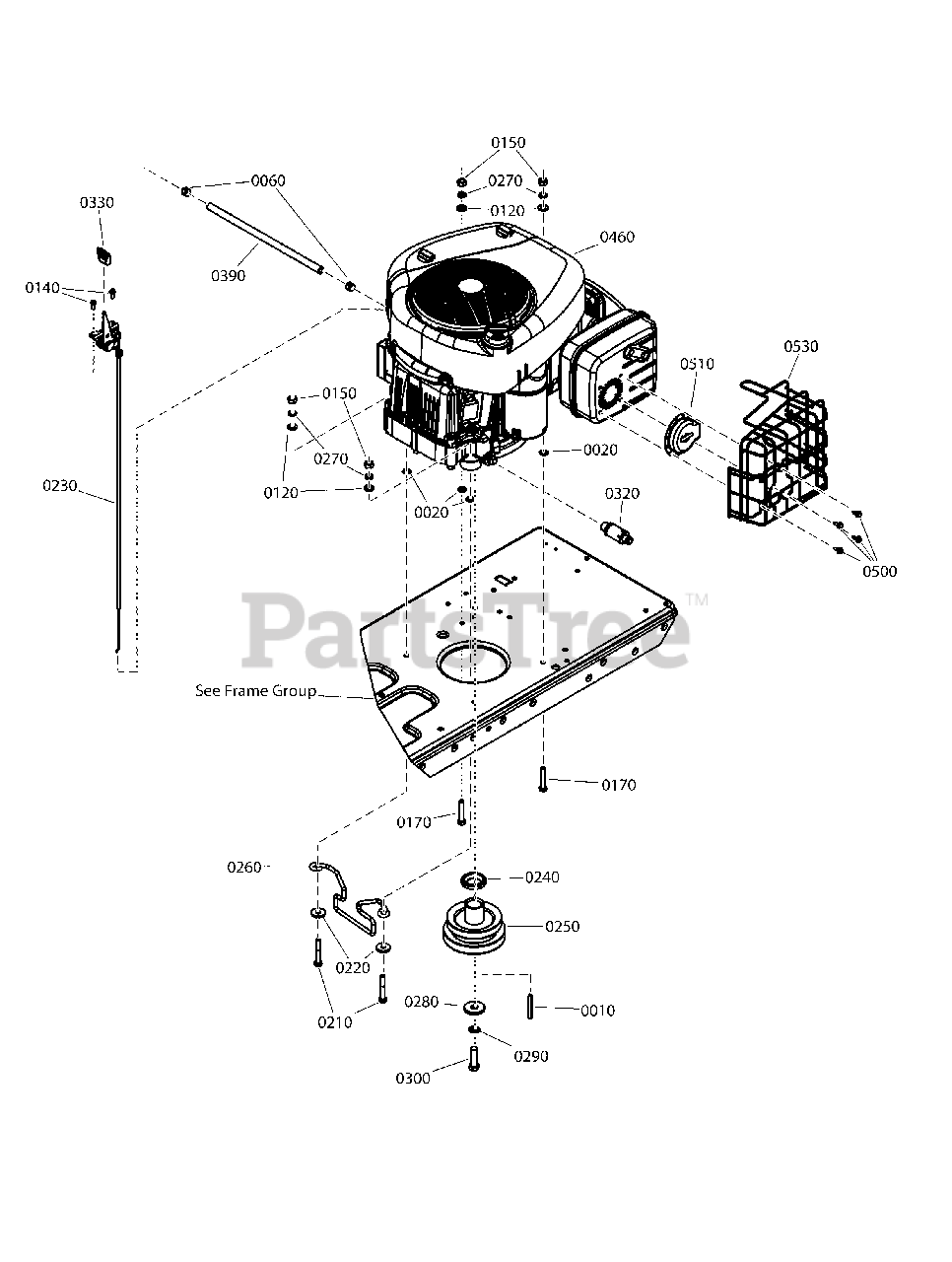

REX 210 (7800935-00) - Snapper 33" Rear-Engine Riding Mower, 14.5hp Engine Group Parts Diagram

33" Rear-Engine Riding Mower, 14.5hp

Engine Group Parts Diagram

  • Title

0010

Snapper 703890

KEY, 1/4 Square x 2 Long

$4.99

$

In Stock, Qty 7

0

0020

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0140

Snapper 7090913SM

SCREW, 10-24 x 1/2 Hex Washer Self-Tap, Torx, Zinc/Clear
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

0150

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0170

Snapper 7091513YP

SCREW, 5/16-24 X 1.75, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 14

0

0210

Snapper 704056

SCREW, 5/16-24 X 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0220

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 1 left!

0

0230

Snapper 7105872YP

ASSEMBLY, Throttle Control, 27.6 Long, 1.6 Throw

$25.99

$

Usually ships in 2-12 days

0

0240

Snapper 721153MA

SPACER, Engine, 1.015 ID, 1.77 OD, .340 Thick
(Superseded to 093077MA)

$15.99

$

In Stock, only 1 left!

0

0250

Snapper 7105938

PULLEY, Double Stack 4 & 4.5 OD, 1 ID, 3.255 Tall
(Superseded to 7105938YP)

$67.99

$

In Stock, only 1 left!

0

0260

Snapper 7106040BMYP

GUIDE, Belt, 1/4 Wire, 1 X 4 ID, 3.55 Tall, 7.66 Mount

$15.99

$

Usually ships in 2-12 days

0

0270

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0280

Snapper 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

Usually ships in 2-12 days

0

0290

Snapper 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0300

Snapper 720205

BOLT, 7/16-20 X 1.5, Hex Patch Lock, G5, ZP
(Superseded to 01X140MA)

$5.49

$

In Stock, Qty 15

0

0320

Snapper 7027972SM

ASSEMBLY, Oil Drain Valve, 2.775 Long

$24.99

$

In Stock, Qty 9

0

0330

Snapper 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0390

Snapper 7200116YP

HOSE, Fuel, Low Perm, 1/4" ID X 14"

$8.99

$

In Stock, only 1 left!

0

0460

Snapper 31R777-0009-B1

* ENGINE, B&S Intek, SER 4175, Mod. #31R777-0009-B1

$

$

Not available

0500

Snapper 690367

* SCREW, #8-18X.53, Tapping Washer HD, B&S

$3.99

$

Usually ships in 2-12 days

0

0510

Snapper 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

0530

Snapper 706336

GUARD, Muffler

$34.99

$

Usually ships in 2-12 days
