REX 200-CE (2691347-00) - Snapper 33" Rear-Engine Riding Mower, 12.5hp Guard Group Parts Diagram

33" Rear-Engine Riding Mower, 12.5hp

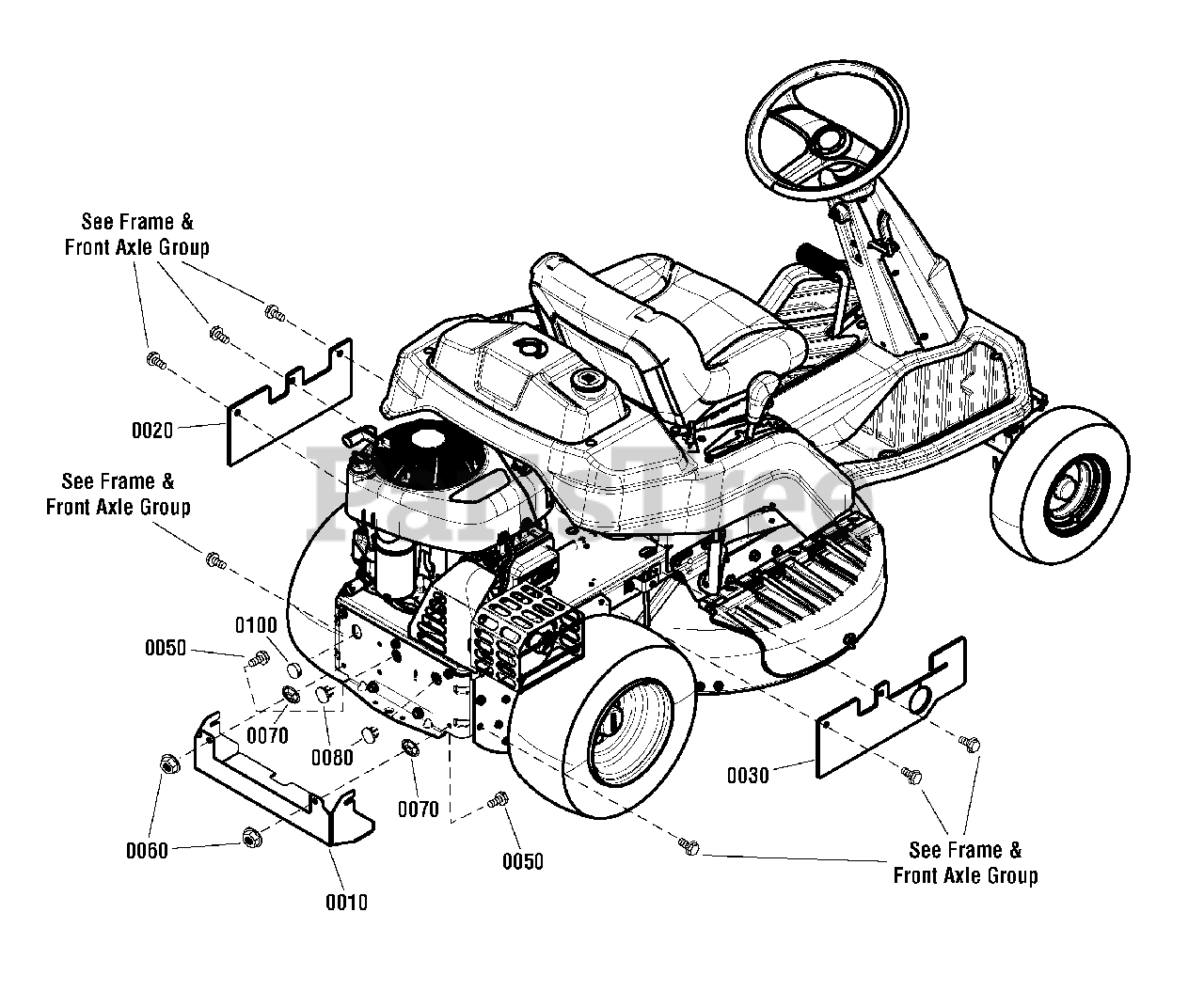

Guard Group Parts Diagram

  • Title
0010

Snapper 706115

COVER, Bottom

$72.99

$

Usually ships in 2-12 days

0

0020

Snapper 706116

GUARD, Frame, L.H.

$9.99

$

Usually ships in 2-12 days

0

0030

Snapper 706117

GUARD, Frame, R.H.

$9.99

$

Usually ships in 2-12 days

0

0050

Snapper 703823

BOLT, 5/16-18 x 5/8

$3.99

$

In Stock, Qty 5

0

0060

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0070

Snapper 703297

RETAINER, 5/16

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 7024998YP

PLUG, 1" Hole

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 706118

PLUG, 1" Hole

$3.49

$

Usually ships in 2-12 days

0
