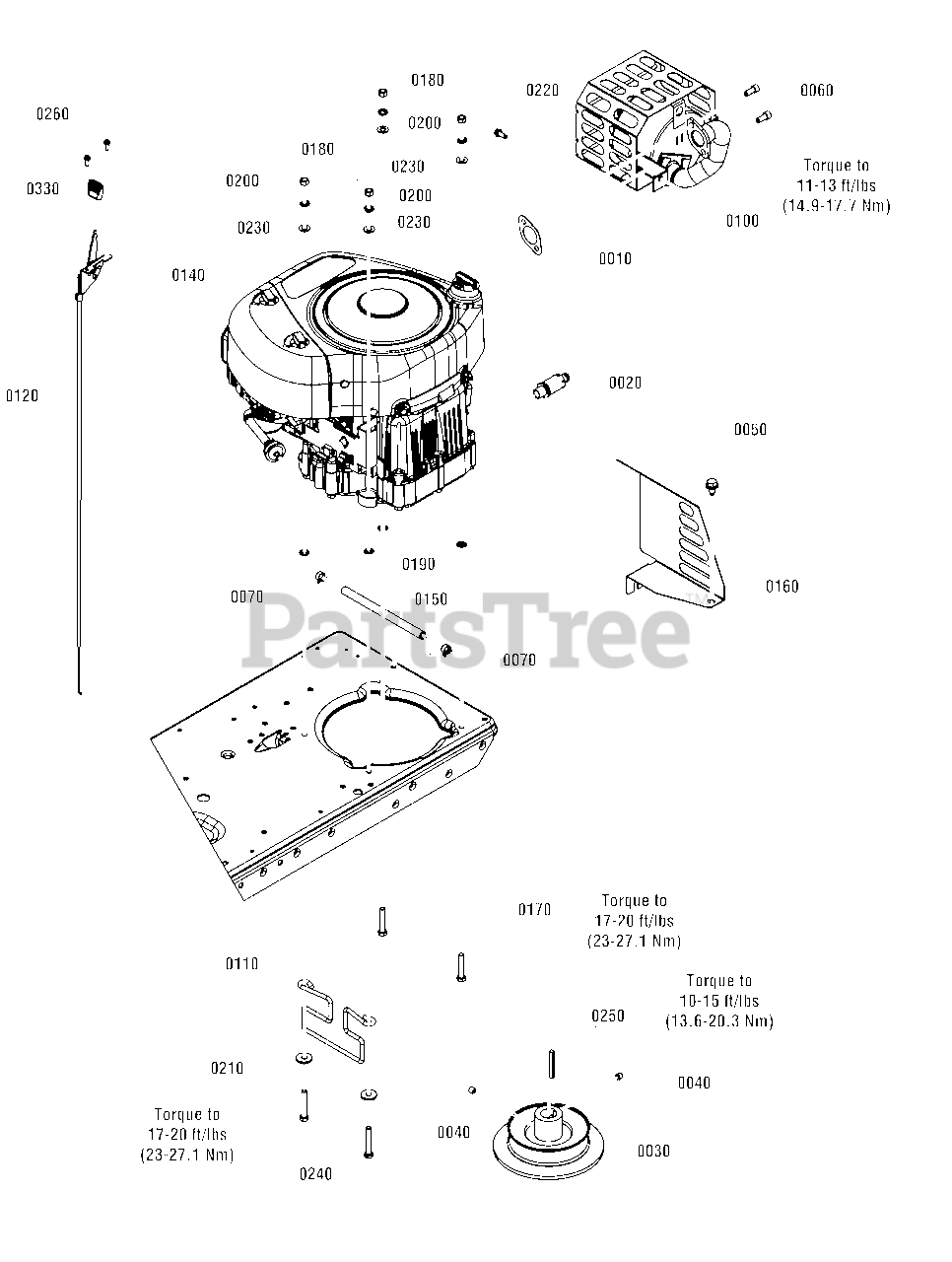

REX 200-CE (2691347-00) - Snapper 33" Rear-Engine Riding Mower, 12.5hp Engine Group Parts Diagram

33" Rear-Engine Riding Mower, 12.5hp

Engine Group Parts Diagram

  • Title

0010

Snapper 7015352SM

GASKET, Exhaust

$5.49

$

In Stock, Qty 8

0

0020

Snapper 7027972SM

VALVE, Oil Drain, 2.44" Long

$24.99

$

In Stock, Qty 9

0

0030

Snapper 7074187YP

DISC, Steel Drive, 5.15" OD Pulley

$155.99

$

In Stock, only 3 left!

0

0040

Snapper 7090132YP

SET SCREW, 3/8-16 x 3/8 Hex Recess Set

$3.49

$

In Stock, only 2 left!

0

0050

Snapper 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0060

Snapper 7091738SM

SCREW, 5/16-18 x 3/4 Socket Head, GR8, BZ

$4.99

$

In Stock, Qty 14

0

0070

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 706121

MUFFLER, W/ Guard, RER, B&S

$125.99

$

Usually ships in 2-12 days

0

0110

Snapper 7105173BMYP

GUIDE, Belt, 1/4" Wire, 1.45" X 5" ID, 3.72" Tall, 5.74" Mount

$11.99

$

In Stock, only 1 left!

0

0120

Snapper 7105917YP

ASSEMBLY, Throttle Control, 23.6" Long, 1.6" Throw

$28.99

$

Usually ships in 2-12 days

0

0140

Snapper 31R777-0032-B1

* ENGINE, B&S 4175 Series, Mod. 31R777-0032-B1

$

$

Currently unavailable

0150

Snapper 1734994SM

HOSE, Fuel, .25" ID, .5" OD, 8.50" LG, Low Perm
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

0160

Snapper 7301135BZYP

SHIELD, Manifold, RER

$33.99

$

Usually ships in 2-12 days

0

0170

Snapper 7091513YP

SCREW, 5/16-24 X 1.75, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 13

0

0180

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0200

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0210

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0230

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0240

Snapper 704056

SCREW, 5/16-24 X 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0250

Snapper 703890

KEY, 1/4 Square x 2 Long

$4.99

$

In Stock, Qty 6

0

0260

Snapper 704060

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 9

0

0330

Snapper 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0
