Revolt SD - Bad Boy Stand-On Mower (2025) SD FRAME Parts Diagram

Stand-On Mower

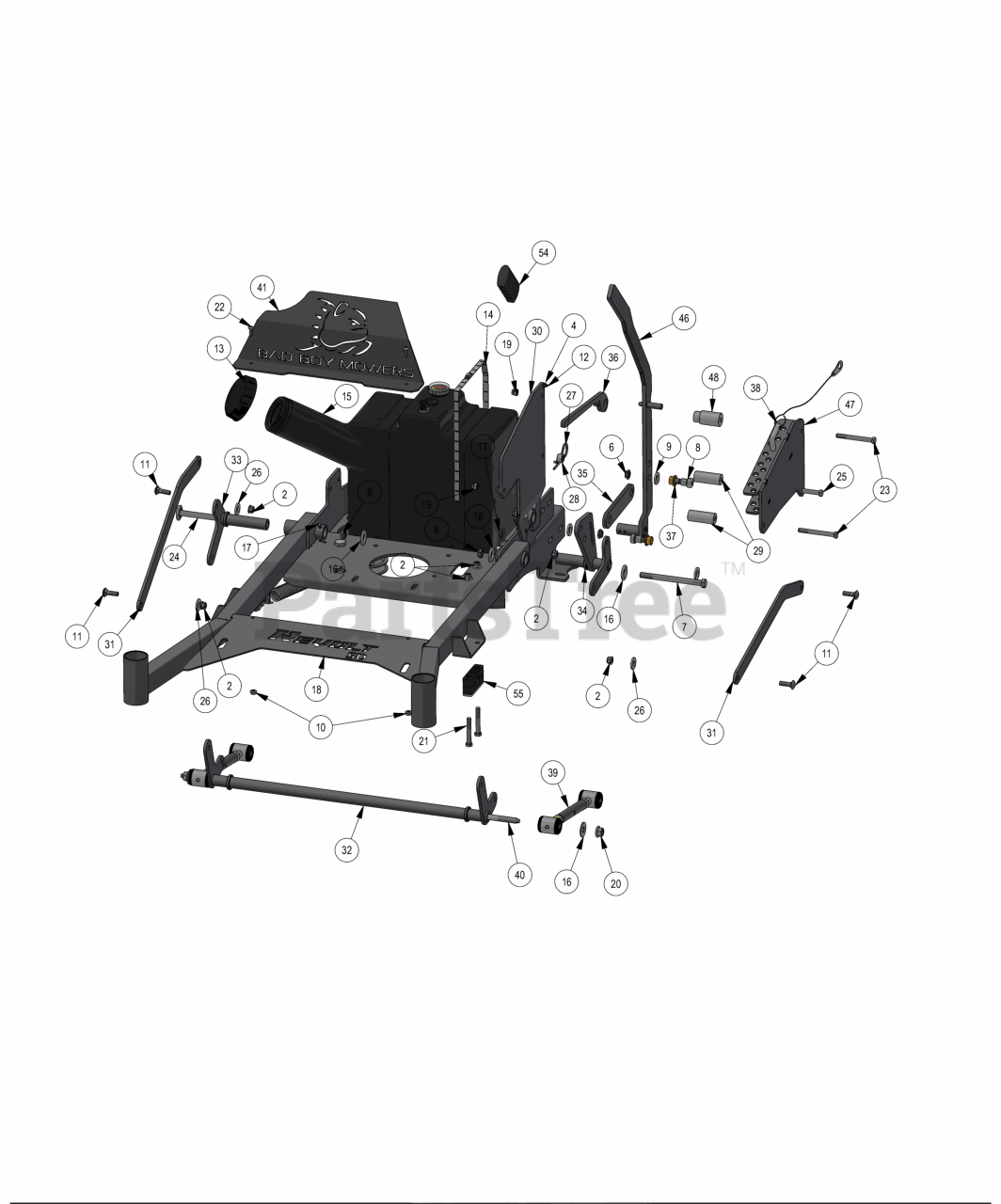

SD FRAME Parts Diagram

  • Title

1

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

46

Bad Boy 031-7151-00

2023 Stand On SD Lift Lever Weldment

$

$

Not available

40

Bad Boy 048-6058-00

2020 36 Stand On Turnbuckle Rod

$45.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

4

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

6

Bad Boy 018-4010-00

1/2-13 Nylon Insert Jam Locknut

$1.99

$

In Stock, Qty 11

0

7

Bad Boy 018-0062-00

1/2-13 X 6 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

9

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

11

Bad Boy 018-5043-00

3/8-16x 1-1/4 Carriage Bolt

$1.49

$

In Stock, Qty 10

0

12

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

13

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

14

Bad Boy 072-0051-00

Tank Strap

$12.99

$

In Stock, only 2 left!

0

15

Bad Boy 067-0030-00

2019 REVOLT FUEL TANK

$287.99

$

Usually ships in 4-7 days

0

16

Bad Boy 019-2040-00

1/2 Flat Washer

$1.99

$

Usually ships in 4-7 days

0

17

Bad Boy 024-3050-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING (NO BALL) ZINC YELLOW

$1.49

$

Usually ships in 4-7 days

0

18

Bad Boy 070-5223-RW

2023 Stand On Frame Weldment -SD

$

$

Currently unavailable

19

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 018-0028-00

3/8-16 x 2 1/2" Hex Bolt

$4.99

$

Usually ships in 4-7 days

0

22

Bad Boy 018-0058-00

1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head

$

$

Currently unavailable

23

Bad Boy 018-1010-00

3/8-16 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 018-1090-00

1/2-13 X 5 1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

25

Bad Boy 018-2005-00

3/8-16 X 4-1/4 HEX CAP SCREW (GR.5) ZINC

$2.99

$

Usually ships in 4-7 days

0

26

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

27

Bad Boy 020-1001-00

Revolt Cotter Pin for 7/8" to 1" shank

$

$

Currently unavailable

28

Bad Boy 025-2004-00

ACS Spacer 3/4x3/8x1/2

$16.99

$

Usually ships in 4-7 days

0

29

Bad Boy 025-5343-00

Stand On Spacer 2.5''

$11.99

$

Usually ships in 4-7 days

0

30

Bad Boy 026-0255-00

2023 SD Inner Adjustment Plate

$

$

Currently unavailable

31

Bad Boy 026-0304-00

2023 SD-36 Stand-on Actuator Linkage

$

$

Currently unavailable

32

Bad Boy 028-0036-00

Revolt Front Actuator Bar Weldment - Raw 2020 36" Black

$79.99

$

Usually ships in 4-7 days

0

33

Bad Boy 028-0037-00

Revolt Rear Actuator Bar Weldment RH 2020 36" Black

$22.99

$

Usually ships in 4-7 days

0

34

Bad Boy 028-0046-00

2023 SD Actuator rear_LH

$

$

Currently unavailable

35

Bad Boy 028-5002-00

2023 lever secondary linkage

$

$

Not available

36

Bad Boy 031-0093-00

2019 Stand On Deck Lever Lock

$25.99

$

Usually ships in 4-7 days

0

37

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK FLANGED BEARING OIL-IMPREG BRNZ

$4.99

$

In Stock, Qty 11

0

38

Bad Boy 040-4004-00

2023 stand on Height Adj Pin

$17.99

$

Usually ships in 4-7 days

0

39

Bad Boy 048-6000-00

2018 Maverick Turnbuckle (Top Link)

$85.99

$

In Stock, only 3 left!

0

41

Bad Boy 026-0311-00

Exhaust Shield SD

$

$

Currently unavailable

42

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

43

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

44

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

45

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

47

Bad Boy 026-0256-00

2023 Stand On Outer Adjustment Plate weldment

$

$

Not available

48

Bad Boy 025-0081-00

Stand On Spacer 2.5'' With shoulder

$15.99

$

Usually ships in 4-7 days

0

49

Bad Boy 039-6947-00

36 Pump Idler Arm Weldment

$34.99

$

Usually ships in 4-7 days

0

50

Bad Boy 033-1876-00

3.25 Flat Idler Pulley

$30.99

$

In Stock, only 2 left!

0

51

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

52

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

53

Bad Boy 019-5010-00

.565 ID X 1.250 OD X .095 THK FLAT WASHER BRASS

$2.99

$

Usually ships in 4-7 days

0

54

Bad Boy 069-4012-00

2019 Stand On Lift Grip

$15.99

$

Usually ships in 4-7 days

0

55

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

56

Bad Boy 024-6034-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING ZINC YELLOW)

$0.99

$

In Stock, only 2 left!

0
