Revolt SD - Bad Boy Stand-On Mower (2025) ENGINE FS600 Parts Diagram

Stand-On Mower

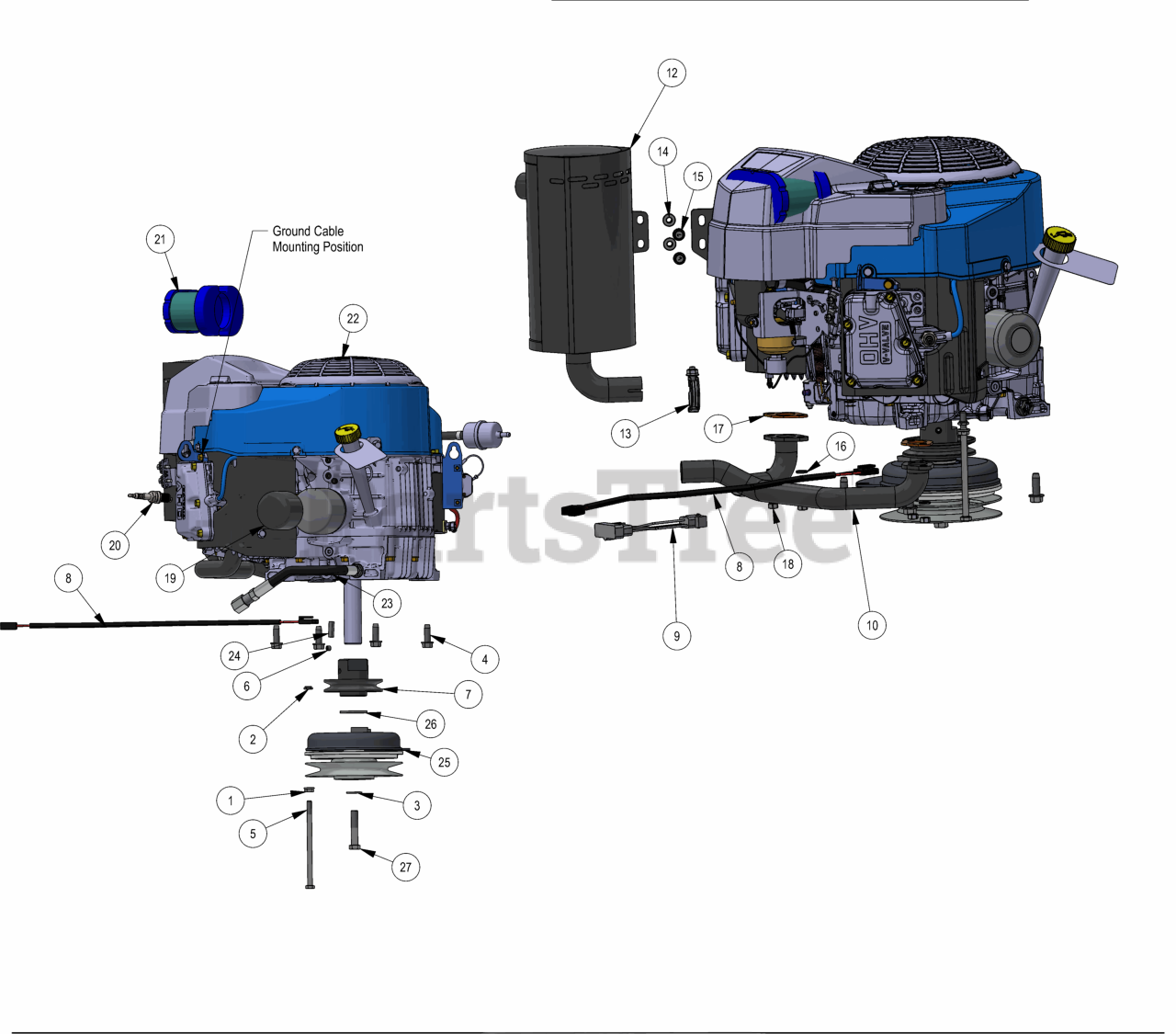

ENGINE FS600 Parts Diagram

  • Title

1

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

19

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-9005-00

5/16-18 Nylock Jam Nut

$3.49

$

Usually ships in 4-7 days

0

3

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

4

Bad Boy 018-1075-00

3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

5

Bad Boy 018-5350-00

5/16-18 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 2 left!

0

6

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 033-2011-00

3-3/4" Motor Pulley SD

$

$

Not available

8

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

9

Bad Boy 086-9002-19

2019 Harness Adaptor-Gen2 FX-ALL

$21.99

$

Usually ships in 4-7 days

0

10

Bad Boy 015-0543-02

Exhaust Pipe

$68.99

$

Usually ships in 0 days

0

11

Bad Boy 015-0543-03

Exhaust Bracket

$11.99

$

Usually ships in 0 days

0

12

Bad Boy 015-0543-01

MUFFLER

$113.99

$

Usually ships in 0 days

0

13

Bad Boy 015-0543-08

Exhaust Clamp

$14.99

$

Usually ships in 0 days

0

14

Bad Boy 015-0543-06

Exhaust Nut

$3.49

$

Usually ships in 4-7 days

0

15

Bad Boy 015-0543-04

Exhaust Flange Bolt

$2.49

$

Usually ships in 4-7 days

0

16

Bad Boy 015-0543-05

Exhaust Lock Washer

$1.49

$

Usually ships in 4-7 days

0

17

Bad Boy 015-0543-07

Exhaust Gasket

$3.49

$

Usually ships in 0 days

0

18

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

In Stock, only 2 left!

0

20

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

21

Bad Boy 063-2097-00

Kawasaki Air Filter

$27.99

$

In Stock, Qty 11

0

22

Bad Boy 015-0087-00

Kawasaki 18.5HP FS600 Electric Start

$

$

Not available

23

Bad Boy 051-5404-00

Oil drain Hose

$45.99

$

In Stock, only 3 left!

0

24

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

25

Bad Boy 070-1000-00

Clutch

$319.99

$

In Stock, Qty 20+

0

26

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

27

Bad Boy 018-0118-00

7/16-20 X 2-1/4 HEX CAP SCREW (GR.8) With Patch

$6.99

$

Usually ships in 0 days

0
