Revolt SD - Bad Boy Stand-On Mower (2024) PODIUM Parts Diagram

Stand-On Mower

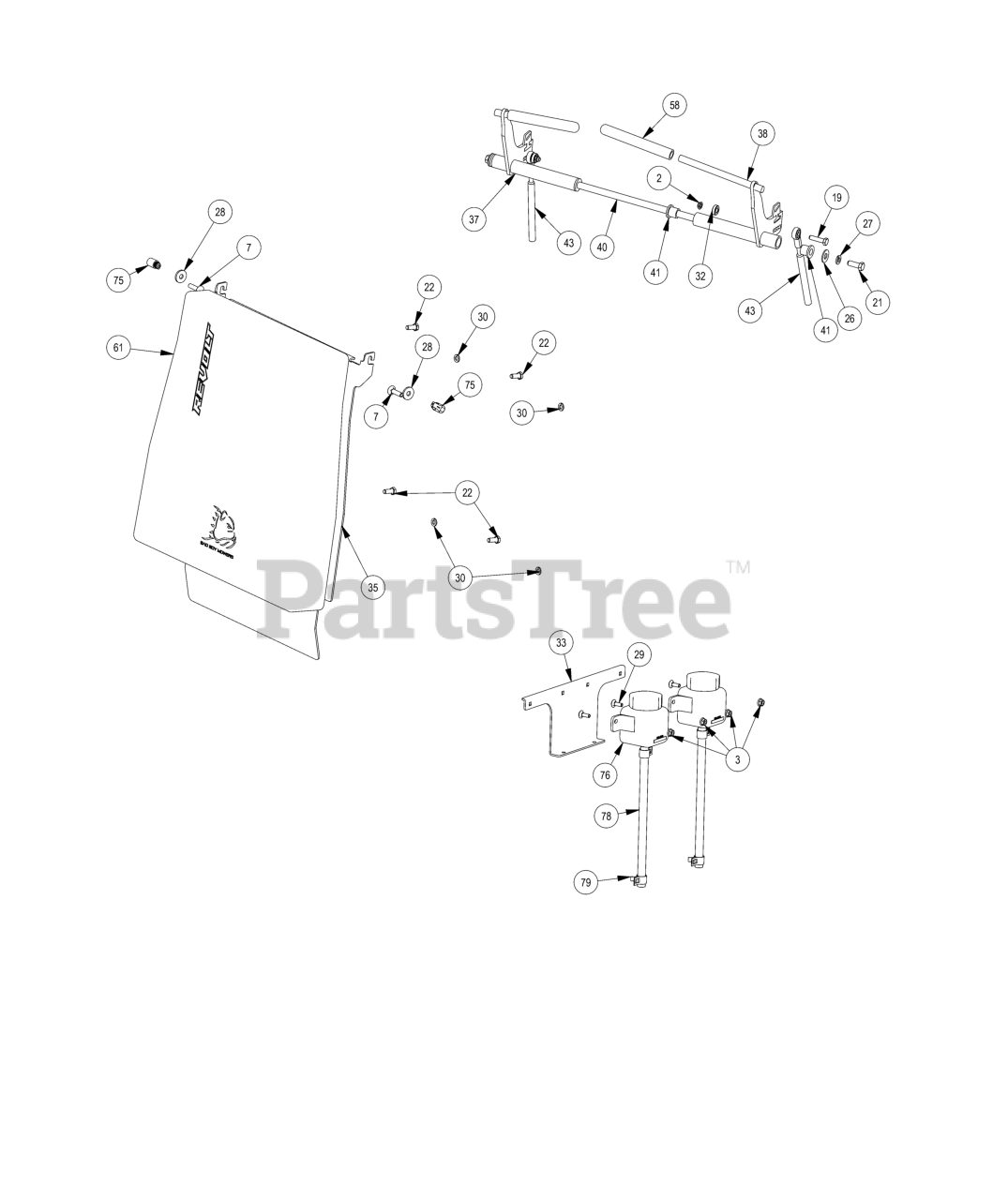

PODIUM Parts Diagram

  • Title

1

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

2

Bad Boy 013-9005-00

5/16-18 Nylock Jam Nut

$3.49

$

Usually ships in 4-7 days

0

3

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

8

Bad Boy 018-5043-00

3/8-16 x 1-1/4 Carriage Bolt

$1.49

$

In Stock, Qty 10

0

9

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

10

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

11

Bad Boy 072-0051-00

Tank Strap

$12.99

$

In Stock, only 2 left!

0

12

Bad Boy 067-0030-00

2019 REVOLT FUEL TANK

$287.99

$

Usually ships in 4-7 days

0

13

Bad Boy 018-0056-00

5/16-18 X 6 CARRIAGE BOLT (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

14

Bad Boy 013-0001-00

8-32 HEX M/S NUT ZINC

$1.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

16

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

18

Bad Boy 018-1080-00

12-24 X 1/2 HEX WASHER UNLSOT F TCS ZINC

$2.49

$

Usually ships in 4-7 days

0

19

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

20

Bad Boy 018-5020-00

5/16-18 X 1-1/2 CARRIAGE BOLT ZINC

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

22

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

24

Bad Boy 019-2003-00

.390 ID X .750 OD X .062 THK FLAT WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

25

Bad Boy 019-2073-00

.390 ID X 1.12 OD X .125 THK FLAT WASHER NYLON

$1.99

$

In Stock, only 3 left!

0

26

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

27

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

28

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

29

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

30

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

31

Bad Boy 024-0016-00

Expandable Locking Grommets

$

$

Not available

32

Bad Boy 025-2001-00

ACS Spacer 3/4x3/8x1/4

$16.99

$

Usually ships in 4-7 days

0

33

Bad Boy 026-0157-00

2020 36" Hydrotank Carrier Plate - Raw 2020 36" Stand On

$

$

Not available

34

Bad Boy 026-0264-00

2023 Stand on Battery Hold Down

$

$

Not available

35

Bad Boy 026-0293-00

2023 36-SD Stand on Pad Plate

$

$

Currently unavailable

36

Bad Boy 031-0034-00

36" Front Control Arm Stop Weldment - Raw 2020 36" Stand On

$34.99

$

Usually ships in 4-7 days

0

37

Bad Boy 031-0048-00

2023 36-SD Stand On Drive Arm Actuator weldment_left

$

$

Not available

38

Bad Boy 031-0049-00

2023 36-SD Stand On Drive Arm Actuator weldment_right

$

$

Not available

39

Bad Boy 031-0061-00

2023 36''/SD Control Arm Stop Weldment_Rear

$

$

Not available

40

Bad Boy 031-0094-00

2020 36 Stand On Drive Arm Pivot Bar

$25.99

$

Usually ships in 4-7 days

0

41

Bad Boy 032-0005-00

Nylon 6 6 Sleeve Washer

$2.49

$

Usually ships in 4-7 days

0

42

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

43

Bad Boy 035-0006-19

2019 Revolt Push Rod Assembly

$49.99

$

Usually ships in 4-7 days

0

44

Bad Boy 039-0242-00

2023 36-SD Stand On Console Bracket Weldment

$

$

Not available

45

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

46

Bad Boy 051-2020-01

1/4" Vinyl Tubing, 46" Long

$13.99

$

Usually ships in 4-7 days

0

47

Bad Boy 051-2025-02

3/16" Vinyl Tubing, 55" Long

$13.99

$

Usually ships in 4-7 days

0

48

Bad Boy 051-8067-08

Revolt Fuel Line Assembly

$

$

Not available

49

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

50

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 3 left!

0

51

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

52

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

53

Bad Boy 064-3000-00

Brake Cable

$33.99

$

In Stock, Qty 9

0

54

Bad Boy 067-0015-02

MZ Kohler EPA Canister Assembly

$60.99

$

Usually ships in 4-7 days

0

55

Bad Boy 068-8051-00

Interstate FAYTX14 Battery

$

$

Not available

56

Bad Boy 069-0002-00

8507A13 McMaster Carr Plunger

$90.99

$

Usually ships in 4-7 days

0

57

Bad Boy 069-2013-00

2019 Stand On Brake Handle - Raw

$125.99

$

Usually ships in 4-7 days

0

58

Bad Boy 069-2014-00

2019 Stand On Control Grip

$8.49

$

Usually ships in 4-7 days

0

59

Bad Boy 069-7000-00

Rubber Brake Grip-cZT/ZT 2013

$6.99

$

In Stock, only 3 left!

0

60

Bad Boy 071-6005-00

2019 Stand On Waterbottle Cage

$24.99

$

Usually ships in 4-7 days

0

61

Bad Boy 071-6017-00

SD Seat Pad

$227.99

$

Usually ships in 4-7 days

0

62

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

0

63

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

64

Bad Boy 077-1000-00

Magnet-Steering Arm-Stand ON

$15.99

$

Usually ships in 4-7 days

0

65

Bad Boy 077-2076-00

USB Port

$49.99

$

In Stock, only 4 left!

0

66

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

67

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

68

Bad Boy 079-4107-00

2023 SD Podium Panel Right

$

$

Not available

69

Bad Boy 079-4108-00

2023 SD Podium Panel Left

$

$

Not available

70

Bad Boy 079-4113-00

36" Podium Front Panel Weldment 2020 Stand On

$113.99

$

Usually ships in 4-7 days

0

71

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

72

Bad Boy 086-0015-00

Safety Switch Harness

$74.99

$

In Stock, only 2 left!

0

73

Bad Boy 091-4056-00

36" Control Panel (upper) - Revolt

$11.99

$

Usually ships in 4-7 days

0

74

Bad Boy 091-4057-00

36" Control Panel (lower) - Revolt

$11.99

$

Usually ships in 4-7 days

0

75

Bad Boy 045-0001-00

Adjustable handles ERX.30 B-10-24-C1

$17.99

$

Usually ships in 4-7 days

0

76

Bad Boy 067-8090-00

350ml Expansion Tank

$33.99

$

In Stock, Qty 9

0

77

Bad Boy 066-5050-00

Hydraulic Tank Cap

$16.99

$

In Stock, only 2 left!

0

78

Bad Boy 051-0016-00

ZT/Maverick Hydro Tank Hose

$9.99

$

Usually ships in 4-7 days

0

79

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

80

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

81

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

82

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0

83

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

$1.49

$

Usually ships in 4-7 days

0

84

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

85

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0
