Revolt SD - Bad Boy Stand-On Mower (2023) TRANSAXLES Parts Diagram

Stand-On Mower

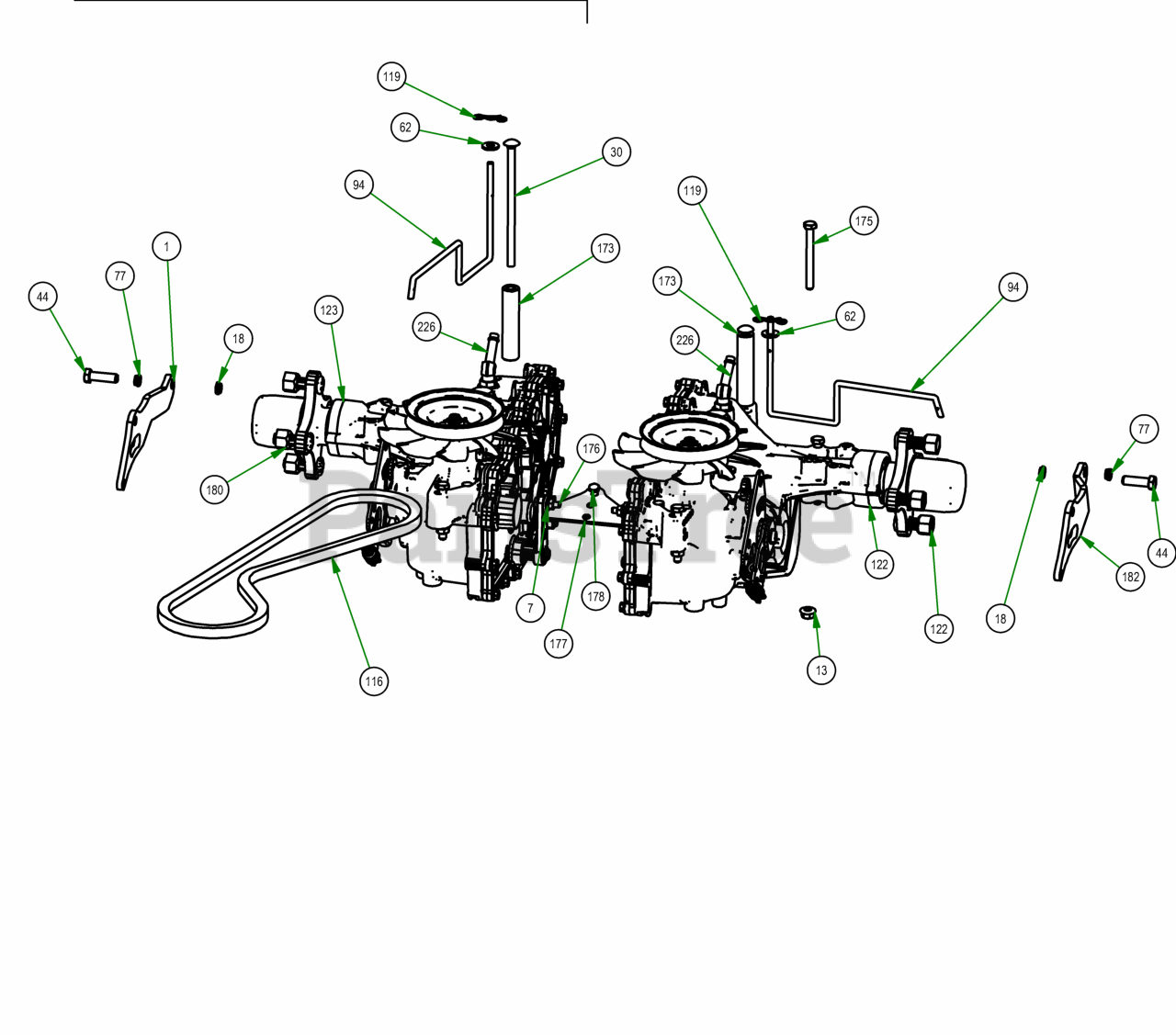

TRANSAXLES Parts Diagram

  • Title

1

Bad Boy 026-0305-00

SD Control Arm Plate RH

$

$

Currently unavailable

7

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 013-5202-00

3/8-16 Nylon Insert Flange Locknut

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

18

Bad Boy 013-9005-00

5/16-18 Nylock Insert Jam Locknut

$3.49

$

Usually ships in 4-7 days

0

30

Bad Boy 018-0056-00

5/16-18 X 6 CARRIAGE BOLT (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

44

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

62

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

77

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

94

Bad Boy 028-0071-00

2019 Stand On Neutral Rod

$31.99

$

Usually ships in 4-7 days

0

116

Bad Boy 041-8001-00

2020 Renegade Pump Belt, 42.99"

$85.99

$

In Stock, Qty 9

0

119

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

122

Bad Boy 050-6002-02

ZK-MMBC-SBKC-1PXX

$934.99

$

Usually ships in 4-7 days

0

123

Bad Boy 050-6003-02

ZK-JMBC-SBKB-1PXX

$

$

Not available

172

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

173

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

174

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

175

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

176

Bad Boy 018-4007-00

1/4-20 X 1 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

177

Bad Boy 039-0151-00

2020 36" Brake Bracket 2020 36" Stand On

$15.99

$

Usually ships in 0 days

0

178

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

179

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

180

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

182

Bad Boy 026-0306-00

SD Control Arm Plate LH

$

$

Currently unavailable

226

Bad Boy 024-1200-00

ZT Fitting, 3/8 x 3/8 45 Degree, 4603-6-6

$21.99

$

Usually ships in 4-7 days

0
