Revolt SD - Bad Boy Stand-On Mower (2023) TIRES AND FRONT SPINDLES Parts Diagram

Stand-On Mower

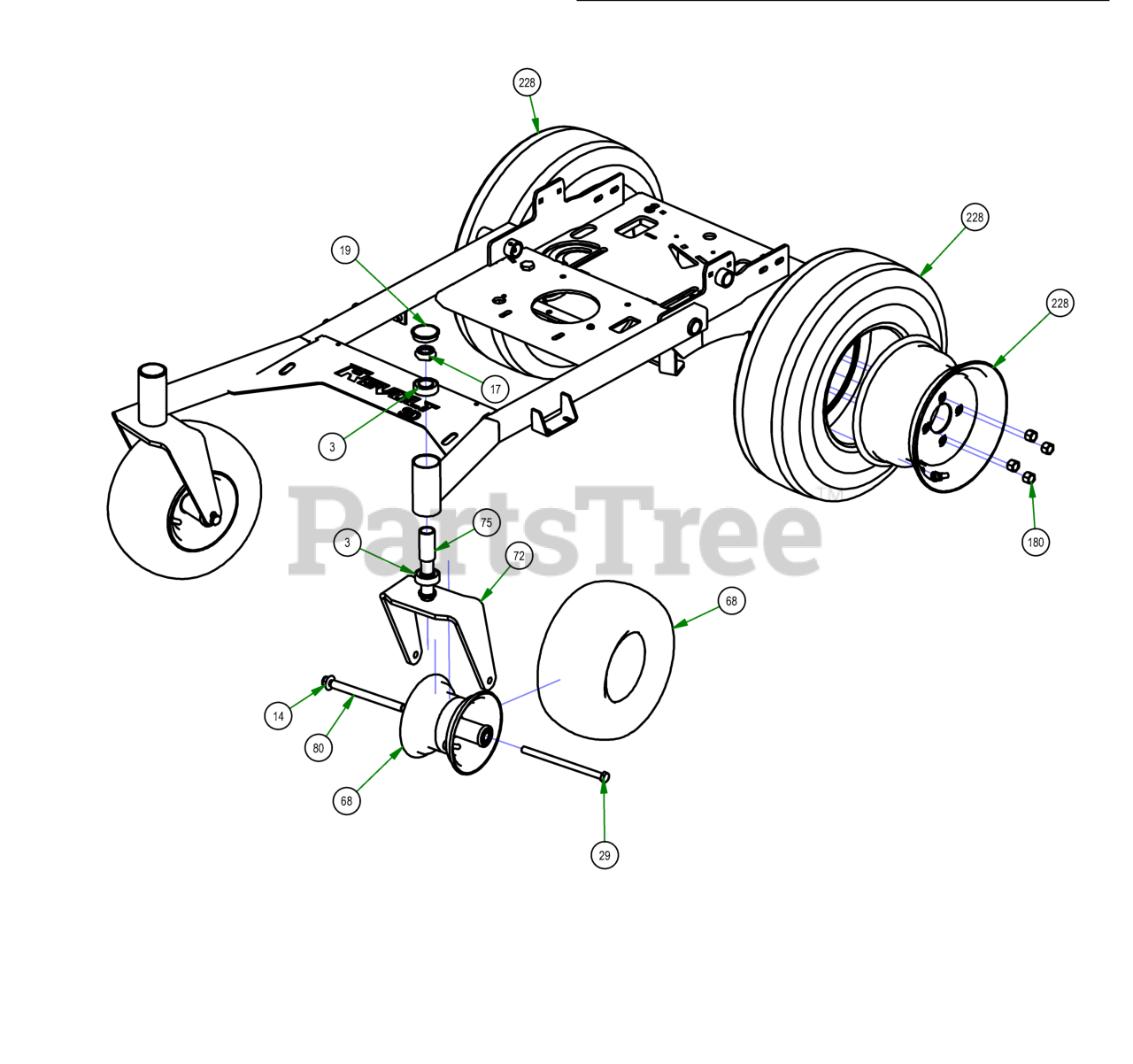

TIRES AND FRONT SPINDLES Parts Diagram

  • Title

3

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Locknut

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

18

Bad Boy 013-9005-00

5/16-18 Nylock Insert Jam Locknut

$3.49

$

Usually ships in 4-7 days

0

19

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

25

Bad Boy 018-0005-00

1-14 x 5 Hex Bolt Grade 8 Zinc Yellow

$7.99

$

In Stock, only 4 left!

0

29

Bad Boy 018-0040-00

1/2" x 8 1/2 GR 5 Hex Bolt

$7.49

$

In Stock, Qty 15

0

42

Bad Boy 018-4010-00

1/2'' Nylock Nut 1/2 Jam

$1.99

$

In Stock, Qty 11

0

56

Bad Boy 019-2040-00

1/2 F/W USS 1- 3/8'' OD

$1.99

$

Usually ships in 4-7 days

0

62

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

68

Bad Boy 022-2017-00

13x6.5-6 Black Tire and Wheel Assembly

$100.99

$

In Stock, Qty 13

0

71

Bad Boy 022-7009-00

1 3/8" Wheel Bearing

$14.99

$

In Stock, Qty 20+

0

72

Bad Boy 023-0003-00

2017 ZT Front Fork

$41.99

$

In Stock, only 3 left!

0

74

Bad Boy 024-3050-00

1/4'' Press in Grease Fitting

$1.49

$

Usually ships in 4-7 days

0

75

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

80

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

132

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

145

Bad Boy 070-5223-00

2023 Stand On Frame Weldment -SD

$1025.99

$

Usually ships in 4-7 days

0

180

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

228

Bad Boy 022-4041-00

21/7x10 Reaper Tire-36 Revolt

$189.99

$

Usually ships in 4-7 days

0
