Revolt SD - Bad Boy Stand-On Mower (2023) SD FRAME Parts Diagram

Stand-On Mower

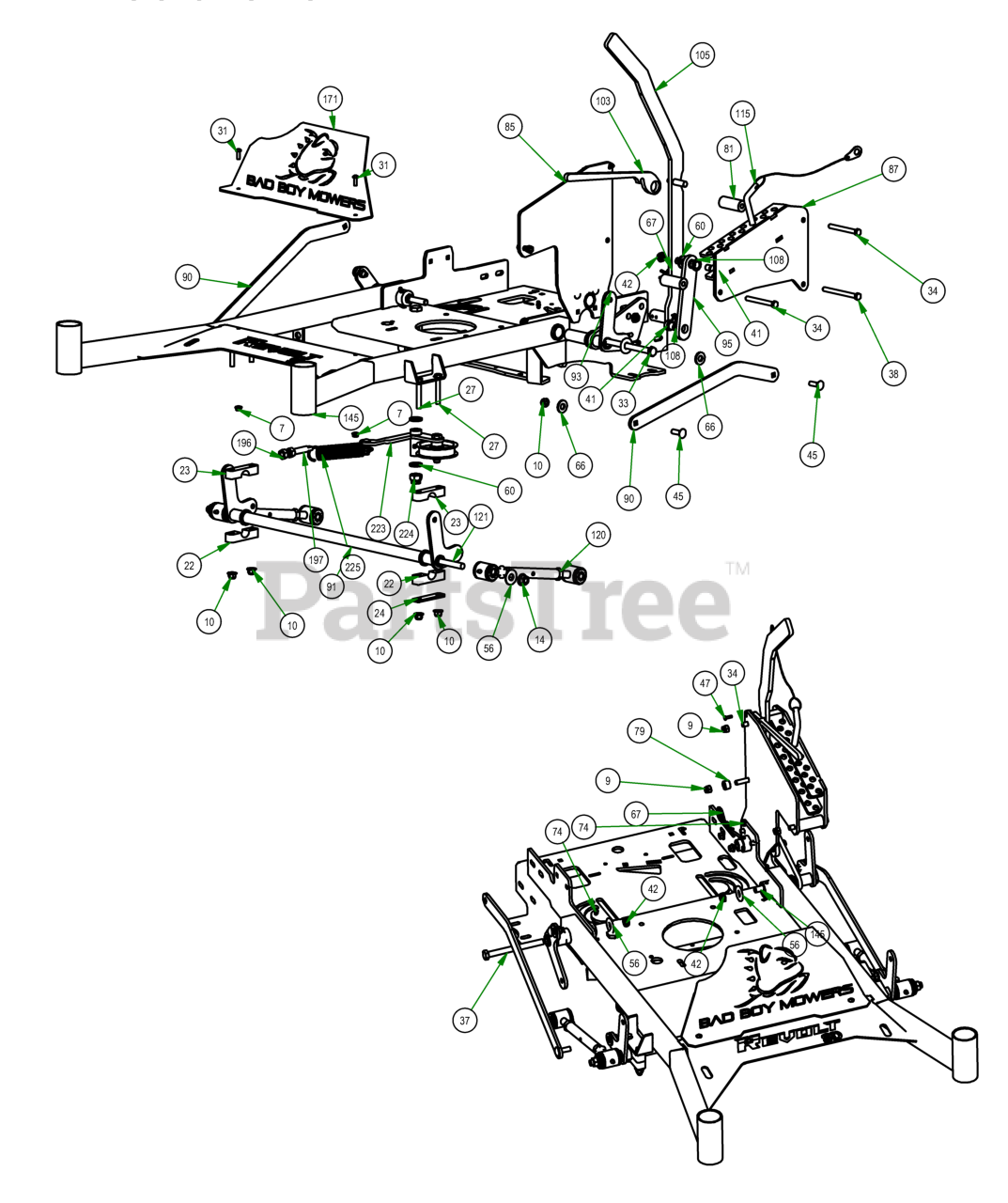

SD FRAME Parts Diagram

  • Title

'38"

Bad Boy 018-2005-00

3/8-16 X 4-1/4 HEX CAP SCREW (GR.5) ZINC

$2.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

8

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 013-5202-00

3/8-16 Nylon Insert Flange Locknut

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Locknut

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

23

Bad Boy 017-9078-00

Pillow Block MZ female

$22.99

$

Usually ships in 0 days

0

24

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

27

Bad Boy 018-0028-00

3/8-16 x 2 1/2" Hex Bolt

$4.99

$

Usually ships in 4-7 days

0

31

Bad Boy 018-0058-00

1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head

$

$

Currently unavailable

33

Bad Boy 018-0062-00

1/2-13 X 6 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

34

Bad Boy 018-1010-00

3/8-16 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

37

Bad Boy 018-1090-00

1/2-13 X 5 1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

41

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

42

Bad Boy 018-4010-00

1/2'' Nylock Nut 1/2 Jam

$1.99

$

In Stock, Qty 11

0

45

Bad Boy 018-5043-00

3/8'' x 1 1/4'' Carriage Bolt

$1.49

$

In Stock, Qty 10

0

47

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

53

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

56

Bad Boy 019-2040-00

1/2 F/W USS 1- 3/8'' OD

$1.99

$

Usually ships in 4-7 days

0

60

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

66

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

67

Bad Boy 020-1001-00

Revolt Cotter Pin for 7/8" to 1" shank

$

$

Currently unavailable

74

Bad Boy 024-3050-00

1/4'' Press in Grease Fitting

$1.49

$

Usually ships in 4-7 days

0

79

Bad Boy 025-2004-00

ACS Spacer 3/4x3/8x1/2

$16.99

$

Usually ships in 4-7 days

0

81

Bad Boy 025-5343-00

Stand On Spacer 2.5''

$11.99

$

Usually ships in 4-7 days

0

85

Bad Boy 026-0255-00

2023 SD Inner Adjustment Plate

$

$

Currently unavailable

86

Bad Boy 026-0257-00

2023 deck pin plate

$

$

Currently unavailable

87

Bad Boy 026-0258-00

2023 Stand On Outer Adjustment Plate

$

$

Currently unavailable

90

Bad Boy 026-0304-00

2023 SD-36 Stand-on Actuator Linkage

$

$

Currently unavailable

91

Bad Boy 028-0036-00

Revolt Front Actuator Bar Weldment - Raw 2020 36" Black

$79.99

$

Usually ships in 4-7 days

0

92

Bad Boy 028-0037-00

Revolt Rear Actuator Bar Weldment RH 2020 36" Black

$22.99

$

Usually ships in 4-7 days

0

93

Bad Boy 028-0046-00

2023 SD Actuator rear_LH

$

$

Currently unavailable

95

Bad Boy 028-5002-00

2023 lever secondary linkage

$

$

Not available

103

Bad Boy 031-0093-00

2019 Stand On Deck Lever Lock

$25.99

$

Usually ships in 4-7 days

0

105

Bad Boy 031-7147-00

2023 Revolt SD Lift Handle

$

$

Currently unavailable

106

Bad Boy 031-7152-00

SD Stand on Lever Pivot Actuator Rod

$

$

Currently unavailable

108

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK FLANGED BEARING OIL-IMPREG BRNZ

$4.99

$

In Stock, Qty 11

0

114

Bad Boy 040-4003-00

Lift Handle Stop Tab

$

$

Currently unavailable

115

Bad Boy 040-4004-00

2023 stand on Height Adj Pin

$17.99

$

Usually ships in 4-7 days

0

120

Bad Boy 048-6000-00

2018 Maverick Turnbuckle (Top Link)

$85.99

$

In Stock, only 3 left!

0

121

Bad Boy 048-6058-00

2020 36 Stand On Turnbuckle Rod

$45.99

$

Usually ships in 4-7 days

0

145

Bad Boy 070-5223-00

2023 Stand On Frame Weldment -SD

$1025.99

$

Usually ships in 4-7 days

0

171

Bad Boy 026-0311-00

Exhaust Shield SD

$

$

Currently unavailable

196

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

197

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

223

Bad Boy 039-6947-20

2020 36" Stand-On Drive Belt Pulley Assembly

$62.99

$

Usually ships in 4-7 days

0

224

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

225

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!
