Revolt SD - Bad Boy Stand-On Mower (2023) FENDERS Parts Diagram

Stand-On Mower

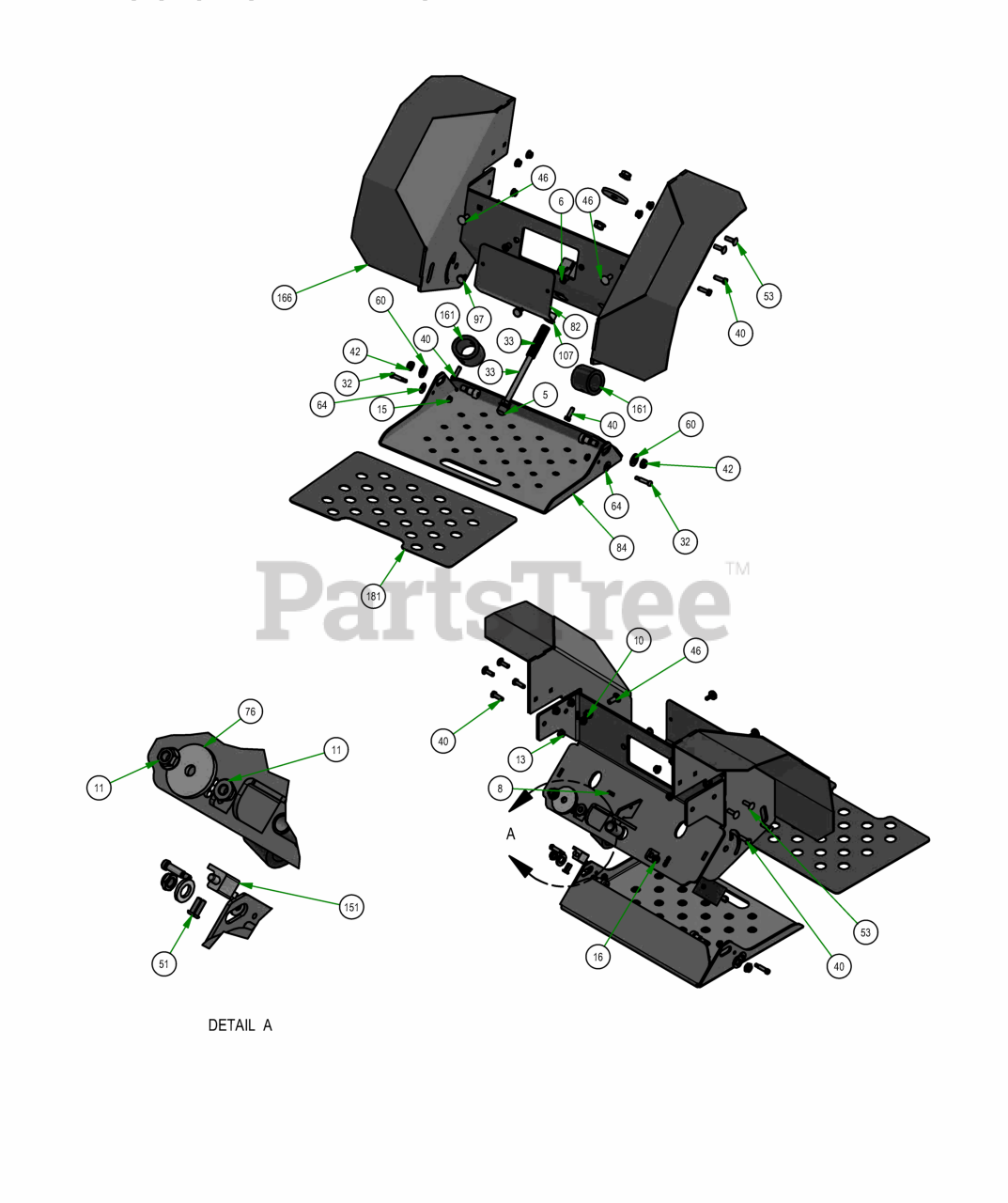

FENDERS Parts Diagram

  • Title

5

Bad Boy 013-0029-00

Hex Nut Cap

$5.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-0057-00

3326 Wellnut (1/4-20 x 5/18")

$4.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 013-5202-00

3/8-16 Nylon Insert Flange Locknut

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

13

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

15

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

16

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

32

Bad Boy 018-0059-00

Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"

$4.99

$

In Stock, only 4 left!

0

33

Bad Boy 018-0062-00

1/2-13 X 6 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

40

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

41

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

42

Bad Boy 018-4010-00

1/2'' Nylock Nut 1/2 Jam

$1.99

$

In Stock, Qty 11

0

46

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

51

Bad Boy 018-8057-00

10-24 X 3/4 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

Usually ships in 4-7 days

0

53

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

60

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

64

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

76

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

82

Bad Boy 026-0063-00

2019 Stand On Access Panel Plate Black Part

$37.99

$

Usually ships in 4-7 days

0

84

Bad Boy 026-0158-00

2020 36" Stand-On Platform Plate-RAW

$118.99

$

Usually ships in 4-7 days

0

97

Bad Boy 030-0015-00

1/4"-20 x 3/4" Knurled Thumb Screw

$17.99

$

Usually ships in 4-7 days

0

107

Bad Boy 032-0005-00

Nylon 6 6 Sleeve Washer

$2.49

$

Usually ships in 4-7 days

0

110

Bad Boy 034-1001-00

Rider Presence Spring 9657K145

$13.99

$

Usually ships in 4-7 days

0

151

Bad Boy 077-0002-00

safety Switch

$24.99

$

In Stock, only 2 left!

0

161

Bad Boy 087-0003-00

GBR-647 Miner Elastomer

$90.99

$

In Stock, only 4 left!

0

166

Bad Boy 201-1123-00

2023 SD 34 Platform Support

$

$

Not available

181

Bad Boy 088-0051-00

Grip Tape for 026-0158-00

$27.99

$

Usually ships in 4-7 days

0
