Revolt SD - Bad Boy Stand-On Mower (2023) ENGINE Parts Diagram
Stand-On Mower

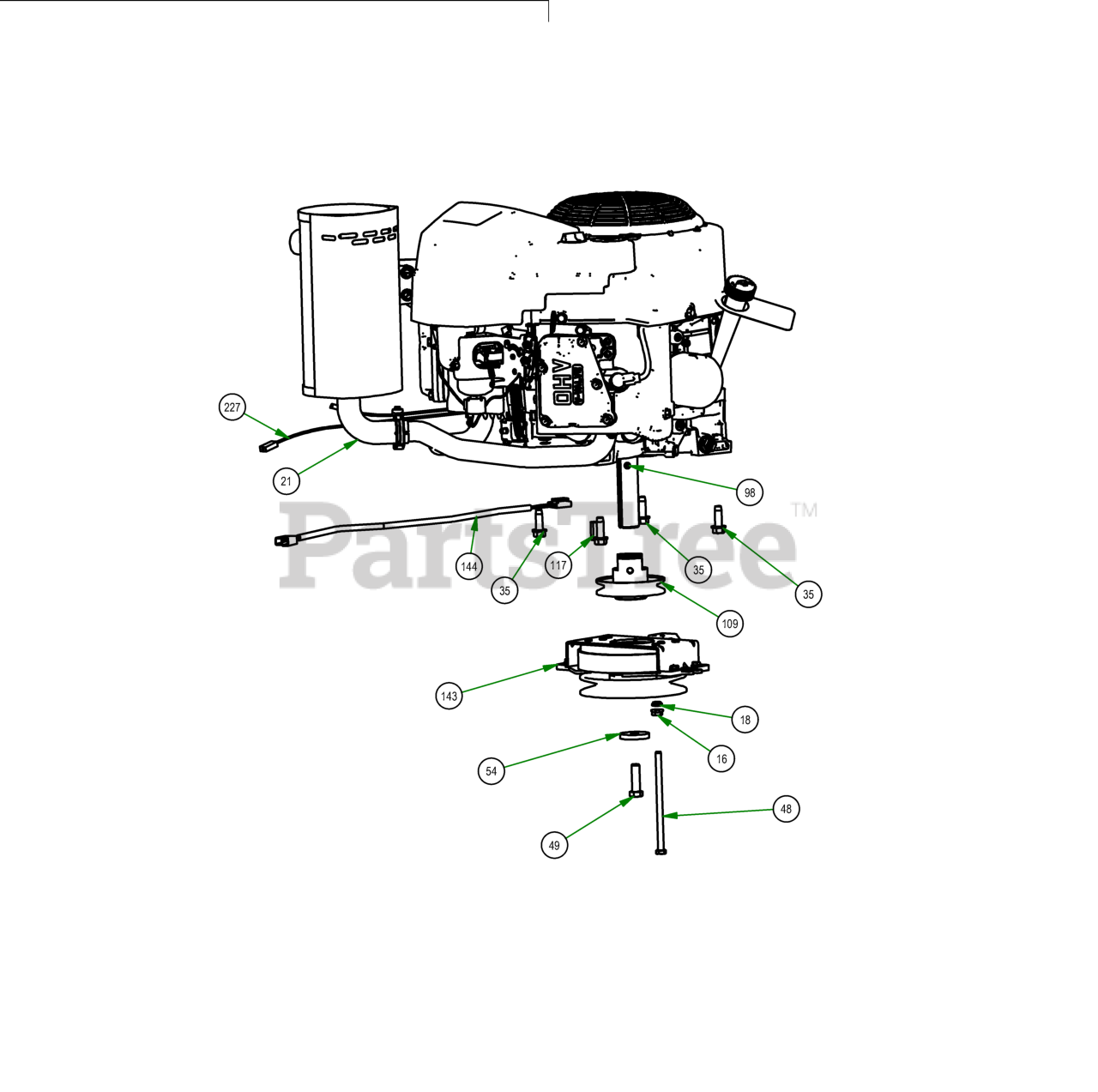

ENGINE Parts Diagram
Bad Boy 013-9002-00
5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC
$0.99
$
In Stock, Qty 10
Bad Boy 013-9005-00
5/16-18 Nylock Insert Jam Locknut
$3.49
$
Usually ships in 4-7 days
Bad Boy 015-0543-00
Exhaust Assembly
$250.99
$
Usually ships in 4-7 days
Bad Boy 018-1075-00
3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW
$1.99
$
In Stock, Qty 11
Bad Boy 018-5350-00
5/16-18 X 5-1/2 HEX CAP SCREW (GR.5) ZINC
$2.49
$
In Stock, only 2 left!
Bad Boy 018-5450-21
7/16-20 X 1-1/2 HEX CAP SCREW (GR.8) w/ Patch
$0.99
$
In Stock, only 2 left!
Bad Boy 019-0010-00
CLUTCH WASHER
$6.49
$
In Stock, only 4 left!
Bad Boy 030-0050-00
5/16 Set Screw
$1.99
$
In Stock, Qty 20+
Bad Boy 033-2011-00
3-3/4" Motor Pulley SD
$
$
Not available
Bad Boy 042-6030-00
1/4" x 1" Key
$4.99
$
In Stock, Qty 20+
Bad Boy 070-0056-00
Clutch
$415.99
$
Usually ships in 4-7 days
Bad Boy 070-2000-00
Clutch Pigtail
$22.99
$
In Stock, Qty 20+
Bad Boy 086-9002-00
Harness Adaptor
$49.99
$
Usually ships in 4-7 days
