Revolt SD - Bad Boy Stand-On Mower (2023) 34'' DECK Parts Diagram

Stand-On Mower

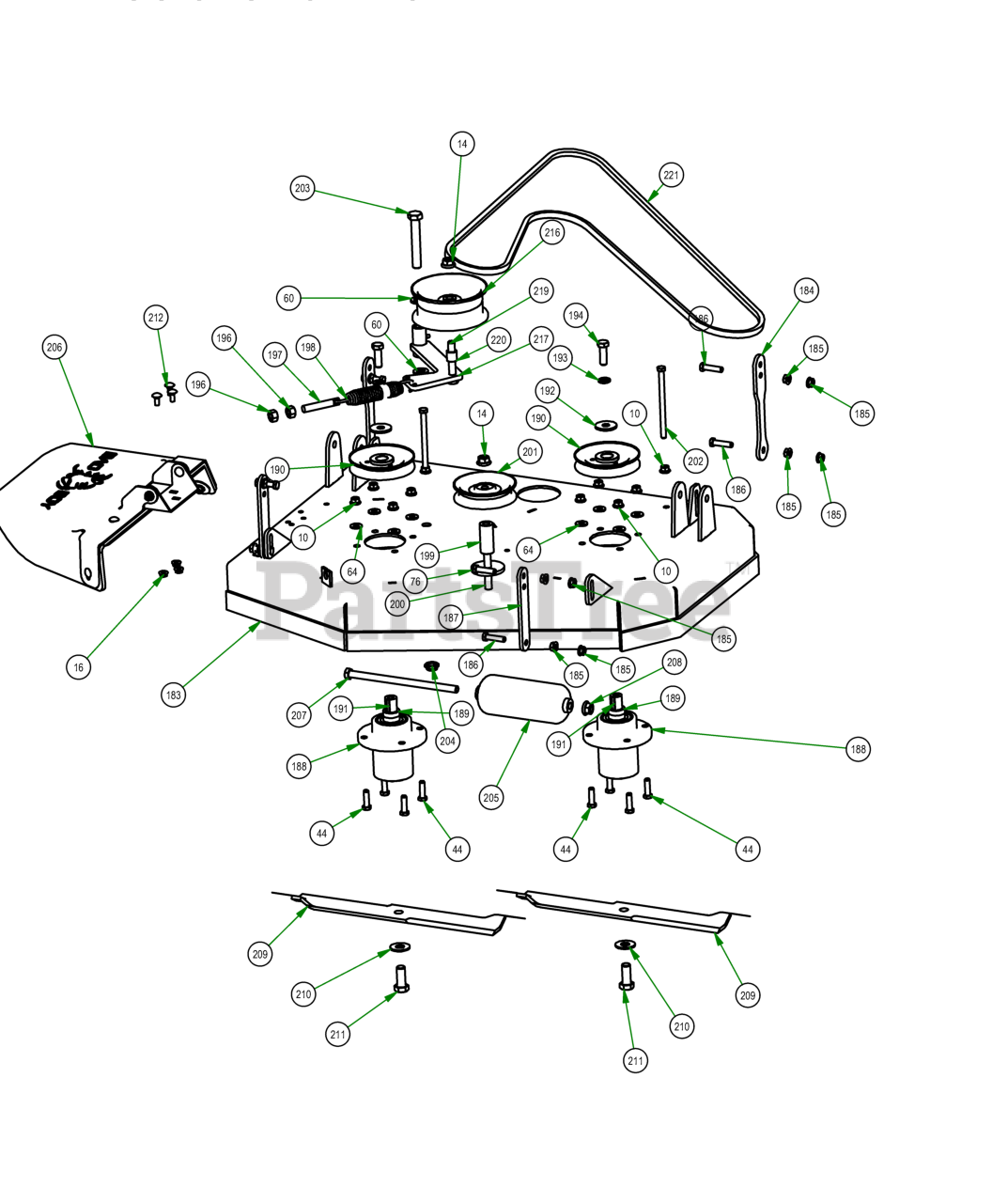

34'' DECK Parts Diagram

  • Title

10

Bad Boy 013-5202-00

3/8-16 Nylon Insert Flange Locknut

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Locknut

$1.99

$

In Stock, Qty 20+

0

16

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

44

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

60

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

64

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

76

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

183

Bad Boy 060-1134-00

2023 34 Stand On Deck Weldment

$

$

Currently unavailable

184

Bad Boy 039-2128-00

2019 Stand-On Rear Deck Hanger

$15.99

$

Usually ships in 4-7 days

0

185

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

186

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

187

Bad Boy 039-2129-00

2019 Revolt Front Deck Hanger

$17.99

$

Usually ships in 4-7 days

0

188

Bad Boy 037-2002-00

36'' Revolt Spindle Assembly

$242.99

$

In Stock, only 3 left!

0

189

Bad Boy 025-0060-00

36 Deck Spindle Spacer

$6.99

$

Usually ships in 4-7 days

0

190

Bad Boy 033-4820-00

MZ Deck Pulley

$33.99

$

In Stock, Qty 15

0

191

Bad Boy 042-0010-00

3/16 X 1 SQ MACHINERY KEY 1018 STL ZINC

$4.99

$

In Stock, Qty 19

0

192

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

0

193

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

194

Bad Boy 018-6019-00

1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 20+

0

196

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

197

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 5

0

198

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 18

0

199

Bad Boy 025-0032-00

2019 Revolt Stationary Idle Spacer

$8.99

$

Usually ships in 4-7 days

0

200

Bad Boy 018-7050-00

1/2-13 X 4-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, Qty 13

0

201

Bad Boy 033-7026-00

5 V Idler Pulley 1/2" Bore

$37.99

$

Usually ships in 4-7 days

0

202

Bad Boy 018-7060-00

3/8-16 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

203

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

204

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

205

Bad Boy 822-2055-00

3in deck roller

$27.99

$

Usually ships in 4-7 days

0

206

Bad Boy 210-6015-98

MZ Discharge Chute Assembly

$166.99

$

In Stock, only 4 left!

0

207

Bad Boy 018-7010-00

1/2-13 X 9 HEX CAP SCREW (GR.5) ZINC

$6.49

$

In Stock, Qty 17

0

208

Bad Boy 013-0010-00

1/2-13 HEX FLANGE AUTO OVAL LOCKNUT (GR.F) ZINC/WAX

$1.49

$

In Stock, only 3 left!

0

209

Bad Boy 038-0036-00

34'' DeckBlade

$24.99

$

In Stock, Qty 13

0

210

Bad Boy 019-5038-00

5/8'' Flat Washer

$1.99

$

In Stock, Qty 20+

0

211

Bad Boy 018-6020-00

5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.99

$

In Stock, Qty 20+

0

212

Bad Boy 018-8062-00

5/16-18 x 3/4 Carriage Bolt

$0.99

$

Usually ships in 4-7 days

0

216

Bad Boy 033-5000-00

5 3/4" Deck Idler Pulley

$60.99

$

In Stock, Qty 5

0

217

Bad Boy 039-6952-00

2020 36 Deck Idler Arm Weldment

$11.99

$

Usually ships in 4-7 days

0

218

Bad Boy 024-0001-00

1/4-28 Grease Fitting

$0.99

$

Usually ships in 4-7 days

0

219

Bad Boy 018-7016-00

1/2-13 X 3 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

220

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 15

0

221

Bad Boy 041-4024-00

34'' deck belt 94.25''

$77.99

$

In Stock, only 2 left!

0
