Revolt - Bad Boy Stand-On Mower (2023) FRONT END Parts Diagram

Stand-On Mower

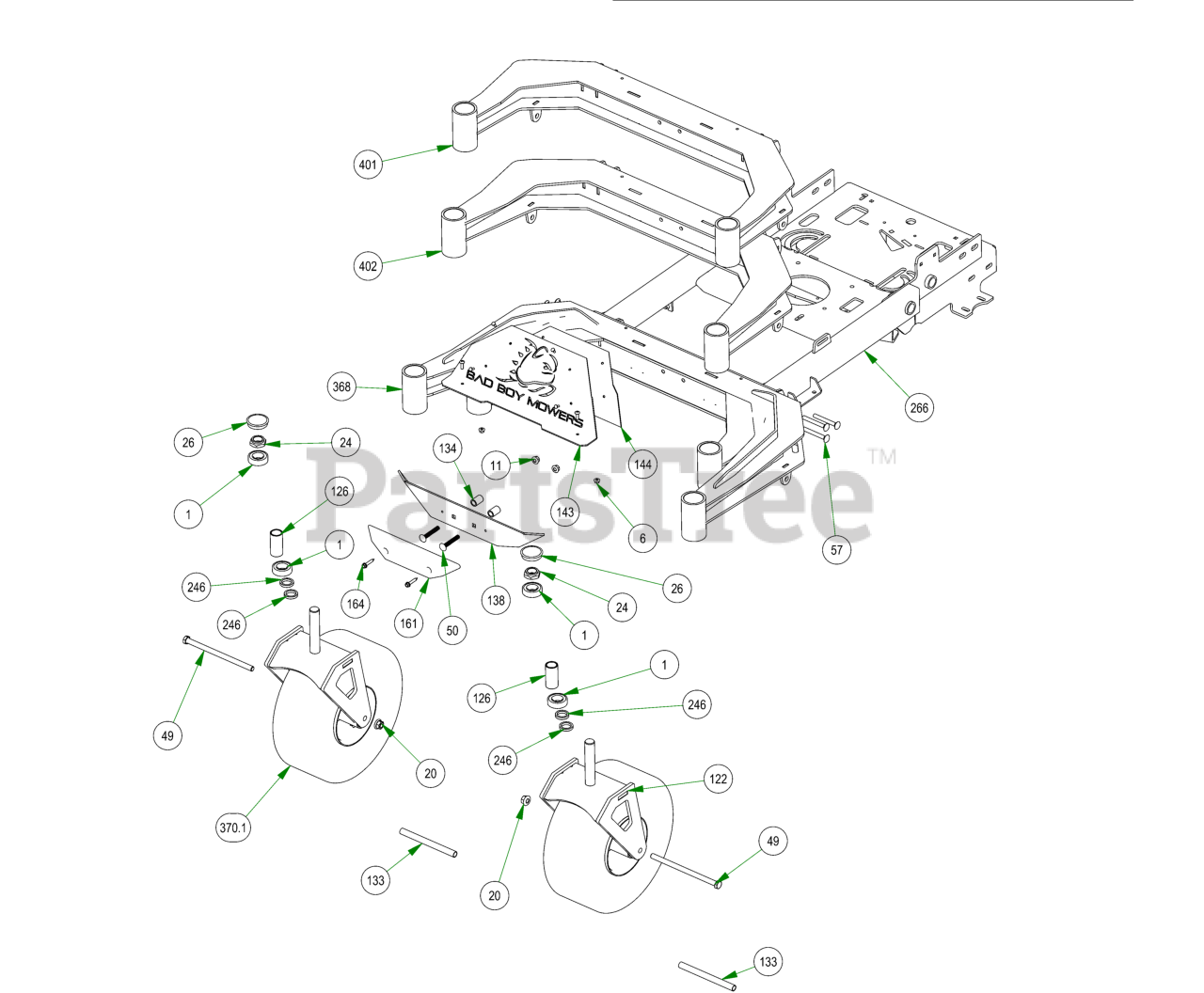

FRONT END Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-0026-00

3/16" Diameter Black Rivet, for 0.1260"-0.25" Material Thick

$3.49

$

Usually ships in 4-7 days

0

6

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

11

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

20

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

24

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 8

0

26

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

41

Bad Boy 018-0005-00

1"-14 X 5 HEX CAP SCREW (GR.8) ZINC YELLOW

$7.99

$

In Stock, only 4 left!

0

46

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

49

Bad Boy 018-0040-00

1/2-13 X 8-1/2 HEX CAP SCREW (GR.5) ZINC

$7.49

$

In Stock, Qty 15

0

50

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

54

Bad Boy 018-0058-00

1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head

$

$

Currently unavailable

57

Bad Boy 018-0072-00

3/8-16 X 3 CARRIAGE BOLT ZINC GR5

$2.49

$

Usually ships in 4-7 days

0

122

Bad Boy 023-1010-00

2019 Stand-on Front Fork Weldment

$166.99

$

In Stock, only 4 left!

0

126

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

133

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

134

Bad Boy 025-5337-00

SPACER

$4.99

$

In Stock, only 2 left!

0

138

Bad Boy 026-0049-00

2019 Stand On Front Bumper Plate

$28.99

$

Usually ships in 4-7 days

0

143

Bad Boy 026-0084-00

Exhaust Shield Plate 2019 Stand On

$14.99

$

Usually ships in 4-7 days

0

144

Bad Boy 026-0085-00

Exhaust Backer Plate 2019 Stand On

$17.99

$

Usually ships in 4-7 days

0

161

Bad Boy 029-7040-00

Bumper EZT

$33.99

$

Usually ships in 4-7 days

0

164

Bad Boy 030-7039-00

1/4-14 X 1-1/2 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

246

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 5

0

265

Bad Boy 070-5220-19

2019 Stand On Frame

$854.99

$

Usually ships in 4-7 days

0

266

Bad Boy 070-5221-20

2020 36" Stand On Frame

$

$

Not available

368

Bad Boy 070-9062-00

2023 Stand-On 61 Front End Weldment

$148.99

$

Usually ships in 4-7 days

0

370

Bad Boy 022-3088-00

13x6.00-6 Non Pneumatic Black Front Assembly

$166.99

$

In Stock, Qty 20+

0

401

Bad Boy 070-9049-00

2023 Stand-On 48 Front End Weldment

$

$

Not available

402

Bad Boy 070-9055-00

2023 Stand-On 54 Front End Weldment

$148.99

$

Usually ships in 4-7 days

0

420

Bad Boy 070-9037-00

2023 36 Stand-On Front End Weldment

$

$

Not available

428

Bad Boy 022-3088-00

13x6.50-6 Black No Flat Assembly

$166.99

$

In Stock, Qty 20+

0

370.1

Bad Boy 022-0004-00

15x6-6 Tire Only

$91.99

$

Usually ships in 4-7 days

0

370.2

Bad Boy 022-7010-00

1-3/4" Bearing-Large Bore Front Rim

$21.99

$

In Stock, Qty 16

0
