Bad Boy Revolt - Bad Boy Stand-On Mower (2023) 36" DECK ASSEMBLY Parts Lookup with Diagrams

10

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

11

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

13

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

16

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

19

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

20

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

62

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 5

77

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

82

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

86

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

87

Bad Boy 018-6019-00

1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 20+

88

Bad Boy 018-6020-00

5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.99

$

In Stock, Qty 20+

91

Bad Boy 018-6054-00

1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 3 left!

92

Bad Boy 018-7049-00

1/2-13 X 4-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

93

Bad Boy 018-7050-00

1/2-13 X 4-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, Qty 14

94

Bad Boy 018-7060-00

3/8-16 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

98

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

102

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

105

Bad Boy 019-5038-00

5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW

$1.99

$

In Stock, Qty 20+

106

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

107

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

113

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

117

Bad Boy 022-1001-00

2019 Deck Wheel

$18.99

$

In Stock, Qty 20+

127

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

128

Bad Boy 025-0032-00

2019 Revolt Stationary Idle Spacer

$8.99

$

Usually ships in 4-7 days

129

Bad Boy 025-0060-00

36 Deck Spindle Spacer

$6.99

$

Usually ships in 4-7 days

179

Bad Boy 033-4820-00

MZ Deck Pulley

$33.99

$

In Stock, Qty 15

184

Bad Boy 033-7026-00

5 V Idler Pulley 1/2" Bore

$37.99

$

Usually ships in 4-7 days

188

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 18

193

Bad Boy 037-2002-00

36'' Revolt Spindle Assembly

$242.99

$

In Stock, only 3 left!

196

Bad Boy 038-3010-00

52" Deck Fusion Blade

$24.99

$

In Stock, Qty 20+

206

Bad Boy 039-2128-00

2019 Stand-On Rear Deck Hanger

$15.99

$

Usually ships in 4-7 days

207

Bad Boy 039-2129-00

2019 Revolt Front Deck Hanger

$17.99

$

Usually ships in 4-7 days

220

Bad Boy 041-8054-00

2020 Walk-Behind 36 Deck Belt

$85.99

$

In Stock, Qty 6

221

Bad Boy 042-0010-00

3/16 X 1 SQ MACHINERY KEY 1018 STL ZINC

$4.99

$

In Stock, Qty 19

330

Bad Boy 210-6016-98

2020 36 Stand On Discharge Assembly

$166.99

$

Usually ships in 4-7 days

365

Bad Boy 084-5005-00

2023 MZ Stripping Kit Rubber

$60.99

$

Usually ships in 4-7 days

403

Bad Boy 026-0307-00

*Varies*

$11.99

$

Usually ships in 4-7 days

405

Bad Boy 060-2330-00

2023 36'' DECK

$

Not available 

434

Bad Boy 039-6952-98

2020 36" Revolt Deck Idler Assembly

$75.99

$

Usually ships in 4-7 days

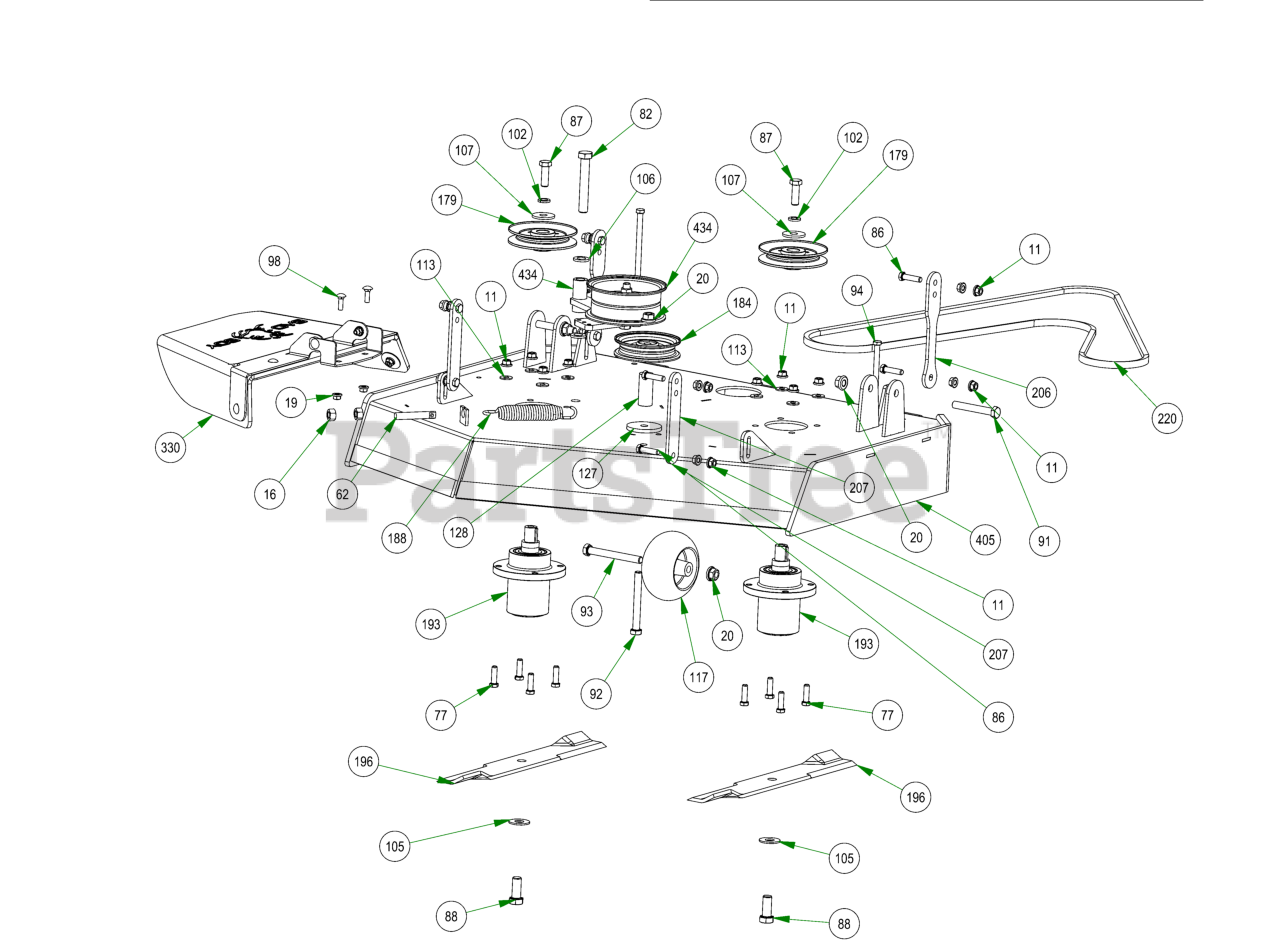

Revolt - Bad Boy Stand-On Mower (2023) 36" DECK ASSEMBLY Parts Diagram

36" DECK ASSEMBLY Parts Diagram
