Revolt - Bad Boy Stand-On Mower (2022) REAR ASSEMBLY Parts Diagram

Stand-On Mower

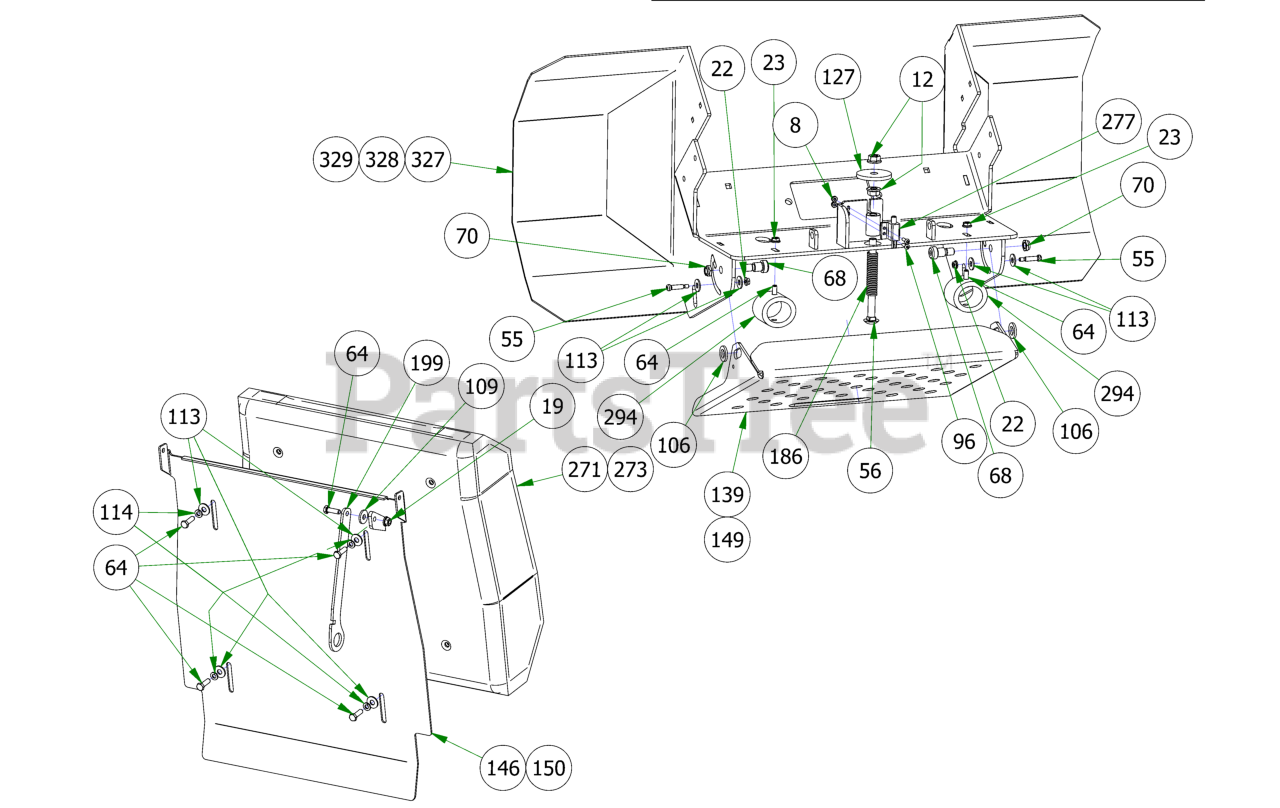

REAR ASSEMBLY Parts Diagram

  • Title

4

Bad Boy 013-0057-00

3326 Wellnut (1/4-20 x 5/18")

$4.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

12

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

19

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

23

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

55

Bad Boy 018-0059-00

Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"

$4.99

$

In Stock, only 4 left!

0

56

Bad Boy 018-0069-00

1⁄2-13 x 6 Carriage Bolt, 2” min threads, Grade 2

$38.99

$

Usually ships in 4-7 days

0

64

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

67

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

68

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

70

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

73

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

77

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

78

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

95

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

96

Bad Boy 018-8057-00

10-24 X 3/4 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

Usually ships in 4-7 days

0

99

Bad Boy 019-2003-00

.390 ID X .750 OD X .062 THK FLAT WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

106

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

109

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

113

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

114

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

127

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

139

Bad Boy 026-0062-00

2019 Stand On Platform Plate

$37.99

$

Usually ships in 4-7 days

0

140

Bad Boy 026-0063-00

2019 Stand On Access Panel Plate Black Part

$37.99

$

Usually ships in 4-7 days

0

146

Bad Boy 026-0096-00

Pad Plate Weldment

$105.99

$

Usually ships in 4-7 days

0

148

Bad Boy 026-0157-00

2020 36" Hydrotank Carrier Plate 2020 36" Stand On

$

$

Not available

149

Bad Boy 026-0158-00

2020 36" Revolt Platform Plate-Powdercoated

$118.99

$

Usually ships in 4-7 days

0

150

Bad Boy 026-0159-00

36" Pad Plate Weldment 2020 36" Stand On

$79.99

$

Usually ships in 4-7 days

0

186

Bad Boy 034-1001-00

Rider Presence Spring 9657K145

$13.99

$

Usually ships in 4-7 days

0

199

Bad Boy 039-0082-00

Operator Pad Kickstand

$30.99

$

Usually ships in 4-7 days

0

256

Bad Boy 067-8090-03

Hydro Tank Assembly

$45.99

$

Usually ships in 4-7 days

0

266

Bad Boy 070-5221-20

2020 36" Stand On Frame

$

$

Not available

271

Bad Boy 071-6004-22

2022 Stand-On Revolt Platform Pad

$240.99

$

Usually ships in 4-7 days

0

273

Bad Boy 071-6006-22

2022 36" Revolt Seat Pad

$302.99

$

Usually ships in 4-7 days

0

277

Bad Boy 077-0002-00

safety Switch

$24.99

$

In Stock, only 2 left!

0

294

Bad Boy 087-0003-00

GBR-647 Miner Elastomer

$90.99

$

In Stock, only 4 left!

0

297

Bad Boy 088-0050-00

Grip Tape for 026-0062-00

$22.99

$

Usually ships in 4-7 days

0

298

Bad Boy 088-0051-00

Grip Tape for 026-0158-00

$27.99

$

Usually ships in 4-7 days

0

301

Bad Boy 091-0015-00

EPA Build Date Punch Label

$3.99

$

Usually ships in 4-7 days

0

309

Bad Boy 091-4002-22

2022 Powered By Vanguard Decal

$6.49

$

Usually ships in 4-7 days

0

310

Bad Boy 091-4003-22

2022 Powered By Kawasaki Decal

$2.99

$

Usually ships in 4-7 days

0

315

Bad Boy 091-4021-00

2019 Revolt 726cc Decal Set

$8.49

$

Usually ships in 4-7 days

0

316

Bad Boy 091-4022-00

2019 Revolt Pump Belt Route Decal

$6.49

$

Usually ships in 4-7 days

0

317

Bad Boy 091-4031-00

2019 Revolt Fender Decal - Pair

$11.99

$

Usually ships in 4-7 days

0

319

Bad Boy 091-4053-00

810cc Revolt EFI Fender Decal

$11.99

$

Usually ships in 0 days

0

320

Bad Boy 091-4054-00

852cc Revolt EFI Fender Decal

$17.99

$

Usually ships in 4-7 days

0

323

Bad Boy 091-4058-00

36" Revolt Deck Belt Route Decal

$

$

Not available

327

Bad Boy 201-1118-20

2020 61" Stand On Platform Support Welded Assembly

$238.99

$

Usually ships in 4-7 days

0

328

Bad Boy 201-1119-20

2020 36" Stand On Platform Support Welded Assembly

$170.99

$

Usually ships in 0 days

0

329

Bad Boy 201-1120-19

2019 48"-54" Stand On Platform Support Welded Assembly

$210.99

$

Usually ships in 4-7 days
