Revolt - Bad Boy Stand-On Mower (2022) DECK HEIGHT LEVER ASSEMBLY Parts Diagram

Stand-On Mower

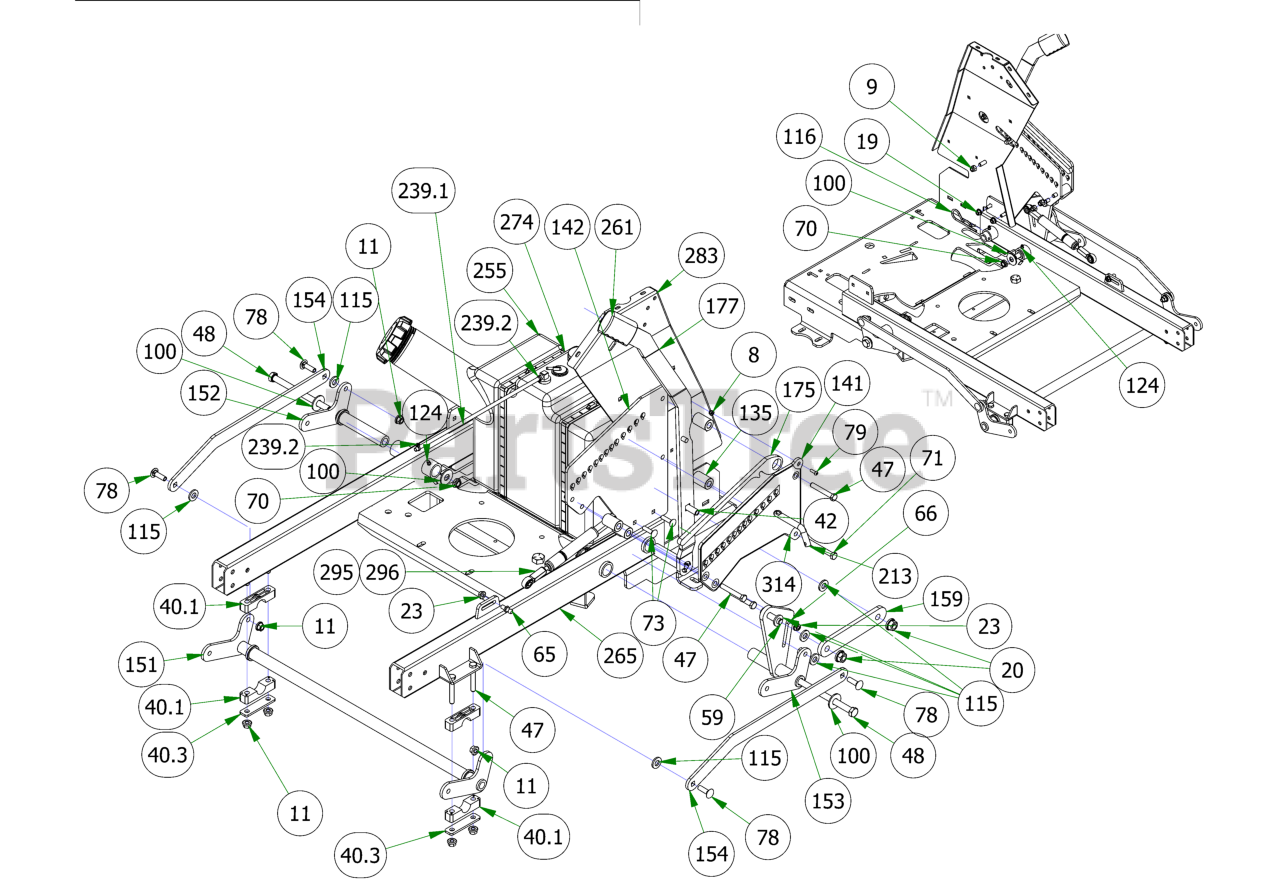

DECK HEIGHT LEVER ASSEMBLY Parts Diagram

  • Title

8

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

20

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

23

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

40

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

42

Bad Boy 018-0008-00

1/2-13 X 1-1/2 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

47

Bad Boy 018-0028-00

3/8-16 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

48

Bad Boy 018-0038-00

1/2-13 X 6 1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

59

Bad Boy 018-0102-00

1/2-13 x 1 3/4" GR5 Hex Bolt

$

$

Currently unavailable

65

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

66

Bad Boy 018-2055-00

10mm Damper Ball Stud-XP Linkage

$2.49

$

In Stock, only 4 left!

0

70

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

71

Bad Boy 018-4700-00

3/8-16 X 3 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

73

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

78

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

79

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

100

Bad Boy 019-2040-00

1/2 F/W USS (1-3/8" OD) ZINCC

$1.99

$

Usually ships in 4-7 days

0

115

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

116

Bad Boy 020-1001-00

Revolt Cotter Pin for 7/8" to 1" shank

$

$

Currently unavailable

124

Bad Boy 024-3050-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING (NO BALL) ZINC

$1.49

$

Usually ships in 4-7 days

0

135

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

141

Bad Boy 026-0082-00

Outer Adjustment Plate 2019 Stand On

$34.99

$

Usually ships in 0 days

0

142

Bad Boy 026-0083-00

Inner Adjustment Plate 2019 Stand On

$

$

Currently unavailable

151

Bad Boy 028-0028-00

Revolt Front Actuator Bar Weldment Black

$37.99

$

Usually ships in 4-7 days

0

152

Bad Boy 028-0029-00

Rear Actuator Bar Weldment - RH

$116.99

$

Usually ships in 4-7 days

0

153

Bad Boy 028-0030-00

Rear Actuator Bar Weldment - LH Black

$116.99

$

Usually ships in 4-7 days

0

154

Bad Boy 028-0033-00

Revolt Actuator Linkage - BLACK

$10.99

$

Usually ships in 4-7 days

0

159

Bad Boy 028-5001-00

Lever Secondary Linkage Revolt Black

$13.99

$

Usually ships in 4-7 days

0

175

Bad Boy 031-0093-00

2019 Stand On Deck Lever Lock

$25.99

$

Usually ships in 4-7 days

0

177

Bad Boy 031-7146-00

2019 Stand On Deck Lift Lever Welded Assembly

$105.99

$

Usually ships in 4-7 days

0

213

Bad Boy 040-4001-00

Height Adj Pin

$15.99

$

Usually ships in 4-7 days

0

239

Bad Boy 051-8067-15

15" Revolt Fuel Line Assembly

$9.49

$

Usually ships in 0 days

0

255

Bad Boy 067-0030-00

2019 REVOLT FUEL TANK

$287.99

$

Usually ships in 4-7 days

0

261

Bad Boy 069-4012-00

2019 Stand On Lift Grip

$15.99

$

Usually ships in 4-7 days

0

265

Bad Boy 070-5220-19

2019 Stand On Frame

$854.99

$

Usually ships in 4-7 days

0

274

Bad Boy 072-0051-00

2019 Stand On Gas Tank Strap

$12.99

$

In Stock, only 2 left!

0

283

Bad Boy 079-4111-00

LH Podium Panel

$39.99

$

Usually ships in 4-7 days

0

295

Bad Boy 087-5400-00

200 lb Gas Spring- 54" Deck outlaw

$66.99

$

Usually ships in 4-7 days

0

296

Bad Boy 087-6100-00

250lb Gas Spring - 61" Deck

$83.99

$

In Stock, only 2 left!

0

314

Bad Boy 091-4020-22

2022 Revolt Deck Height Decal

$

$

Not available

40.1

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

40.3

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

239.1

Bad Boy 051-8067-00

1/4" Fuel Line Hose

$6.99

$

In Stock, only 3 left!

0

239.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0
