Revolt - Bad Boy Stand-On Mower (2022) DECK HEIGHT - 36" ONLY Parts Diagram

Stand-On Mower

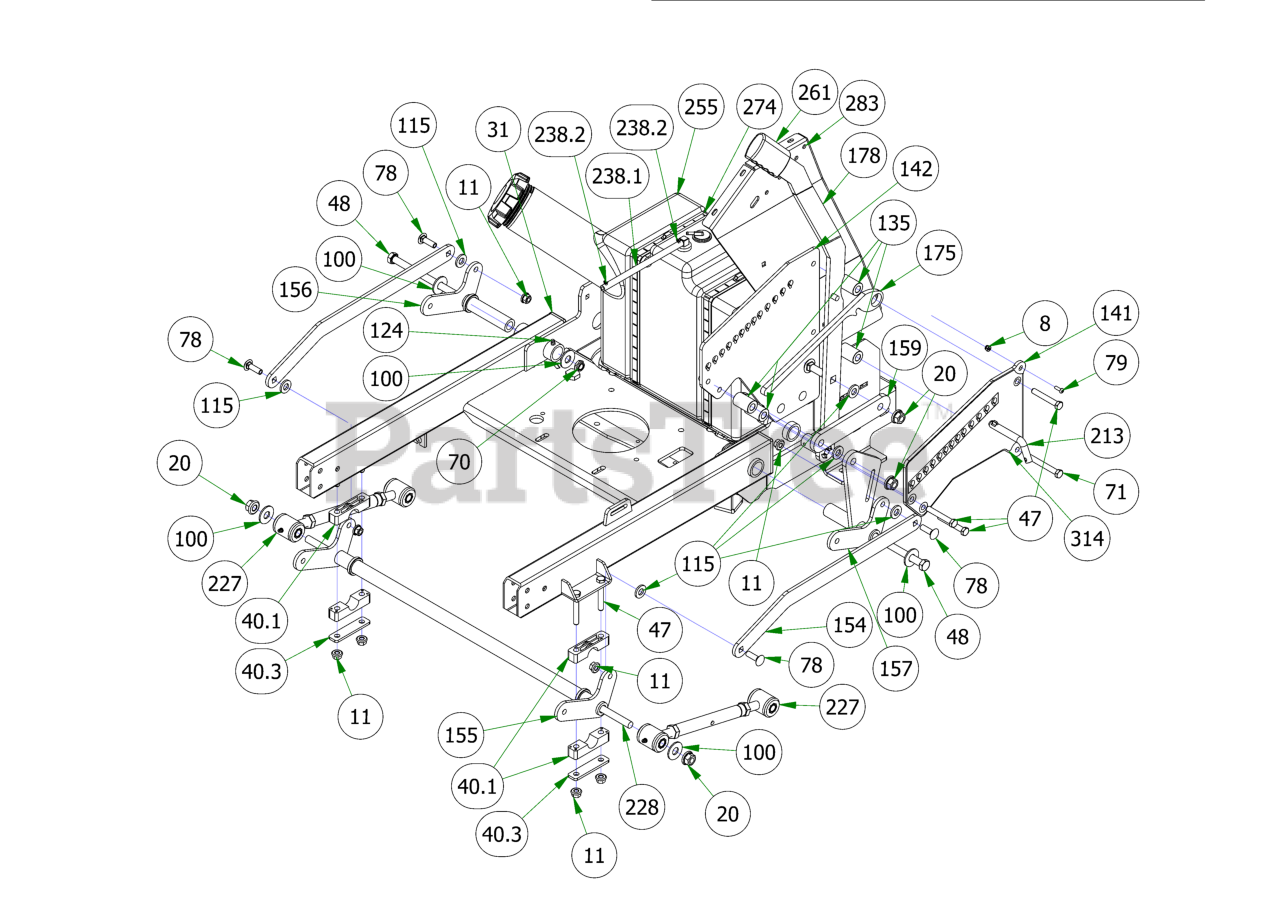

DECK HEIGHT - 36" ONLY Parts Diagram

  • Title

8

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

20

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

31

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

40

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

42

Bad Boy 018-0008-00

1/2-13 X 1-1/2 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

47

Bad Boy 018-0028-00

3/8-16 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

48

Bad Boy 018-0038-00

1/2-13 X 6 1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

59

Bad Boy 018-0102-00

1/2-13 x 1 3/4" GR5 Hex Bolt

$

$

Currently unavailable

70

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

71

Bad Boy 018-4700-00

3/8-16 X 3 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

73

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

78

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

79

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

100

Bad Boy 019-2040-00

1/2 F/W USS (1-3/8" OD) ZINCC

$1.99

$

Usually ships in 4-7 days

0

115

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

116

Bad Boy 020-1001-00

Revolt Cotter Pin for 7/8" to 1" shank

$

$

Currently unavailable

124

Bad Boy 024-3050-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING (NO BALL) ZINC YELLOW

$1.49

$

Usually ships in 4-7 days

0

135

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

141

Bad Boy 026-0082-00

Outer Adjustment Plate 2019 Stand On

$34.99

$

Usually ships in 0 days

0

142

Bad Boy 026-0083-00

Inner Adjustment Plate 2019 Stand On

$

$

Currently unavailable

154

Bad Boy 028-0033-00

Revolt Actuator Linkage - BLACK

$10.99

$

Usually ships in 4-7 days

0

155

Bad Boy 028-0036-00

Revolt Front Actuator Bar Weldment 2020 36" Black

$79.99

$

Usually ships in 4-7 days

0

156

Bad Boy 028-0037-00

Revolt Rear Actuator Bar Weldment RH 2020 36" Black

$22.99

$

Usually ships in 4-7 days

0

157

Bad Boy 028-0038-00

Revolt Rear Actuator Bar Weldment LH 2020 36" Black

$

$

Not available

159

Bad Boy 028-5001-00

Lever Secondary Linkage Revolt Black

$13.99

$

Usually ships in 4-7 days

0

175

Bad Boy 031-0093-00

2019 Stand On Deck Lever Lock

$25.99

$

Usually ships in 4-7 days

0

178

Bad Boy 031-7148-00

2020 36" Stand On Deck Lift Lever Welded Assembly

$79.99

$

Usually ships in 4-7 days

0

213

Bad Boy 040-4001-00

Height Adj Pin

$15.99

$

Usually ships in 4-7 days

0

227

Bad Boy 048-6000-00

2018 Maverick Turnbuckle (Top Link)

$85.99

$

In Stock, only 3 left!

0

228

Bad Boy 048-6058-00

2020 36 Stand On Turnbuckle Rod

$45.99

$

Usually ships in 4-7 days

0

238

Bad Boy 051-8067-08

Revolt Fuel Line Assembly

$

$

Not available

255

Bad Boy 067-0030-00

2019 REVOLT FUEL TANK

$287.99

$

Usually ships in 4-7 days

0

261

Bad Boy 069-4012-00

2019 Stand On Lift Grip

$15.99

$

Usually ships in 4-7 days

0

266

Bad Boy 070-5221-20

2020 36" Stand On Frame

$

$

Not available

274

Bad Boy 072-0051-00

2019 Stand On Gas Tank Strap

$12.99

$

In Stock, only 2 left!

0

283

Bad Boy 079-4111-00

LH Podium Panel

$39.99

$

Usually ships in 4-7 days

0

314

Bad Boy 091-4020-22

2022 Revolt Deck Height Decal

$

$

Not available

40.1

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

40.3

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

238.1

Bad Boy 051-8067-00

1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

238.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0
