Revolt - Bad Boy Stand-On Mower (2022) 36" DECK ASSEMBLY Parts Diagram

Stand-On Mower

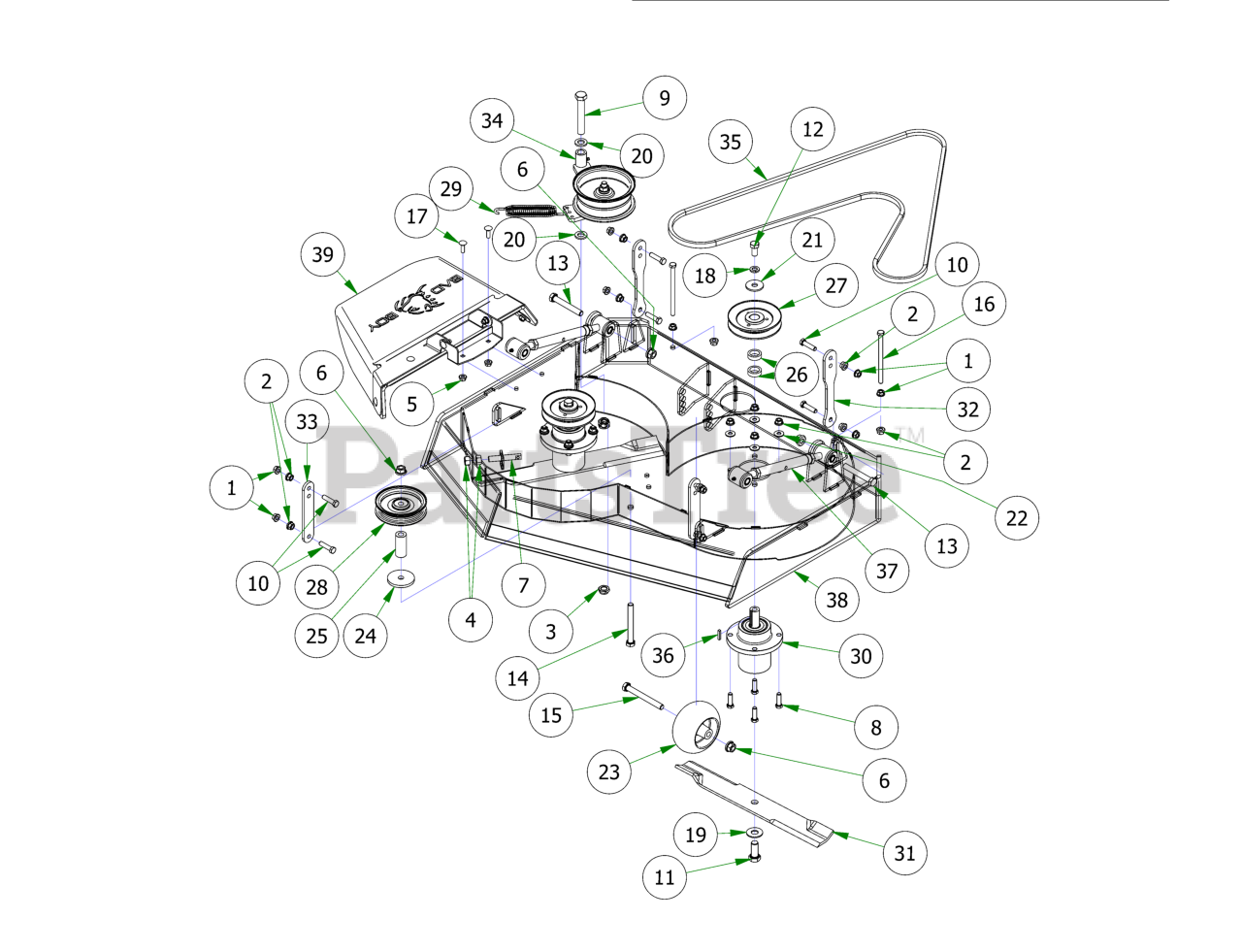

36" DECK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

8

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

9

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

10

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

11

Bad Boy 018-6020-00

5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.99

$

In Stock, Qty 20+

0

12

Bad Boy 018-6023-00

1/2-20 x 1 Hex Frade 5 ZC

$

$

Currently unavailable

13

Bad Boy 018-6054-00

1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 3 left!

0

14

Bad Boy 018-7049-00

1/2-13 X 4-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-7050-00

1/2-13 X 4-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, Qty 14

0

16

Bad Boy 018-7060-00

3/8-16 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

17

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

18

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

19

Bad Boy 019-5038-00

5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW

$1.99

$

In Stock, Qty 20+

0

20

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

21

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

0

22

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

23

Bad Boy 022-1001-00

2019 Deck Wheel

$18.99

$

In Stock, Qty 20+

0

24

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

25

Bad Boy 025-0032-00

2019 Revolt Stationary Idle Spacer

$8.99

$

Usually ships in 4-7 days

0

26

Bad Boy 025-0060-00

36 Deck Spindle Spacer

$6.99

$

Usually ships in 4-7 days

0

27

Bad Boy 033-4820-00

MZ Deck Pulley

$33.99

$

In Stock, Qty 15

0

28

Bad Boy 033-7026-00

5 V Idler Pulley 1/2" Bore

$37.99

$

Usually ships in 4-7 days

0

29

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 18

0

30

Bad Boy 037-2002-00

36'' Revolt Spindle Assembly

$242.99

$

In Stock, only 3 left!

0

31

Bad Boy 038-3010-00

52" Deck Fusion Blade

$24.99

$

In Stock, Qty 20+

0

32

Bad Boy 039-2128-00

2019 Stand-On Rear Deck Hanger

$15.99

$

Usually ships in 4-7 days

0

33

Bad Boy 039-2129-00

2019 Revolt Front Deck Hanger

$17.99

$

Usually ships in 4-7 days

0

34

Bad Boy 039-6952-98

2020 36" Revolt Deck Idler Assembly

$75.99

$

Usually ships in 4-7 days

0

35

Bad Boy 041-8054-00

2020 Walk-Behind 36 Deck Belt

$85.99

$

In Stock, Qty 6

0

36

Bad Boy 042-0010-00

3/16 X 1 SQ MACHINERY KEY 1018 STL ZINC

$4.99

$

In Stock, Qty 19

0

37

Bad Boy 048-6000-00

2018 Maverick Turnbuckle (Top Link)

$85.99

$

In Stock, only 3 left!

0

38

Bad Boy 060-1136-20

2020 Stand On 36" Sloped Deck Welded Assembly

$683.99

$

Usually ships in 4-7 days

0

39

Bad Boy 210-6016-98

2020 36 Stand On Discharge Assembly

$166.99

$

Usually ships in 4-7 days
