Revolt - Bad Boy Stand-On Mower (2020) TRANSAXLE ASSEMBLY Parts Diagram

Stand-On Mower

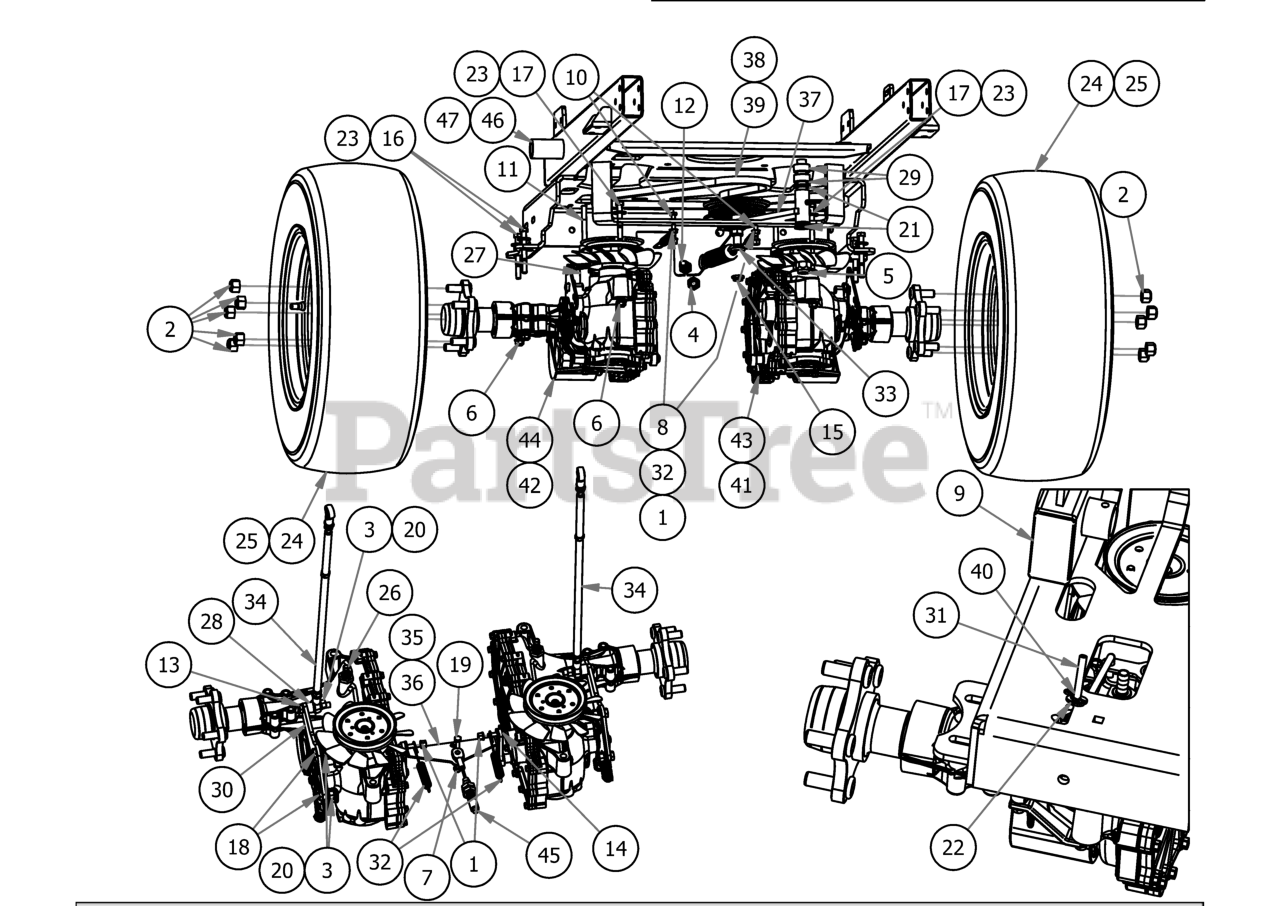

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 Nylon Insert Flange Nut

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

3

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 013-7018-00

1/2-13 Hex Nuts Zinc

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC (NOT ON 36)

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

7

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 4 left!

0

9

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-0011-00

1/4-20 x 2 Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

11

Bad Boy 018-0056-00

5/16x6 Carriage Bolt-Grade 5

$3.49

$

Usually ships in 4-7 days

0

12

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, Qty 5

0

13

Bad Boy 018-3000-00

3/8"-16 x 2" Gr 5 Hex Bolt

$1.49

$

In Stock, Qty 8

0

14

Bad Boy 018-4007-00

1/4-20 x 1 GR 5 hex bolt zinc

$1.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

16

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

19

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 3 left!

0

20

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

21

Bad Boy 019-6017-00

.630 ID Plastic Washer (NOT ON 36)

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

23

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

24

Bad Boy 022-4040-00

23x9-12 Reaper Turf Tire & Wheel Assembly

$341.99

$

Usually ships in 4-7 days

0

25

Bad Boy 022-4041-00

21/7x10 Reaper Tire-36 Revolt

$189.99

$

Usually ships in 4-7 days

0

26

Bad Boy 024-1200-00

45 degree fitting

$21.99

$

Usually ships in 4-7 days

0

27

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

28

Bad Boy 025-2004-00

ACS Spacer 3/4x3/8x1/2

$16.99

$

Usually ships in 4-7 days

0

29

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw (NOT ON 36)

$4.99

$

In Stock, only 2 left!

0

30

Bad Boy 026-0093-00

Stand On Control Arm Plate

$

$

Not available

31

Bad Boy 028-0071-00

2019 Stand On Neutral Rod

$31.99

$

Usually ships in 4-7 days

0

32

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

33

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

34

Bad Boy 035-0006-19

2019 Stand On Drive Push Rod Assembly

$49.99

$

Usually ships in 4-7 days

0

35

Bad Boy 039-0151-00

2020 36 Brake Bracket

$15.99

$

Usually ships in 0 days

0

36

Bad Boy 039-0212-00

Brake Bracket

$27.99

$

Usually ships in 4-7 days

0

37

Bad Boy 039-6945-09

2019 Stand On Idler Assembly (NOT ON 36)

$62.99

$

Usually ships in 4-7 days

0

38

Bad Boy 041-8000-00

2019 Renegade Pump Belt (36" ONLY)

$85.99

$

In Stock, Qty 9

0

39

Bad Boy 041-8052-00

2019 Stand On Pump Belt (Timken# 47-2827)

$85.99

$

In Stock, only 3 left!

0

40

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

41

Bad Boy 050-2095-00

Right ZT Transaxle

$

$

Not available

42

Bad Boy 050-2096-00

Left ZT Transaxle

$

$

Not available

43

Bad Boy 050-6000-00

Left 3400 IZT

$

$

Not available

44

Bad Boy 050-6001-00

Right 3400 IZT

$

$

Not available

45

Bad Boy 064-3000-00

Brake Cable

$33.99

$

In Stock, Qty 9

0

46

Bad Boy 070-5220-19

2019 Stand On Frame Weldment

$854.99

$

Usually ships in 4-7 days

0

47

Bad Boy 070-5221-20

2020 36 Stand On Frame Weldment

$

$

Not available
