Revolt - Bad Boy Stand-On Mower (2020) REAR ASSEMBLY Parts Diagram

Stand-On Mower

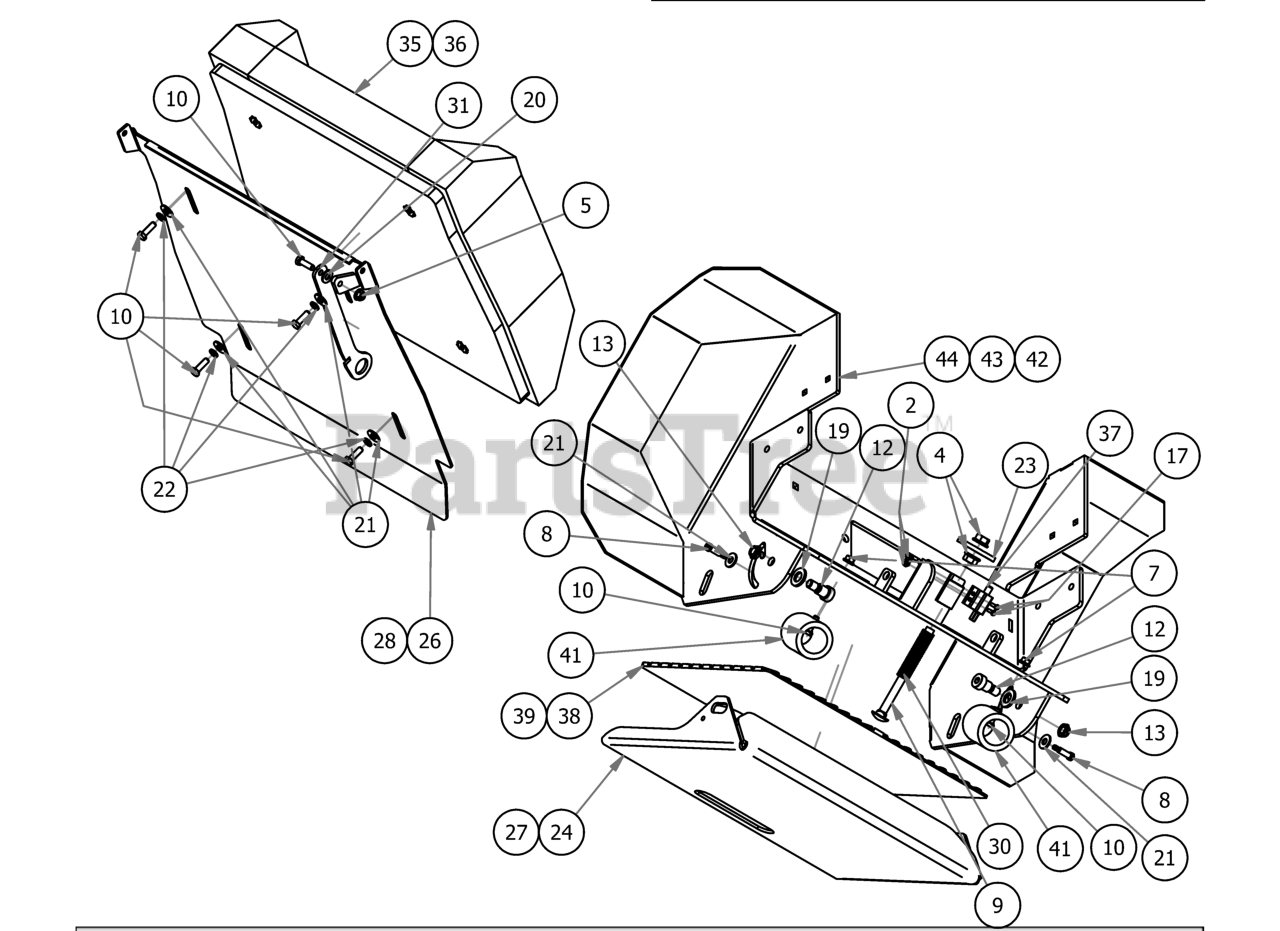

REAR ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-0057-00

3326 Wellnut (1/4-20 x 5/18")

$4.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zin

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 013-8073-00

1/4-20 Nylon Insert Locknut Zi

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 013-9002-00

5/16-18 Hex Flange Nuts Zinc w

$0.99

$

In Stock, Qty 10

0

8

Bad Boy 018-0059-00

5/16" x 7/8" Socket Head Shoulder Bolt

$4.99

$

In Stock, only 4 left!

0

9

Bad Boy 018-0069-00

1/2-13 x 6 Carriage Bolt, Grade 2

$38.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-2007-00

5/16-18 X 1 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, only 1 left!

0

11

Bad Boy 018-3000-00

3/8"-16 x 2" Gr 5 Hex Bolt

$1.49

$

In Stock, Qty 8

0

12

Bad Boy 018-3001-00

5/8'' x 5/8'' Shoulder Bolt

$16.99

$

In Stock, Qty 11

0

13

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

14

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

15

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

16

Bad Boy 018-5043-00

3/8-16 X 1-1/4 Carriage Bolt

$1.49

$

In Stock, Qty 10

0

17

Bad Boy 018-5200-00

10-24 X 5/8 BS C/S 18-8 SS

$0.99

$

In Stock, Qty 5

0

18

Bad Boy 018-8052-00

1/4-20 X 3/4 GR 5 Hex Bolts

$0.99

$

In Stock, only 3 left!

0

19

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

20

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

21

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

23

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

24

Bad Boy 026-0062-00

2019 Stand-On Platform

$37.99

$

Usually ships in 4-7 days

0

25

Bad Boy 026-0063-00

2019 Stand On Access Panel

$37.99

$

Usually ships in 4-7 days

0

26

Bad Boy 026-0096-00

2019 Stand On Pad Plate Weldment

$105.99

$

Usually ships in 4-7 days

0

27

Bad Boy 026-0158-00

2020 36" Stand-On Platform Plate

$118.99

$

Usually ships in 4-7 days

0

28

Bad Boy 026-0159-00

2020 36 Stand On Pad Plate Weldment

$79.99

$

Usually ships in 4-7 days

0

29

Bad Boy 030-0015-00

1/4"-20 x 3/4" Knurled Thumb Screw

$17.99

$

Usually ships in 4-7 days

0

30

Bad Boy 034-1001-00

Rider Presence Spring 9657K145

$13.99

$

Usually ships in 4-7 days

0

31

Bad Boy 039-0082-00

2019 Stand On Operator Pad Kickstand

$30.99

$

Usually ships in 4-7 days

0

32

Bad Boy 055-8021-75

Outlaw Throttle Cable

$30.99

$

In Stock, Qty 12

0

33

Bad Boy 070-5220-19

2019 Stand On Frame Weldment

$854.99

$

Usually ships in 4-7 days

0

34

Bad Boy 070-5221-20

2020 36 Stand On Frame Weldment

$

$

Not available

35

Bad Boy 071-6004-00

2019 Stand-On Platform Pad

$216.99

$

Usually ships in 4-7 days

0

36

Bad Boy 071-6006-00

2020 36" Stand-On Platform Pad

$164.99

$

Usually ships in 4-7 days

0

37

Bad Boy 077-0002-00

safety Switch

$24.99

$

In Stock, only 2 left!

0

38

Bad Boy 081-3001-00

2019 Stand On Mat

$60.99

$

Usually ships in 4-7 days

0

39

Bad Boy 081-3002-00

2020 36 Stand On Mat

$68.99

$

Usually ships in 4-7 days

0

40

Bad Boy 086-0091-00

2019 Revolt Wiring Harness

$414.99

$

Usually ships in 4-7 days

0

41

Bad Boy 087-0003-00

GBR-647 Miner Elastomer

$90.99

$

In Stock, only 4 left!

0

42

Bad Boy 201-1118-20

Stand On Platform Support_61 weldment

$238.99

$

Usually ships in 4-7 days

0

43

Bad Boy 201-1119-20

2020 36" Stand On Platform Support weldment

$170.99

$

Usually ships in 0 days

0

44

Bad Boy 201-1120-19

2019 Stand On Platform Support weldment

$210.99

$

Usually ships in 4-7 days

0
