Revolt - Bad Boy Stand-On Mower (2020) FRONT END Parts Diagram

Stand-On Mower

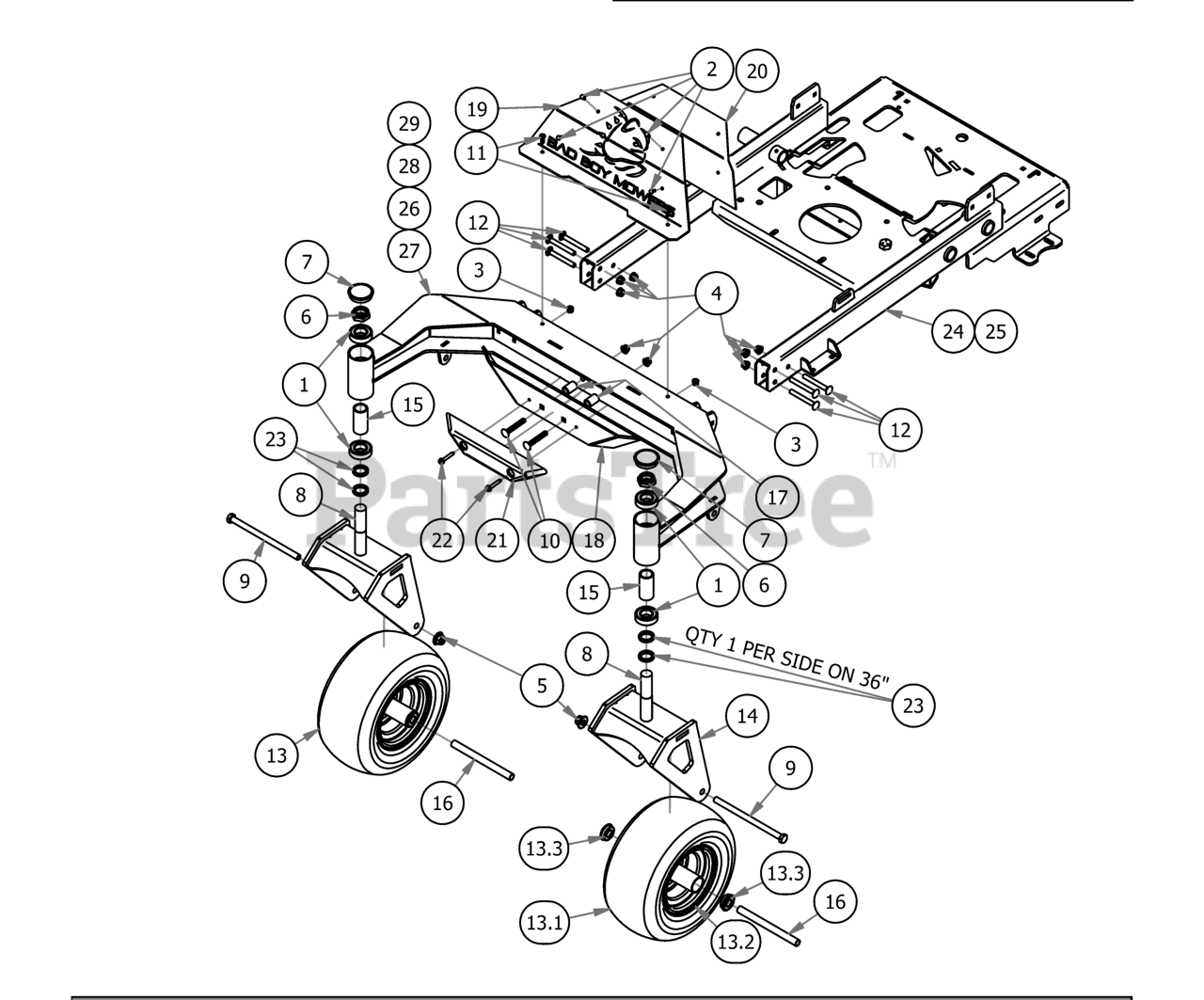

FRONT END Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-0026-00

3/16 Rivet for .126-.25 THK

$3.49

$

Usually ships in 4-7 days

0

3

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

7

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

8

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-0040-00

1/2" x 8 1/2 GR 5 Hex Bolt

$7.49

$

In Stock, Qty 15

0

10

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

11

Bad Boy 018-0058-00

1/4"-20 Thread, 3/4" Long

$

$

Currently unavailable

12

Bad Boy 018-0072-00

3/8-16 X 3 CARRIAGE BOLT ZINC GR5

$2.49

$

Usually ships in 4-7 days

0

13

Bad Boy 022-2017-00

13x6.5-6 Black Tire and Wheel Assembly

$100.99

$

In Stock, Qty 13

0

14

Bad Boy 023-1010-00

2019 Stand-on Front Fork Weldment

$166.99

$

In Stock, only 4 left!

0

15

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

16

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

17

Bad Boy 025-5337-00

SPACER

$4.99

$

In Stock, only 2 left!

0

18

Bad Boy 026-0049-00

2019 Stand On Front Bumper Plate

$28.99

$

Usually ships in 4-7 days

0

19

Bad Boy 026-0084-00

2019 Stand On Exhaust Shield

$14.99

$

Usually ships in 4-7 days

0

20

Bad Boy 026-0085-00

2019 Stand On Exhaust Backer Plate

$17.99

$

Usually ships in 4-7 days

0

21

Bad Boy 029-7040-00

Bumper EZT

$33.99

$

Usually ships in 4-7 days

0

22

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

24

Bad Boy 070-5220-19

2019 Stand On Frame Weldment

$854.99

$

Usually ships in 4-7 days

0

25

Bad Boy 070-5221-20

2020 36 Stand On Frame Weldment

$

$

Not available

26

Bad Boy 070-9036-20

2020 36 Stand-On Front End Weldment

$

$

Not available

27

Bad Boy 070-9048-19

2019 Stand-On 48 Front End Weldment

$

$

Not available

28

Bad Boy 070-9054-19

2019 Stand-On 54 Front End Weldment

$152.99

$

Usually ships in 4-7 days

0

29

Bad Boy 070-9061-20

Stand-On 61 Front End Weldment

$148.99

$

Usually ships in 0 days

0

13.1

Bad Boy 022-5347-00

13 x 6.50 - 6 Tire

$102.99

$

In Stock, only 2 left!

0

13.2

Bad Boy 022-7007-00

Front Tire Rim

$60.99

$

Usually ships in 4-7 days

0

13.3

Bad Boy 022-7009-00

Ball Bearing w/Retainer, 99502H-NR, .625 Bore x 1.375 OD x .4375 Width

$14.99

$

In Stock, Qty 20+

0
