Revolt - Bad Boy Stand-On Mower (2020) ENGINE - KAWASAKI FX-850 Parts Diagram

Stand-On Mower

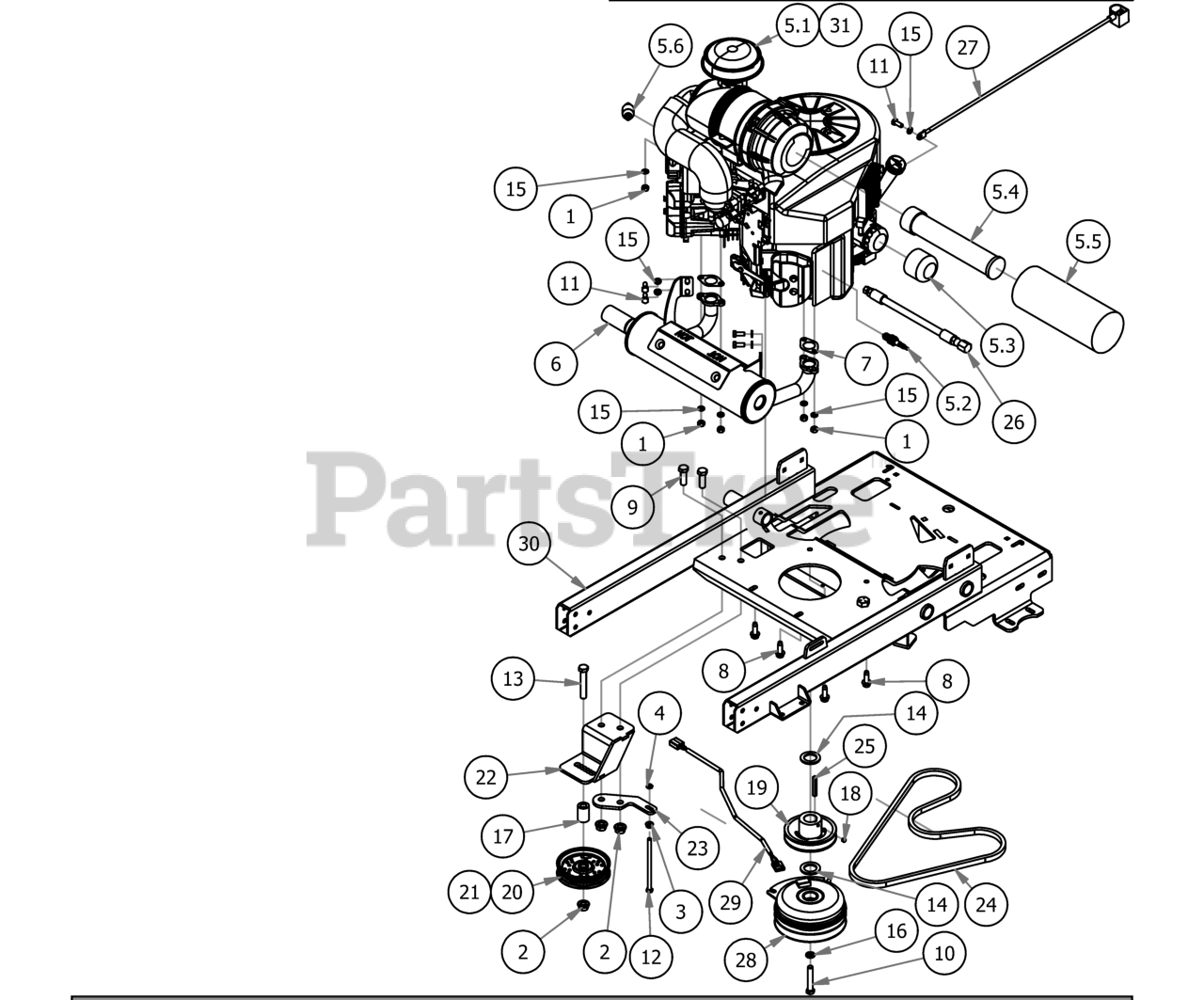

ENGINE - KAWASAKI FX-850 Parts Diagram

  • Title

1

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

4

Bad Boy 013-9005-00

5/16-18 NYLON INSERT JAM LOCKNUT ZINC

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 015-0031-00

Kawasaki FX850 Engine

$3414.99

$

Usually ships in 4-7 days

0

6

Bad Boy 015-1022-00

Revolt Kawasaki FX850 Exhaust

$186.99

$

Usually ships in 4-7 days

0

7

Bad Boy 015-2709-00

Exhaust Gasket

$8.49

$

In Stock, Qty 5

0

8

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS

$1.99

$

In Stock, Qty 11

0

9

Bad Boy 018-5006-00

1/2-13 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-5300-00

7/16-20 X 2-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$1.49

$

In Stock, only 3 left!

0

11

Bad Boy 018-5321-00

M8-1.25 X 20MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$1.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-5350-00

5/16-18 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 2 left!

0

13

Bad Boy 018-7016-00

1/2-13 X 3 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

14

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

15

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

16

Bad Boy 019-8053-00

7/16 SPLIT LOCKWASHER (GR.8) ZINC YELLOW

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

18

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

20

Bad Boy 033-6001-00

4 3/4 Idler Pulley - ABFI-76 (54" Deck Only)

$33.99

$

In Stock, Qty 20+

0

21

Bad Boy 033-7201-00

5 3/4 Idler Pulley-Don Dye (61" Deck Only)

$37.99

$

In Stock, Qty 20+

0

22

Bad Boy 039-0089-00

Idler Pulley Bracket Weldment

$30.99

$

Usually ships in 4-7 days

0

23

Bad Boy 039-0119-00

2019 Stand On Clutch Stop Bracket

$10.99

$

Usually ships in 4-7 days

0

24

Bad Boy 041-8052-00

2019 Stand On Pump Belt (Timken# 47-2827)

$85.99

$

In Stock, only 3 left!

0

25

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

26

Bad Boy 051-5407-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 2 left!

0

27

Bad Boy 064-0030-00

24" Black Ground Cable

$19.99

$

Usually ships in 4-7 days

0

28

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

29

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

30

Bad Boy 070-5220-19

2019 Stand On Frame Weldment

$854.99

$

Usually ships in 4-7 days

0

31

Bad Boy 086-9002-19

Kawasaki Harness Adapter

$21.99

$

Usually ships in 4-7 days

0

5.1

Bad Boy 015-0031-00

Kawasaki Engine FX-850-V-CS09R

$3414.99

$

Usually ships in 4-7 days

0

5.2

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

5.3

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

5.4

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0

5.5

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

5.6

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0
