Revolt - Bad Boy Stand-On Mower (2020) DECK SUB-ASSEMBLIES Parts Diagram

Stand-On Mower

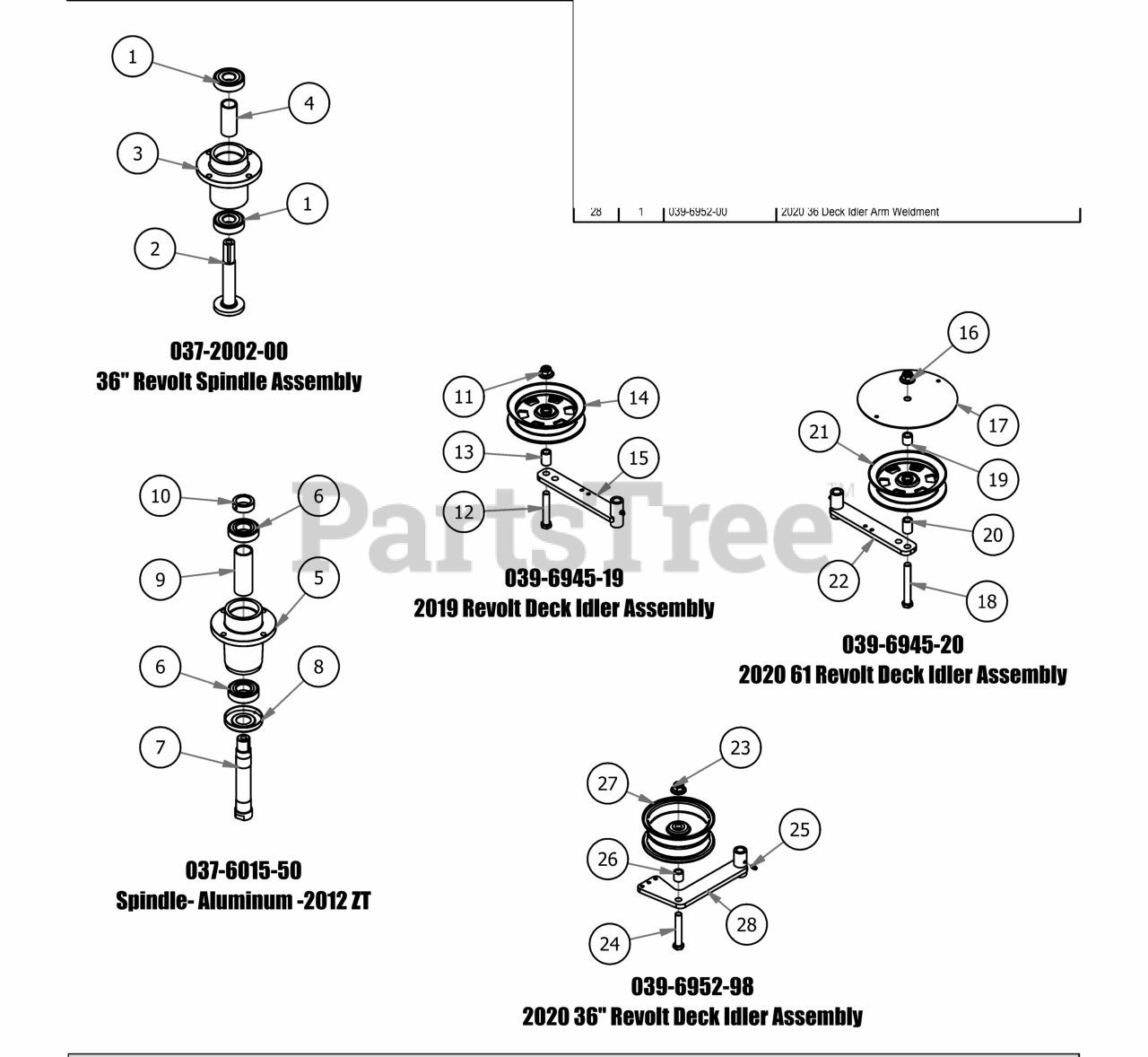

DECK SUB-ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 037-6024-00

Spindle Bearing

$36.99

$

In Stock, Qty 20+

0

2

Bad Boy 037-6025-01

36'' Revolt Spindle

$77.99

$

Usually ships in 4-7 days

0

3

Bad Boy 037-6027-00

Spindle Housing

$105.99

$

Usually ships in 4-7 days

0

4

Bad Boy 037-6028-00

Spindle Spacer-Component

$15.99

$

Usually ships in 4-7 days

0

5

Bad Boy 037-6017-50

Aluminum Spindle Housing -2010

$136.99

$

Usually ships in 4-7 days

0

6

Bad Boy 037-6023-00

Spindle Bearing, 2004 and up

$

$

Not available

7

Bad Boy 037-6026-00

Short Spindle Shaft w/Locking

$89.99

$

In Stock, Qty 12

0

8

Bad Boy 037-8002-00

Dust Cover

$12.99

$

In Stock, Qty 8

0

9

Bad Boy 037-8050-00

Tube Spacer for Spindle Shaft

$9.49

$

In Stock, only 2 left!

0

10

Bad Boy 037-9050-00

Collar Spacer - Top of Spindle

$7.99

$

In Stock, Qty 6

0

11

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

12

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

Usually ships in 4-7 days

0

13

Bad Boy 025-5337-00

SPACER

$4.99

$

In Stock, only 2 left!

0

14

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

15

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

16

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 014-4005-00

61" Revolt Idler Pulley Cover

$22.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-0051-00

1/2-13 x 3.75 GR 5 Hex Bolt Zinc

$1.49

$

Usually ships in 4-7 days

0

19

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 15

0

20

Bad Boy 025-5337-00

SPACER

$4.99

$

In Stock, only 2 left!

0

21

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

22

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

23

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

24

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

Usually ships in 4-7 days

0

25

Bad Boy 024-0001-00

1/4-28 Grease Fitting

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 15

0

27

Bad Boy 033-5000-00

5 3/4" Deck Idler Pulley

$60.99

$

In Stock, Qty 5

0

28

Bad Boy 039-6952-00

2020 36 Deck Idler Arm Weldment

$11.99

$

Usually ships in 4-7 days

0
