Revolt - Bad Boy Stand-On Mower (2020) 54" DECK ASSEMBLY Parts Diagram

Stand-On Mower

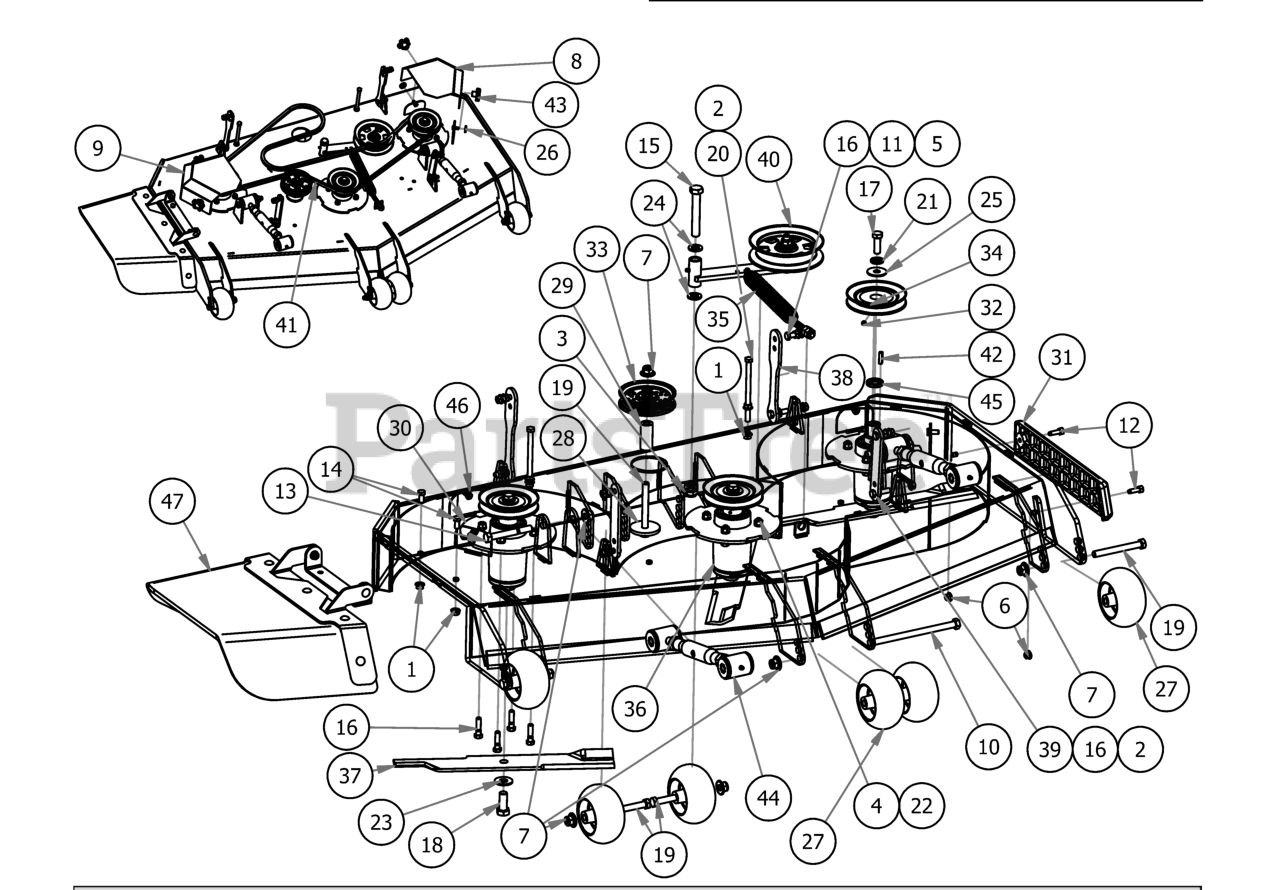

54" DECK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

5

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

6

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

7

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 014-4811-00

2019 Stand On 54" Pulley Cover Trim

$17.99

$

Usually ships in 4-7 days

0

9

Bad Boy 014-4812-00

2019 Stand On 54" Pulley Cover Discharge

$28.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-0046-00

1/2-13 x 8 Hex Bolt Grade 5

$4.49

$

In Stock, Qty 5

0

11

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, Qty 6

0

12

Bad Boy 018-2007-00

5/16-18 x 1 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, only 1 left!

0

13

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, Qty 6

0

14

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, Qty 8

0

16

Bad Boy 018-6012-00

3/8 x 1 1/2 Bolt

$0.99

$

In Stock, Qty 20+

0

17

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 20+

0

18

Bad Boy 018-6020-00

5/8 x 1 1/2 Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

19

Bad Boy 018-7050-00

1/2-13 X 4-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, Qty 14

0

20

Bad Boy 018-7060-00

3/8-16 x 5 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

21

Bad Boy 019-5007-00

1/2" Lock Washer Zinc

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

23

Bad Boy 019-5038-00

5/8'' Flat Washer

$1.99

$

In Stock, Qty 20+

0

24

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

25

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

26

Bad Boy 019-6050-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK

$0.99

$

In Stock, Qty 6

0

27

Bad Boy 022-1001-00

2019 Deck Wheel

$18.99

$

In Stock, Qty 20+

0

28

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

29

Bad Boy 025-0032-00

2019 Revolt Stationary Idle Spacer

$8.99

$

Usually ships in 4-7 days

0

30

Bad Boy 026-0025-00

Deck Spindle Support Plate

$15.99

$

In Stock, only 2 left!

0

31

Bad Boy 029-7036-00

REVISED TRIM BUMPER_20180226

$24.99

$

In Stock, only 3 left!

0

32

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

33

Bad Boy 033-6001-00

4 3/4 Idler Pulley - ABFI-76

$33.99

$

In Stock, Qty 20+

0

34

Bad Boy 033-6003-00

5" Spindle Deck Pulley

$45.99

$

In Stock, Qty 9

0

35

Bad Boy 034-2030-00

2019 Outlaw Gen2 Deck Spring

$33.99

$

In Stock, Qty 12

0

36

Bad Boy 037-6015-50

Spindle Assembly

$227.99

$

In Stock, Qty 20+

0

37

Bad Boy 038-0001-00

54" Deck Fusion Blade For Outlaw

$24.99

$

In Stock, Qty 20+

0

38

Bad Boy 039-2128-00

2019 Stand-On Rear Deck Hanger

$15.99

$

Usually ships in 4-7 days

0

39

Bad Boy 039-2129-00

2019 Stand on deck hanger_front

$17.99

$

Usually ships in 4-7 days

0

40

Bad Boy 039-6945-19

2019 Revolt Deck Idler Assembly

$75.99

$

Usually ships in 4-7 days

0

41

Bad Boy 041-0120-00

42 inch Deck Belt- B120

$94.99

$

In Stock, Qty 10

0

42

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 20+

0

43

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 18

0

44

Bad Boy 048-7000-00

Turnbuckle

$

$

Not available

45

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

46

Bad Boy 060-1154-19

2019 Stand On 54" Sloped Deck Welded Assemly

$

$

Not available

47

Bad Boy 210-7000-98

2019 Outlaw Gen2 Chute Assembly

$181.99

$

In Stock, only 2 left!

0
