Revolt - Bad Boy Stand-On Mower (2019) TRANSAXLE ASSEMBLY (CONT.) Parts Diagram
Stand-On Mower

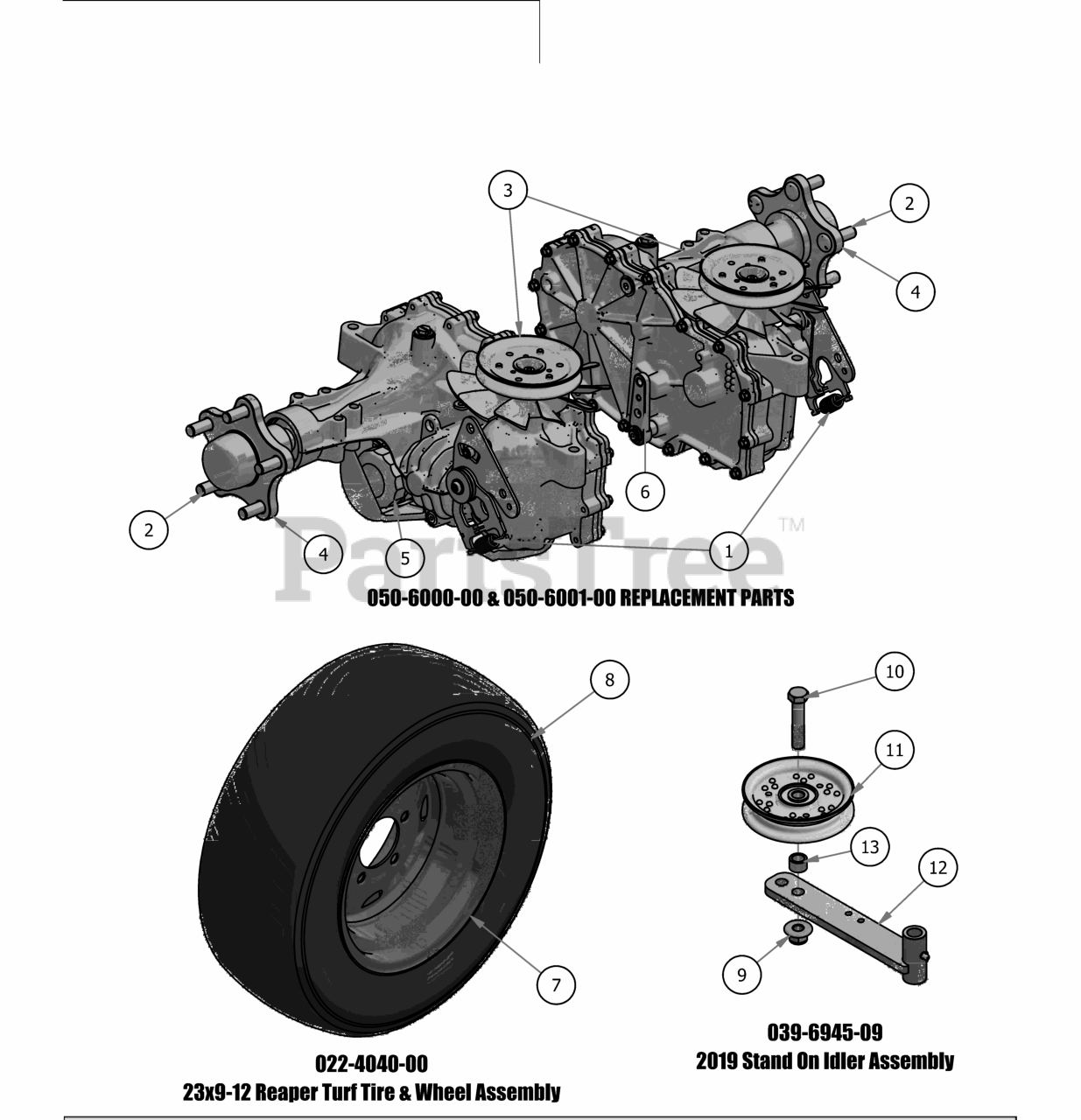

TRANSAXLE ASSEMBLY (CONT.) Parts Diagram
Bad Boy 034-1050-00
Transaxle Spring
$7.99
$
Usually ships in 4-7 days
Bad Boy 050-2012-00
Transaxle Wheel Studs
$5.99
$
In Stock, Qty 20+
Bad Boy 050-2072-00
Fan/Pulley Kit
$68.99
$
Usually ships in 4-7 days
Bad Boy 050-2077-00
5 Bolt Hub Kit
$109.99
$
Usually ships in 4-7 days
Bad Boy 063-1050-00
Transaxle filter
$24.99
$
In Stock, Qty 20+
Bad Boy 092-8000-00
Transaxle Brake Lever
$22.99
$
Usually ships in 4-7 days
Bad Boy 022-3011-00
12x7" Black Wheel
$125.99
$
Usually ships in 4-7 days
Bad Boy 022-4035-00
23x9-12 Reaper Turf Tire Only
$196.99
$
Usually ships in 4-7 days
Bad Boy 013-8050-00
1/2-13 Nylon Flange Nut
$1.99
$
In Stock, Qty 20+
Bad Boy 018-6036-00
1/2" x 2 1/2" Hex Bolt
$1.99
$
In Stock, only 4 left!
Bad Boy 033-6001-00
4 3/4 Idler Pulley - ABFI-76
$33.99
$
In Stock, Qty 20+
Bad Boy 039-6945-00
Deck Idler
$43.99
$
In Stock, only 3 left!
Bad Boy 025-7036-00
1/2 x 1/2 Spacer
$4.99
$
In Stock, only 2 left!
