Revolt - Bad Boy Stand-On Mower (2019) TRANSAXLE ASSEMBLY Parts Diagram

Stand-On Mower

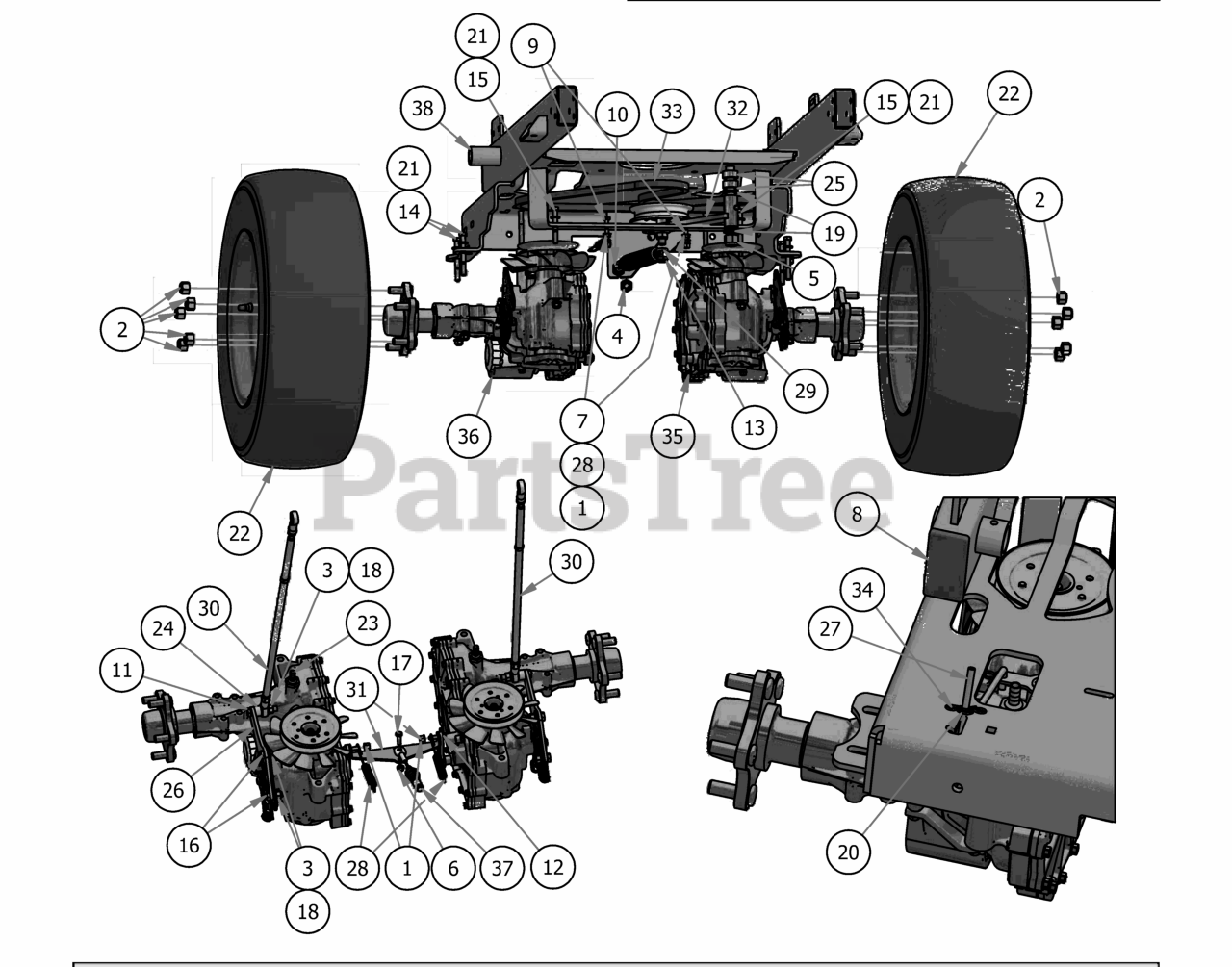

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

3

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0011-00

1/4-20 x 2 Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, Qty 6

0

11

Bad Boy 018-3000-00

3/8"-16 x 2" Gr 5 Hex Bolt

$1.49

$

In Stock, Qty 8

0

12

Bad Boy 018-4007-00

1/4-20 x 1 GR 5 hex bolt zinc

$1.49

$

Usually ships in 4-7 days

0

13

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 11

0

14

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

17

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 3 left!

0

18

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

19

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

20

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

21

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 022-4040-00

23x9-12 Reaper Turf Tire & Wheel Assembly

$341.99

$

Usually ships in 4-7 days

0

23

Bad Boy 024-1200-00

45 degree fitting

$21.99

$

Usually ships in 4-7 days

0

24

Bad Boy 025-2004-00

ACS Spacer 3/4x3/8x1/2

$16.99

$

Usually ships in 4-7 days

0

25

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw

$4.99

$

In Stock, only 2 left!

0

26

Bad Boy 026-0093-00

Stand On Control Arm Plate

$

$

Not available

27

Bad Boy 028-0071-00

2019 Stand On Neutral Rod

$31.99

$

Usually ships in 4-7 days

0

28

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

29

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

30

Bad Boy 035-0006-19

2019 Stand On Drive Push Rod Assembly

$49.99

$

Usually ships in 4-7 days

0

31

Bad Boy 039-0212-00

Brake Bracket

$27.99

$

Usually ships in 4-7 days

0

32

Bad Boy 039-6945-09

2019 Stand On Idler Assembly

$62.99

$

Usually ships in 4-7 days

0

33

Bad Boy 041-8052-00

2019 Stand On Pump Belt (Timken# 47-2827)

$85.99

$

In Stock, only 3 left!

0

34

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

35

Bad Boy 050-6000-00

Left 3400 IZT

$

$

Not available

36

Bad Boy 050-6001-00

Right 3400 IZT

$

$

Not available

37

Bad Boy 064-3000-00

Brake Cable

$33.99

$

In Stock, Qty 9

0

38

Bad Boy 070-5220-19

2019 Stand On Frame Weldment

$854.99

$

Usually ships in 4-7 days

0
