Revolt - Bad Boy Stand-On Mower (2019) FRONT END Parts Diagram

Stand-On Mower

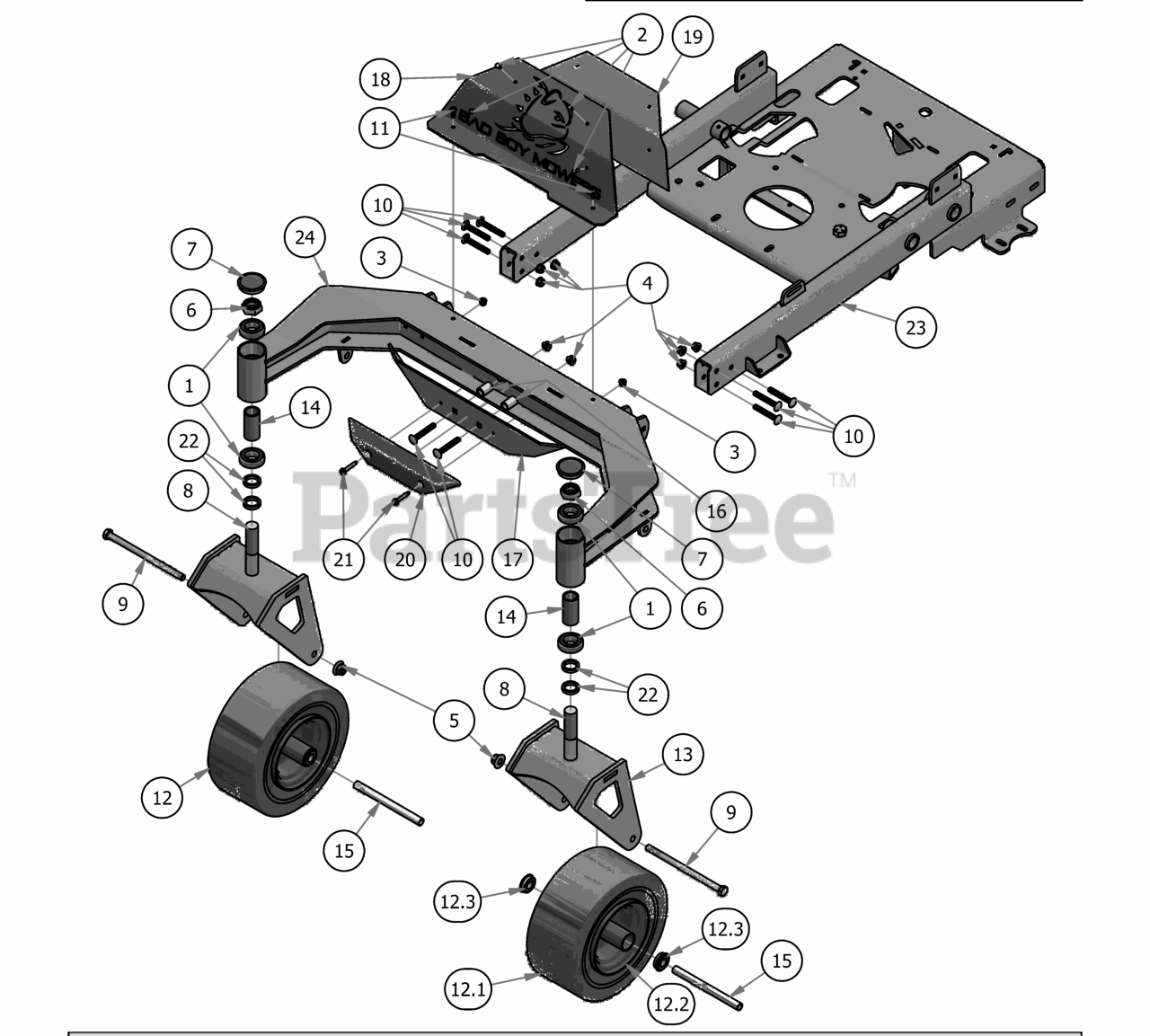

FRONT END Parts Diagram

  • Title

1

Bad Boy 010-1050-00

Caster Bearing 2016 - 1641 Bearing

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-0026-00

3/16 Rivet for .126-.25 THK

$3.49

$

Usually ships in 4-7 days

0

3

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 8

0

7

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

8

Bad Boy 018-0005-00

1-14 x 5 Hex Bolt Grade 8 Zinc Yellow

$7.99

$

In Stock, only 4 left!

0

9

Bad Boy 018-0040-00

1/2" x 8 1/2 GR 5 Hex Bolt

$7.49

$

In Stock, Qty 15

0

10

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

11

Bad Boy 018-0058-00

1/4"-20 Thread, 3/4" Long

$

$

Currently unavailable

12

Bad Boy 022-2017-00

Tire and Wheel Assembly

$100.99

$

In Stock, Qty 13

0

13

Bad Boy 023-1010-00

2019 Stand-on Front Fork Weldment

$166.99

$

In Stock, only 4 left!

0

14

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

15

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

16

Bad Boy 025-5337-00

SPACER

$4.99

$

In Stock, only 2 left!

0

17

Bad Boy 026-0049-00

2019 Stand On Front Bumper Plate

$28.99

$

Usually ships in 4-7 days

0

18

Bad Boy 026-0084-00

2019 Stand On Exhaust Shield

$14.99

$

Usually ships in 4-7 days

0

19

Bad Boy 026-0085-00

2019 Stand On Exhaust Backer Plate

$17.99

$

Usually ships in 4-7 days

0

20

Bad Boy 029-7040-00

Bumper EZT

$33.99

$

Usually ships in 4-7 days

0

21

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 5

0

23

Bad Boy 070-5220-19

2019 Stand On Frame Weldment

$854.99

$

Usually ships in 4-7 days

0

24

Bad Boy 070-9048-19

2019 Stand-On 48 Front End Weldment

$

$

Not available

12.1

Bad Boy 022-5347-00

13 x 6.50 - 6 Tire

$102.99

$

In Stock, only 2 left!

0

12.2

Bad Boy 022-7007-00

Front Tire Rim

$60.99

$

Usually ships in 4-7 days

0

12.3

Bad Boy 022-7009-00

BEARING WITH RETAINER

$14.99

$

In Stock, Qty 20+

0
