Revolt - Bad Boy Stand-On Mower (2019) DECK HEIGHT LEVER ASSEMBLY Parts Diagram

Stand-On Mower

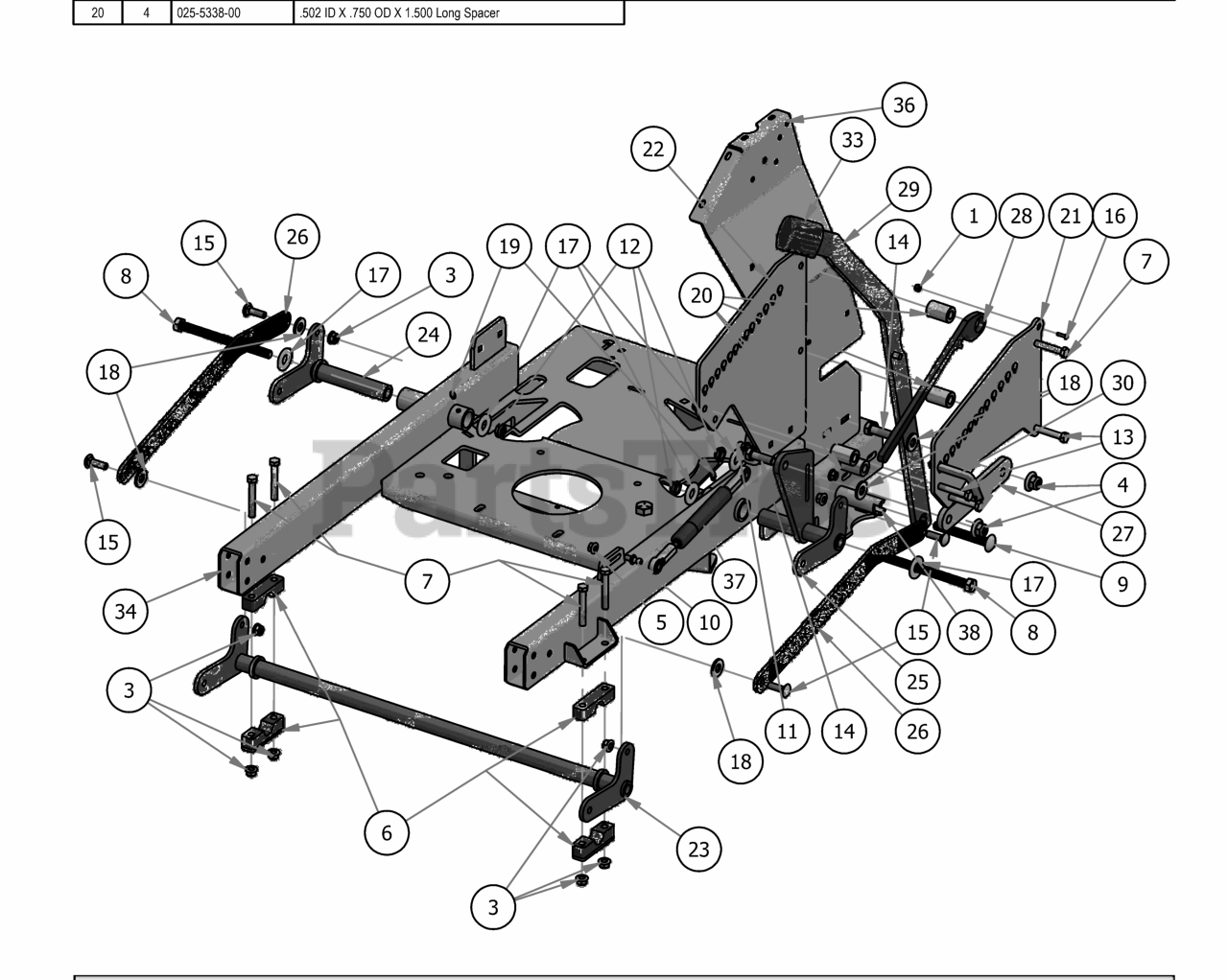

DECK HEIGHT LEVER ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

6

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-0028-00

3/8-16 x 2 1/2" Hex Bolt

$4.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-0038-00

1/2-13 x 6 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0060-00

1/2-13 x 4" Carriage Bolt

$

$

Currently unavailable

10

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

11

Bad Boy 018-2055-00

10mm Damper Ball Stud-XP Linkage

$2.49

$

In Stock, only 4 left!

0

12

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 11

0

13

Bad Boy 018-4700-00

3/8-16x3 grade 5 hex bolt

$1.49

$

Usually ships in 4-7 days

0

14

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

16

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

17

Bad Boy 019-2040-00

1/2" Flat Washer

$1.99

$

Usually ships in 4-7 days

0

18

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

19

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

21

Bad Boy 026-0082-00

2019 Stand On Outer Adjustment Plate

$34.99

$

Usually ships in 0 days

0

22

Bad Boy 026-0083-00

2019 Stand On Inner Adjustment Plate

$

$

Currently unavailable

23

Bad Boy 028-0028-00

2019 Stand On Front Actuator Bar Weldment

$37.99

$

Usually ships in 4-7 days

0

24

Bad Boy 028-0029-00

2019 Stand On Actuator Bar Rear RH

$116.99

$

Usually ships in 4-7 days

0

25

Bad Boy 028-0030-00

2019 Stand On Actuator Bar Rear- LH

$116.99

$

Usually ships in 4-7 days

0

26

Bad Boy 028-0033-00

2019 Stand-on Actuator Linkage

$10.99

$

Usually ships in 4-7 days

0

27

Bad Boy 028-5001-00

2019 Stand On Lever Secondary Linkage

$13.99

$

Usually ships in 4-7 days

0

28

Bad Boy 031-0093-00

2019 Stand on deck lever lock

$25.99

$

Usually ships in 4-7 days

0

29

Bad Boy 031-7146-00

2019 Stand On Lift Lever Weldment

$105.99

$

Usually ships in 4-7 days

0

30

Bad Boy 040-4001-00

Height Adj Pin

$15.99

$

Usually ships in 4-7 days

0

33

Bad Boy 069-4012-00

2019 Stand On Lift Grip

$15.99

$

Usually ships in 4-7 days

0

34

Bad Boy 070-5220-19

2019 Stand On Frame Weldment

$854.99

$

Usually ships in 4-7 days

0

36

Bad Boy 079-4111-00

2019 Podium Panel Left

$39.99

$

Usually ships in 4-7 days

0

37

Bad Boy 087-5400-00

200 lb Gas Spring- 54" Deck outlaw

$66.99

$

Usually ships in 4-7 days

0

38

Bad Boy 250-2121-00

Lever Pivot Actuator Rod

$

$

Currently unavailable
