Revolt - Bad Boy 48", 54", 61" Stand-On Mower (2025) Revolt FX 730 Parts Diagram

48", 54", 61" Stand-On Mower

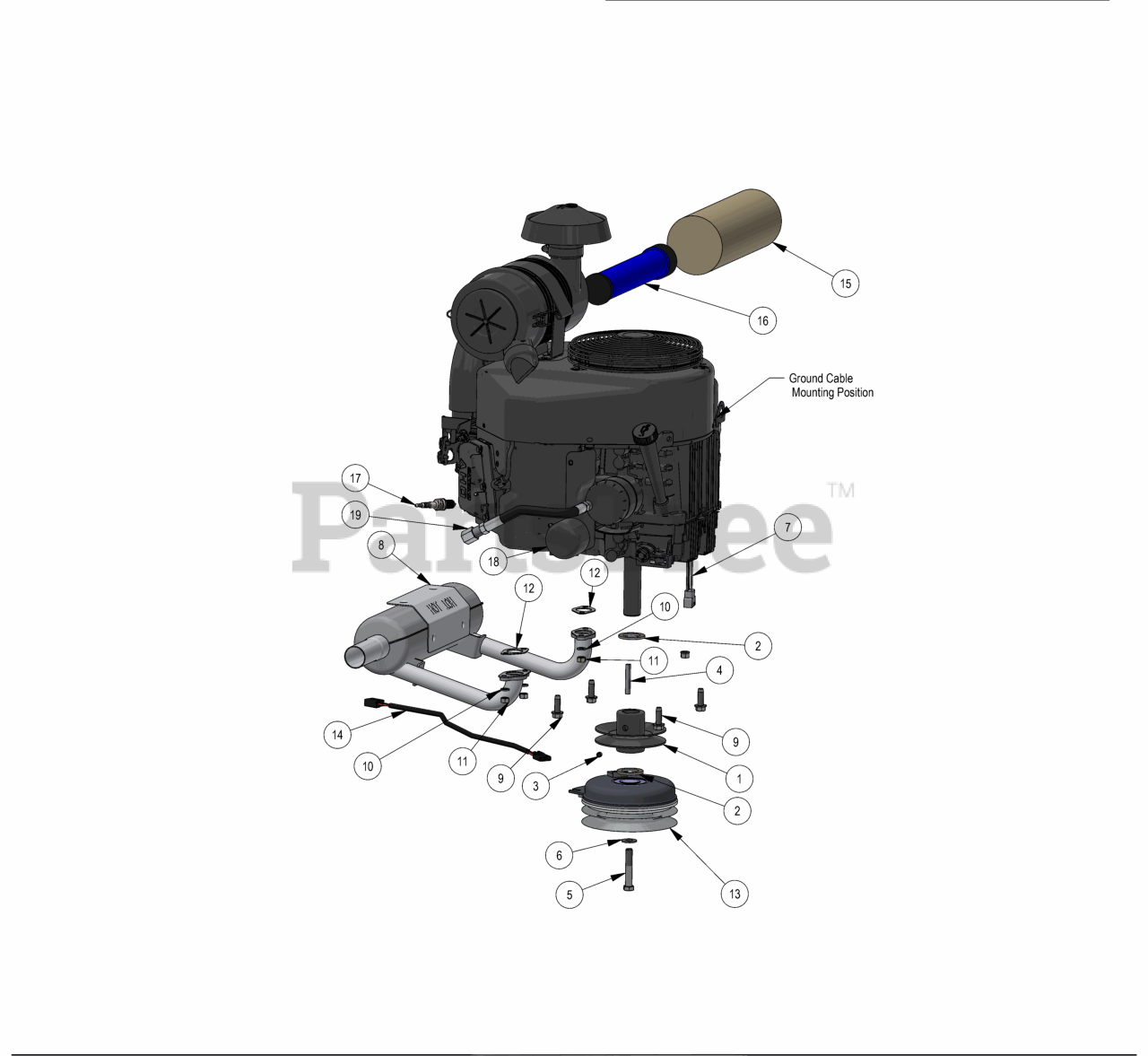

Revolt FX 730 Parts Diagram

1

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

2

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

3

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

5

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$3.99

$

Usually ships in 4-7 days

0

6

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

7

Bad Boy 086-9002-19

2019 Harness Adaptor-Gen2 FX-ALL

$21.99

$

Usually ships in 4-7 days

0

8

Bad Boy 015-0692-00

Exhaust-Stand On-FX691V Kawasaki

$166.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-1075-00

3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

10

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

12

Bad Boy 015-2709-00

Exhaust Gasket

$8.49

$

In Stock, Qty 5

0

13

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

14

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

15

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

16

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0

17

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

18

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

19

Bad Boy 051-5404-00

Oil drain Hose

$45.99

$

In Stock, only 3 left!

0

20

Bad Boy 015-0730-00

Engine FX730

$2962.99

$

Usually ships in 4-7 days

0

21

Bad Boy 015-0730-00

FX-730V

$2962.99

$

Usually ships in 4-7 days

0
