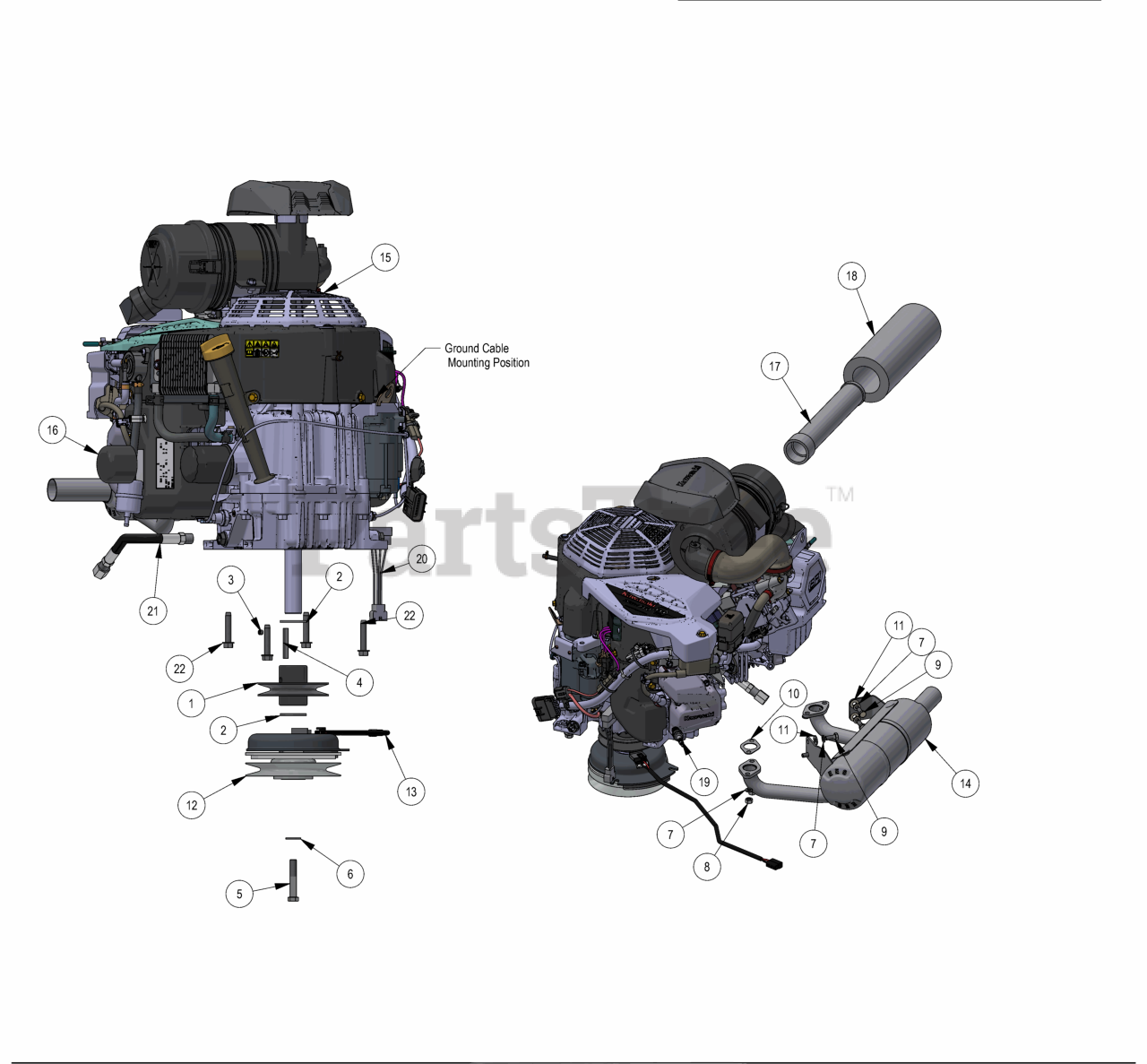

Revolt - Bad Boy 48", 54", 61" Stand-On Mower (2025) Kawasaki EVO Parts Diagram

48", 54", 61" Stand-On Mower

Kawasaki EVO Parts Diagram

  • Title

1

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

2

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

3

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 1 left!

0

5

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$3.99

$

Usually ships in 4-7 days

0

6

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

7

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

9

Bad Boy 018-5321-00

M8-1.25 X 20MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 015-2709-00

Exhaust Gasket

$8.49

$

In Stock, Qty 5

0

11

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

12

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

13

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

14

Bad Boy 015-1031-00

FXEVO Revolt Muffler

$118.99

$

Usually ships in 4-7 days

0

15

Bad Boy 015-0781-00

Kawasaki FX820V EVO

$6839.99

$

Usually ships in 4-7 days

0

16

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

17

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 4 left!

0

18

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 10

0

19

Bad Boy 015-8001-00

Spark Plug

$9.49

$

In Stock, Qty 9

0

20

Bad Boy 086-9016-00

Harness Adaptor for Kawasaki EFI

$125.99

$

Usually ships in 4-7 days

0

21

Bad Boy 051-5404-00

Oil drain Hose

$45.99

$

In Stock, only 3 left!

0

22

Bad Boy 018-0061-00

3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt

$6.49

$

Usually ships in 4-7 days

0
