Revolt - Bad Boy 48", 54", 61" Stand-On Mower (2024) Vanguard 28 EFI Parts Diagram

48", 54", 61" Stand-On Mower

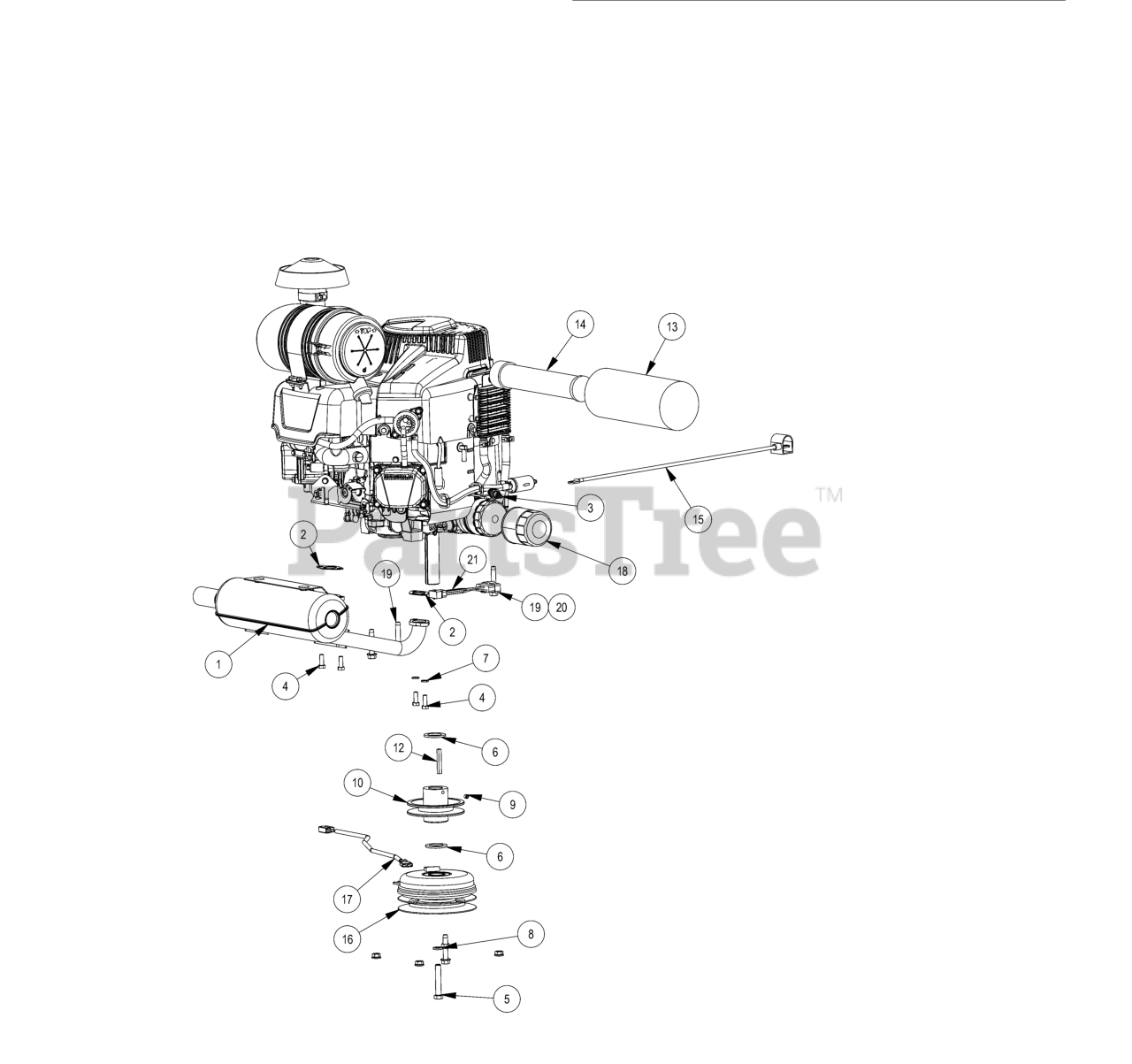

Vanguard 28 EFI Parts Diagram

  • Title

1

Bad Boy 015-1021-00

Briggs 28 EFI Exhaust Revolt

$205.99

$

Usually ships in 4-7 days

0

2

Bad Boy 015-2709-00

Exhaust Gasket

$8.49

$

In Stock, Qty 5

0

3

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

4

Bad Boy 018-0017-00

Torx Bolt-Exhaust

$6.49

$

Usually ships in 4-7 days

0

5

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$3.99

$

Usually ships in 4-7 days

0

6

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

7

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 019-8053-00

7/16 SPLIT LOCKWASHER (GR.8) ZINC YELLOW

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

11

Bad Boy 033-7201-00

5 3/4 Idler Pulley-Don Dye (61" Deck Only)

$37.99

$

In Stock, Qty 20+

0

12

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

13

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

14

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0

15

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

16

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

17

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

18

Bad Boy 063-8018-00

Oil Filter

$22.99

$

In Stock, Qty 19

0

19

Bad Boy 018-0061-00

3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt

$6.49

$

Usually ships in 4-7 days

0

20

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 086-9015-21

2021 28 Briggs EFI Pigtail

$22.99

$

Usually ships in 4-7 days

0
