Revolt - Bad Boy 48", 54", 61" Stand-On Mower (2024) Revolt Transaxle Assembly Parts Diagram

48", 54", 61" Stand-On Mower

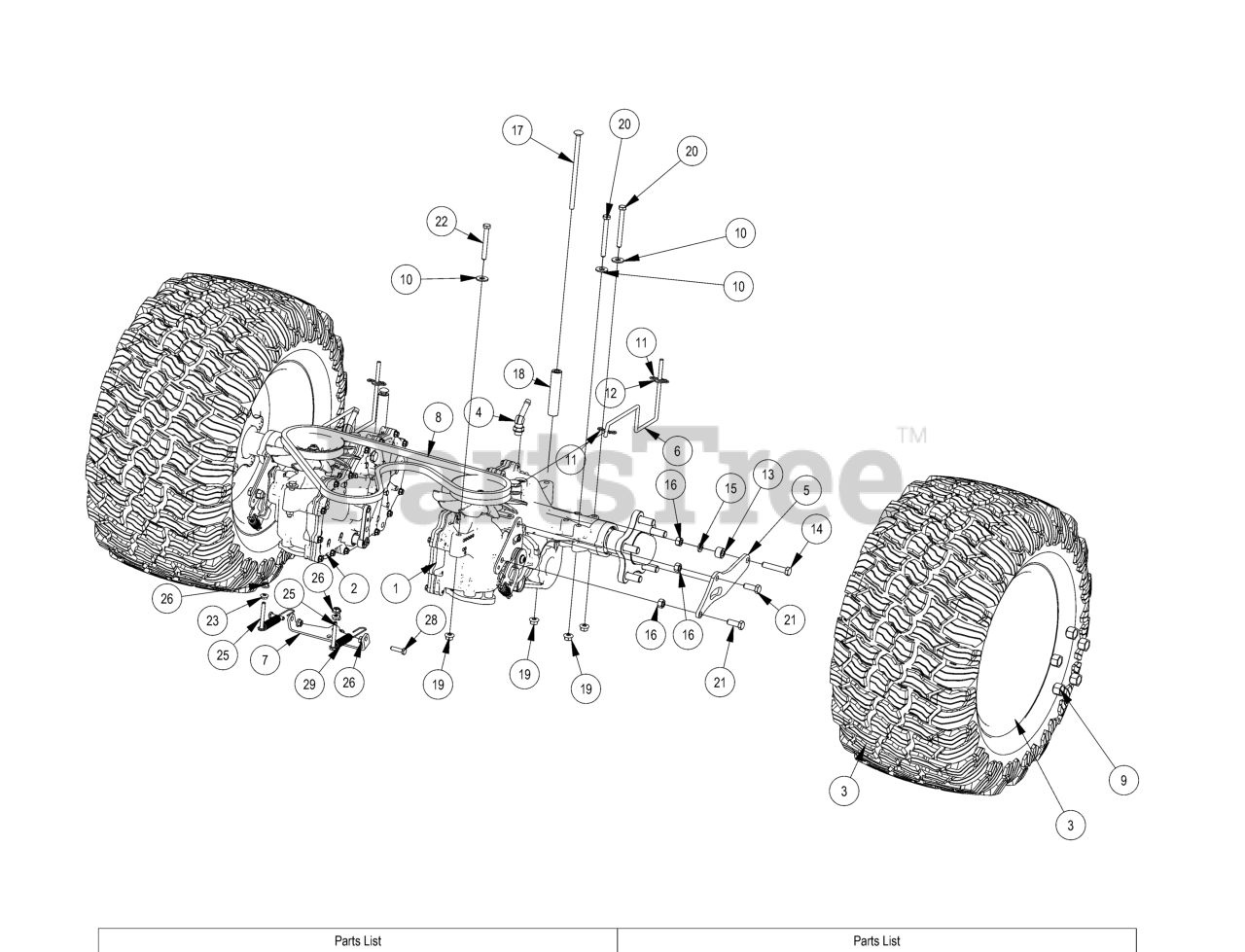

Revolt Transaxle Assembly Parts Diagram

  • Title

1

Bad Boy 050-6000-01

Compact Outlaw/Revolt Transaxle Left 3400

$934.99

$

Usually ships in 4-7 days

0

2

Bad Boy 050-6001-01

Compact Outlaw/Revolt Transaxle Right 3400

$934.99

$

Usually ships in 4-7 days

0

3

Bad Boy 022-4200-00

23x11-12 Reaper Turf Assembly

$331.99

$

Usually ships in 4-7 days

0

4

Bad Boy 024-1200-00

ZT Fitting, 3/8 x 3/8 45 Degree, 4603-6-6

$21.99

$

Usually ships in 4-7 days

0

5

Bad Boy 026-0093-00

Control Arm Plate 2019 Stand On

$

$

Not available

6

Bad Boy 028-0071-00

2019 Stand On Neutral Rod

$31.99

$

Usually ships in 4-7 days

0

7

Bad Boy 039-0212-00

Brake Bracket

$27.99

$

Usually ships in 4-7 days

0

8

Bad Boy 041-8052-00

2019 Stand On Pump Belt (Timken# 47-2827)

$85.99

$

In Stock, only 3 left!

0

9

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

10

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

11

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

13

Bad Boy 025-2004-00

ACS Spacer 3/4x3/8x1/2

$16.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 6

0

15

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 8

0

16

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 018-0056-00

5/16-18 X 6 CARRIAGE BOLT (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

19

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

20

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

22

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

24

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 018-0011-00

1/4-20 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

26

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

27

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

28

Bad Boy 018-4007-00

1/4-20 X 1 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

29

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0
