Revolt - Bad Boy 48", 54", 61" Stand-On Mower (2024) Revolt Fender Assembly Parts Diagram

48", 54", 61" Stand-On Mower

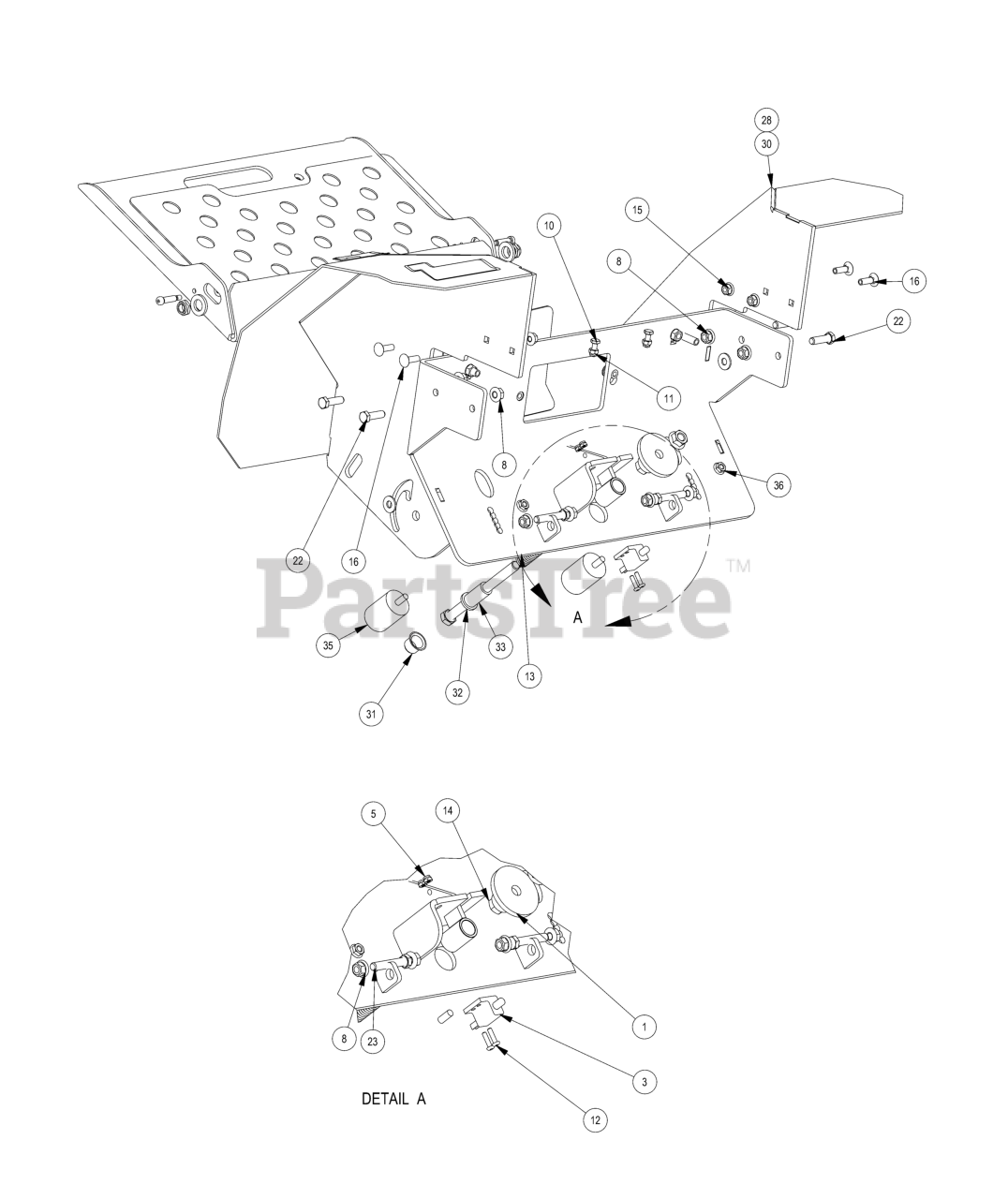

Revolt Fender Assembly Parts Diagram

  • Title

1

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

2

Bad Boy 030-0015-00

1/4"-20 x 3/4" Knurled Thumb Screw

$17.99

$

Usually ships in 4-7 days

0

3

Bad Boy 077-0002-00

safety Switch

$24.99

$

In Stock, only 2 left!

0

4

Bad Boy 026-0063-00

2019 Stand On Access Panel Plate Black Part

$37.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

7

Bad Boy 013-0057-00

3326 Wellnut (1/4-20 x 5/18")

$4.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

10

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

11

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-8057-00

10-24 X 3/4 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 034-1001-00

Rider Presence Spring 9657K145

$13.99

$

Usually ships in 4-7 days

0

14

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

15

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

16

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

17

Bad Boy 018-0059-00

Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"

$4.99

$

In Stock, only 4 left!

0

18

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

19

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

20

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

21

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

22

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

23

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

27

Bad Boy 088-0050-00

Grip Tape for 026-0062-00

$22.99

$

Usually ships in 4-7 days

0

28

Bad Boy 201-1124-00

2023 Platform Support 61 weldment

$

$

Not available

29

Bad Boy 026-0062-23

2023 Platform_2

$205.99

$

Usually ships in 4-7 days

0

30

Bad Boy 201-1125-00

2023 Platform Support 54/48

$170.99

$

Usually ships in 4-7 days

0

31

Bad Boy 013-0029-00

Hex Nut Cap

$5.99

$

In Stock, only 2 left!

0

32

Bad Boy 018-0062-00

1/2-13 X 6 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

33

Bad Boy 032-0006-00

.504 ID X .740 OD X 1.625 LGTH SLEEVE WASHER NYLON

$20.99

$

In Stock, only 3 left!

0

35

Bad Boy 087-0005-00

Revolt Bumper

$68.99

$

In Stock, Qty 5

0

36

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0
